Tile Installation Edmonton: Mosaic Tile in Glenora

Clay Tile, Ditra Waterproofing, and Stencil Surrounds on a Historic Glenora Exterior

Glenora is one of Edmonton’s most historic neighbourhoods, sitting between 124 Street and the river valley west of downtown, with a housing stock that includes some of the city’s most architecturally significant pre-war and inter-war homes. Tile work on a Glenora property has to read as appropriate to the house’s character, which means the design choices that work on a 2010s infill (large-format porcelain, stacked layouts) often look wrong on a 1920s craftsman or a 1930s Tudor. On this Glenora project The Tile Experts ran our first exterior installation: a clay tile on the front steps of a historic home, waterproofed with a Ditra membrane, set in a straight lay with a stencil surround on each step, and finished with Prism Grout.

Why an Exterior Tile Install Is a Different Engineering Problem

An interior bathroom floor lives in a controlled environment: stable temperature, controlled moisture, no UV exposure, no freeze-thaw cycling. An exterior step lives at the opposite end of every one of those variables, which is why an exterior tile install demands an engineering scope that an interior install does not. The temperature cycle: an Edmonton front step lives through a 70 degree Celsius annual range between January cold and July heat, which any tile assembly has to absorb without cracking. The moisture cycle: rain hits the steps directly, snow accumulates on them, and meltwater runs off them; the assembly has to shed water rather than absorb it. The freeze-thaw cycle: any water that pools on the surface or wicks into the assembly will expand on freezing and crack tile, grout, or bond coat. What this means for the install: every layer (membrane, bond coat, tile, grout) has to be specified for exterior, freeze-thaw exposure, and every detail (drainage slope, joint width, edge profile) has to be engineered to keep water moving off the surface rather than into it.

Schluter Ditra as the Waterproofing Layer

The substrate prep started with a Schluter Ditra Membrane bonded to the steps with 253 Gold Laticrete Mortar. Purpose on an exterior install: Ditra is best known as an interior uncoupling membrane, but the same molded polyethylene grid that uncouples interior tile from subfloor movement also creates a controlled drainage layer on an exterior assembly. Any moisture that finds its way past the grout joints sits in the membrane’s cavity structure and weeps out at the step edges rather than wicking into the substrate. Property: the molded polyethylene grid is unaffected by freeze-thaw cycling, which is what an Edmonton exterior demands. Relationship: 253 Gold Laticrete is a polymer-modified thinset rated for exterior bonded waterproofing assemblies, with the freeze-thaw resistance the bond coat needs to keep the membrane mechanically locked to the substrate through every winter. The chemistry choice is what separates an exterior tile install that survives one season from one that survives a decade.

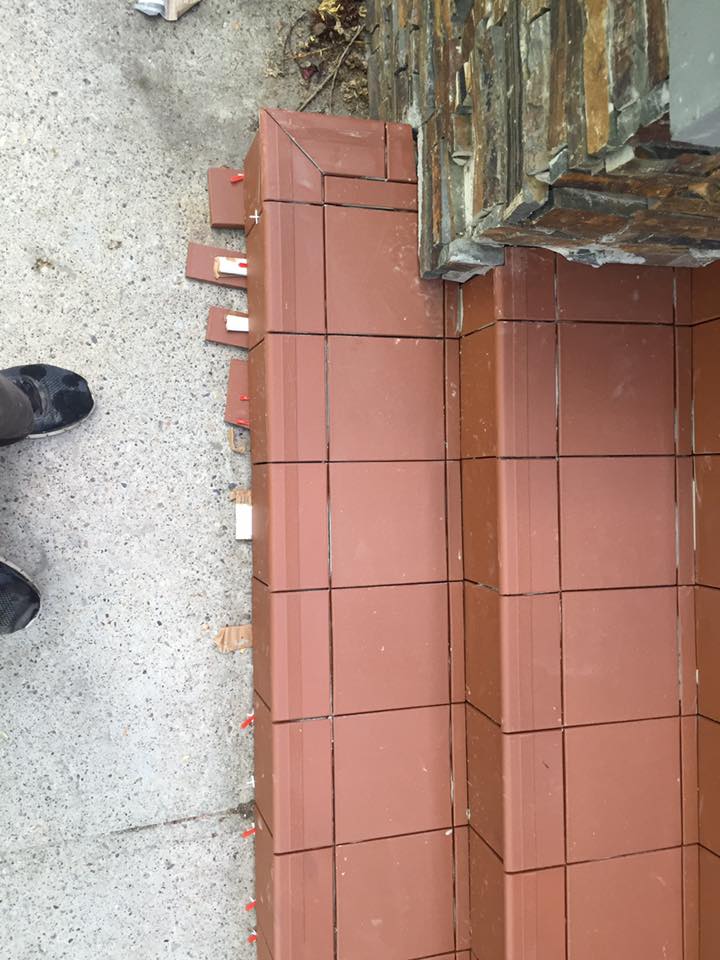

The Slight-Incline Detail on Every Step

The critical detail on any exterior tile step is the drainage slope. The problem: a perfectly level tile step will pool water in heavy rain, hold puddles after snowmelt, and let any standing water freeze into the joint network during a cold snap. The mitigation: every step on this Glenora install was set with a slight incline (typically 1 to 2 percent) toward the front edge so water sheets off toward the sidewalk rather than pooling on the step surface. Execution discipline: the incline has to be consistent across every step (riser to tread, tread to nosing, nosing to next riser) so the entire stair reads as one engineered drainage surface. The setter ran every step off a level reference at the back of the step and a target elevation at the front edge, and verified each step’s slope with a digital level before the tile went down. Why this matters on a historic home: a Glenora homeowner expects the install to last decades, not seasons. The drainage detail is the engineering that delivers that lifespan.

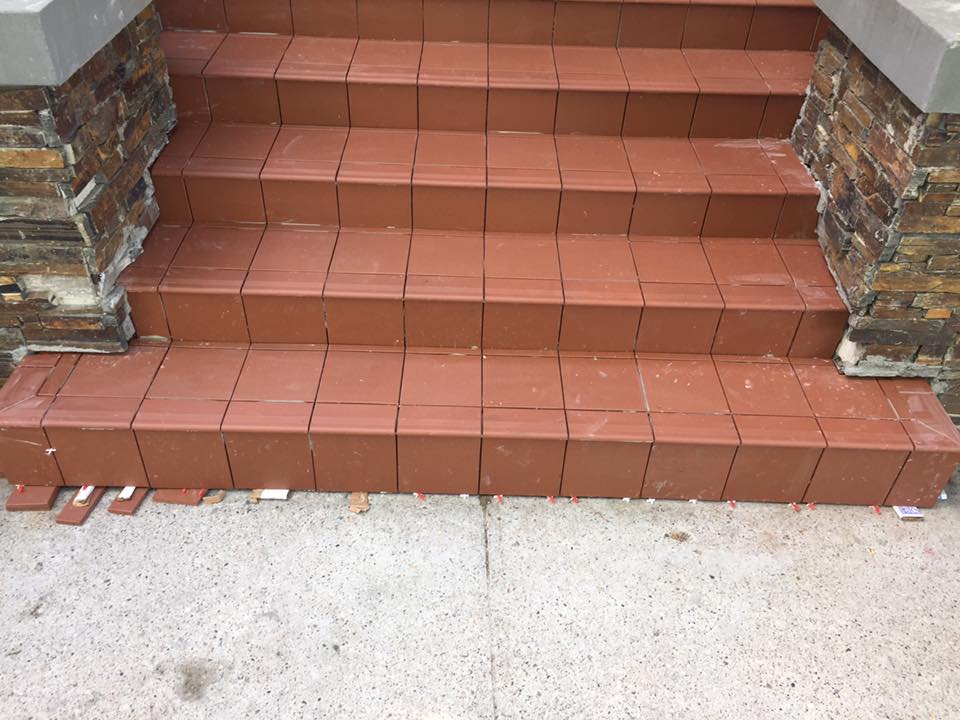

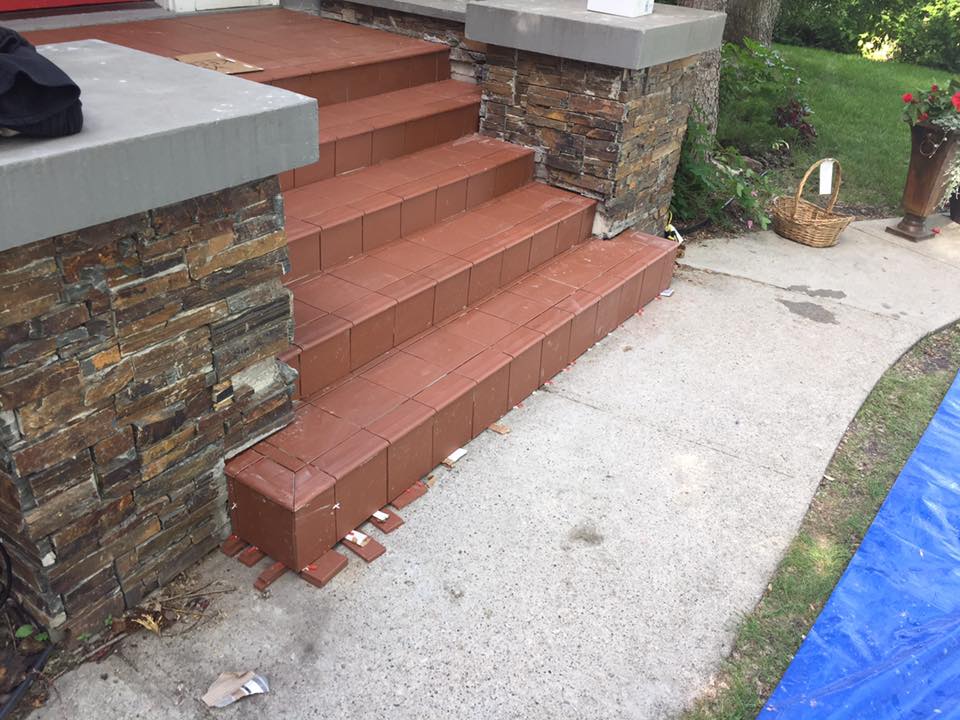

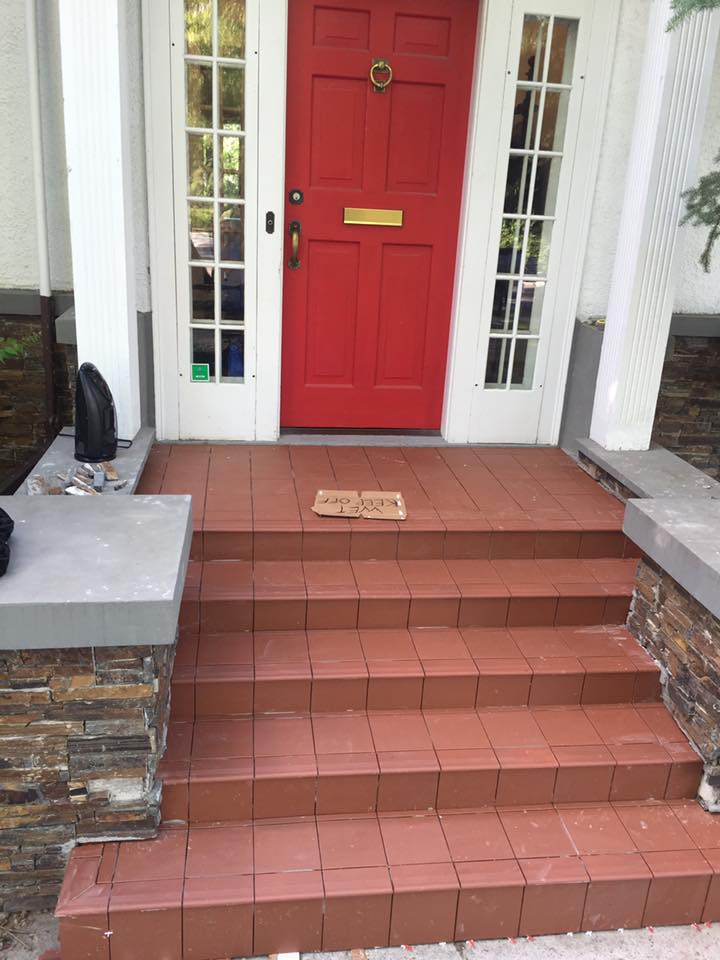

The Clay Tile in a Straight Lay With Stencil Surrounds

The tile itself was a clay tile (chosen to match the historic character of the house) installed in a straight lay using Premium Plus Mortar, with a special stencil surround framing the tile on each step. Purpose of the tile choice: a clay tile on a pre-war or inter-war Glenora home reads as period-appropriate in a way that a porcelain or a contemporary stone-look would not. The colour, the texture, and the natural variation of the clay face all reference the era the house was built in. Purpose of the stencil surround: each step’s tile field is framed by a decorative stencil that wraps the tile and gives every step a finished, architectural edge. This is the detail that elevates the install from a functional re-tile of the front steps to a design moment that contributes to the home’s curb appeal. Property: Premium Plus is a polymer-modified thinset rated for exterior, freeze-thaw applications, which is the chemistry the clay-on-Ditra assembly requires. The straight lay (rather than a stagger) keeps the joint pattern reading as a clean grid that lets the stencil surround read as the design feature.

Prism Grout: Why an Exterior Joint Demands the Right Chemistry

Every joint on the install (the field tile on each step, the joints between the stencil surround and the field, and the perimeter joints at the riser-to-tread transitions) was finished with Prism Grout. Why grout chemistry matters more on exterior than interior: an interior bathroom grout cycles through humidity and water but does not freeze. An exterior step grout cycles through rain, snow, ice, and Edmonton’s full freeze-thaw range, and standard portland-cement grout will fail under that exposure within a few seasons. Property: Prism is a high-performance, stain-resistant calcium-aluminate cement grout that cures harder than portland-cement grout, resists efflorescence, and is rated for exterior freeze-thaw exposure. Relationship: the grout chemistry has to match the bond coat chemistry has to match the membrane chemistry; on this Glenora install all three layers (Ditra, Premium Plus, Prism) are specified for the same exterior, freeze-thaw conditions, which is what makes the assembly perform as one engineered system rather than as a stack of unmatched products.

Planning an exterior tile install on a historic home in Glenora or anywhere in west Edmonton? Call The Tile Experts at 587-333-9800 or request a quote.

Glenora Exterior Tile FAQ

How much does an exterior clay-tile step install cost in Glenora?
For a project of this scope (Ditra membrane waterproofing across the step assembly, clay tile in a straight lay with stencil surround on each step, full Prism grout finish, plus engineered drainage slopes on every step), plan on 6,500 to 12,500 dollars in tile-scope labour and material, depending on the number of steps and the complexity of the stencil work.

Can any tile be used outdoors in Edmonton?
No. Exterior tile in an Edmonton climate must be freeze-thaw rated, must have low water absorption, and must be installed on a freeze-thaw-rated bond coat over an appropriate waterproofing or uncoupling membrane. Standard interior porcelain or ceramic will crack within a few winters if installed outdoors without the right system.

Why slope exterior tile steps?
Any flat exterior tile surface will pool water during rain or snowmelt, and that standing water will freeze in cold weather and crack joints, tile, or bond coat. A 1 to 2 percent slope toward the front edge sheets water off the step before it can pool. See our demolition and prep service.
