Tile Installation Edmonton: Backsplash in Strathcona

A Full Duplex Tile Package Across Three Suites in Strathcona

Strathcona is one of Edmonton’s most architecturally diverse neighbourhoods, anchored by Whyte Avenue and the University of Alberta, with a housing stock that ranges from heritage character homes through newly built infills and modern duplexes. New-build duplex projects in this neighbourhood often run as three coordinated tile packages under one roof: an upper suite, an upper level for the primary occupants, and a basement secondary suite. On this Strathcona new build The Tile Experts ran exactly that scope: a mosaic main-bath floor, a 12 by 24 mudroom, and a 3 by 15 kitchen backsplash in the upper suite; a custom-pattern laundry floor, a Jack-and-Jill bathroom with a 12 by 24 floor and a 3 by 6 subway tub surround, plus an ensuite with 6 by 20 natural stone in herringbone and a 12 by 24 marble steam shower on the upper level; and a 3 by 6 backsplash, a 4 by 16 tub surround, and 12 by 24 entrance and bath floors in the basement suite.

Coordinating Three Independent Suites as One Tile Package

A duplex new build is functionally three tile contracts under one general contractor, and the coordination challenge is keeping each suite’s tile language internally consistent without forcing them to be identical. The upper suite: a self-contained living unit with its own kitchen, bathroom, and mudroom, tiled as one design moment with the mosaic main-bath floor as the focal element. The upper level (primary occupants): a more elaborate package including the Jack-and-Jill bathroom for shared family use and the primary ensuite featuring the natural stone herringbone and marble steam shower. The basement suite: a second self-contained unit with its own kitchen, bathroom, and entrance, tiled with simpler but consistent specifications. The dominant pattern decision: every tile field across all three suites (with the exception of the ensuite herringbone and the custom laundry floor) was set in a 50/50 brick lay. This is the layout choice that ties the entire duplex together as one project while letting each suite read independently within its own footprint.

The Upper Suite: Mosaic Floor, 12×24 Mudroom, and a 3×15 Backsplash

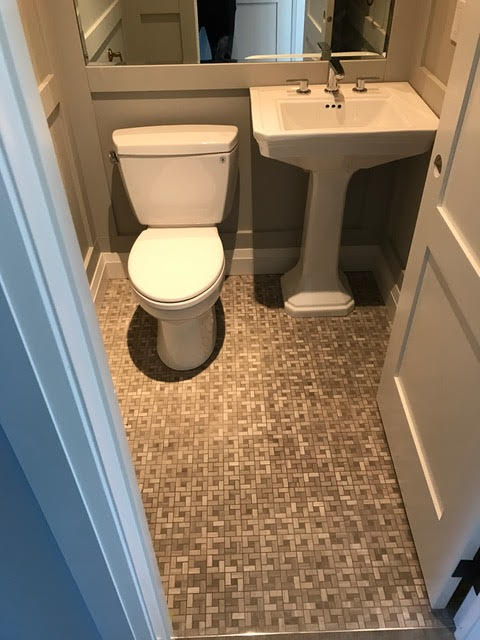

The upper suite’s tile package is anchored by a mosaic tile floor in the main bathroom. Purpose of a mosaic floor in a suite bathroom: the small tile face and dense joint network give the bathroom floor visual interest at the closest scale a homeowner experiences (bare feet, looking down), which is the appropriate texture for a compact bathroom footprint. The mudroom: a 12 by 24 porcelain in a 50/50 brick lay, which is the durable, easy-clean tile language a mudroom demands. The kitchen backsplash: a 3 by 15 subway tile, which is a longer-than-traditional subway format that reads as contemporary while keeping the rectangular face that ties it to the classic subway lineage. The chemistry: the wall and floor installs across the upper suite were set with the manufacturer-correct bond coats for each application; vertical wet-zone walls used a polymer-modified mastic like ReliaBond Tile Adhesive, and the floor installs used a polymer-modified thinset like VersaBond Mortar.

The Upper Level: Jack-and-Jill, Custom Laundry, and a Stone Herringbone Ensuite

The upper level (the primary occupants’ floor) carries the most elaborate scope of the duplex. The Jack-and-Jill bathroom: a 12 by 24 porcelain floor in 50/50 brick lay paired with a 3 by 6 subway tile tub surround, which is the timeless format combination that makes a shared-use bathroom feel both contemporary and durable. The custom-pattern laundry floor: a designed tile layout (rather than a uniform field) that turns a utility room into a design moment. Custom-pattern laundry floors are a growing specification in upper-end new builds because the room is small enough that the tile cost stays manageable while the design impact is high. The ensuite: a 6 by 20 natural stone tile in a herringbone pattern, which is one of the most demanding install patterns in the trade because every cut has to land at a precise 45 degree angle and every joint has to align across the herringbone weave. The steam shower: a 12 by 24 marble, which demands the right waterproofing system for a steam environment. Steam showers are wetter than standard showers because the moisture stays vapour-phase for hours; the waterproofing typically uses a Schluter Kerdi Membrane bonded to the substrate with a polymer-modified thinset.

Why Herringbone and a Custom Laundry Floor Are the Hardest Tile in the House

Two install scopes on this Strathcona new build sit above the rest in install difficulty: the ensuite’s stone herringbone and the laundry room’s custom-pattern floor. The herringbone: a herringbone install demands that every tile is cut at a precise 45 degree angle and that every joint aligns with both its perpendicular neighbour and its parallel neighbour across the field. With a 6 by 20 natural stone (where the tile itself has bow variation and natural face variation), the layout discipline becomes the dominant labour cost. The setter has to dry-lay long sections before committing to the bond, and every cut has to be verified against the field grid. The custom laundry floor: a custom pattern is not a manufacturer-defined layout; it is a designed composition specific to the room. The setter has to interpret the design intent, lay out the field on paper, plan every cut around the room’s perimeter and the appliance footprints, and execute the pattern with no off-the-shelf reference to fall back on. What both share: they are scopes where the tile labour is the dominant cost relative to material, and where the only way to deliver a quality result is to give the setter the time the layout demands rather than rushing the install.

The Basement Suite: A Simpler but Consistent Tile Language

The basement secondary suite carries a more restrained tile package that nevertheless reads as part of the same building. The kitchen backsplash: a 3 by 6 subway tile in a 50/50 brick lay, set with ReliaBond Tile Adhesive. The 3 by 6 is the most timeless tile in any kitchen and the right specification for a basement suite where the design intent is durable and tenant-friendly rather than design-forward. The bathroom tub surround: a 4 by 16 subway tile, which gives the surround a slightly more contemporary scale than the kitchen backsplash while keeping the subway language. The entrance and bathroom floor: a 12 by 24 porcelain in a 50/50 brick lay, matching the upper-suite mudroom format and tying the two suites together as part of one duplex. The brick-lay consistency: running 50/50 brick lay across every floor and every backsplash in the basement (and across most of the rest of the duplex) gives the building one tile rhythm from foundation to roof. Each suite reads as its own composition, but every composition shares the same underlying language.

Planning a new-build duplex tile package or a complex multi-suite tile scope in Strathcona or anywhere in central Edmonton? Call The Tile Experts at 587-333-9800 or request a quote.

Why 50/50 Brick Lay Across an Entire Duplex Is the Right Call

The choice to set every tile field on this new build (with the exception of the herringbone ensuite floor and the custom laundry pattern) in a 50/50 brick lay is a coordination decision as much as a design one. The brick lay reads as the most timeless pattern across both subway backsplashes and large-format floors, which means it ages without dating the build to a particular year. The brick lay simplifies installer coordination: when every suite is using the same layout language, the setter is not constantly switching mental models between patterns, which produces faster, cleaner work. The brick lay scales across tile sizes: the same pattern reads consistently on a 3 by 6 subway, a 4 by 16 subway, a 3 by 15 subway, and a 12 by 24 porcelain, which means one design decision covers nine different tile fields without compromise. The exceptions prove the rule: the herringbone ensuite and the custom laundry are deliberately designed as the moments where the pattern language shifts, which gives the upper level the design upgrade it deserves without diluting the rest of the building.

Strathcona Duplex New-Build FAQ

How much does a full duplex tile package cost in Strathcona?
For a project of this scope (upper suite with mosaic main bath, 12 by 24 mudroom, 3 by 15 backsplash; upper level with Jack-and-Jill 12 by 24 + 3 by 6 subway, custom laundry, 6 by 20 natural stone herringbone ensuite, 12 by 24 marble steam shower; basement suite with 3 by 6 backsplash, 4 by 16 tub surround, 12 by 24 entrance and bath floor), plan on 38,000 to 65,000 dollars in tile-scope labour and material across all three suites.

Why does a stone herringbone cost more than a porcelain straight lay?
A herringbone demands every tile cut at a precise 45 degree angle and every joint aligned with both perpendicular and parallel neighbours. With natural stone (which has bow variation and natural face variation), the layout discipline becomes the dominant labour cost. Herringbone is typically 2 to 3 times the install labour of a straight lay in the same square footage.

Why specify a steam shower differently from a standard shower?
A steam shower stays vapour-phase wet for hours after use, which means the waterproofing has to handle continuous moisture rather than just water during the wash. A Schluter Kerdi membrane or equivalent waterproofing layer is the right specification, bonded with a polymer-modified thinset. See our bathroom tile installation service.

Tile Installation in Strathcona and Central Edmonton

Strathcona sits south of the river valley between 109 Street and Mill Creek Ravine, anchored by Whyte Avenue and the University of Alberta, with neighbours in Bonnie Doon, King Edward Park, Garneau, and Queen Alexandra. New-build duplex tile packages, multi-suite coordination scopes, custom laundry and herringbone work, and steam shower installations are some of the most common projects in this established south-central housing stock. The Tile Experts install bathrooms, kitchens, floors, custom showers, fireplaces, steam showers, and feature walls across Strathcona, Bonnie Doon, Garneau, and the rest of south-central Edmonton, plus the full capital region. Contact us or call 587-333-9800 for a free in-home walkthrough.
