Tile Installation Edmonton: Heated Floor in Big Bear Park

Heated 24×24 Main-Floor Tile With Ditra Heat and Self-Leveling Clips Near Big Bear Park

Big Bear Park sits on the western edge of Sherwood Park in Strathcona County, anchoring a residential pocket between Sherwood Drive and Wye Road, with a housing stock built largely through the 1980s and 1990s. Main-floor tile in this stock arrives at renovation age with a homeowner who wants to upgrade both the look (large-format tile) and the feel (heated floor) in a single scope. On this Big Bear Park project The Tile Experts ran exactly that integrated upgrade: a Schluter Ditra Heat membrane bonded to the subfloor with 253 Gold Laticrete, a heating element coiled through the membrane’s uncoupling matrix, a 24 by 24 large-format porcelain in a straight lay set with Premium Plus, self-leveling clips across every joint to eliminate lippage, and Prism Grout finishing every joint.

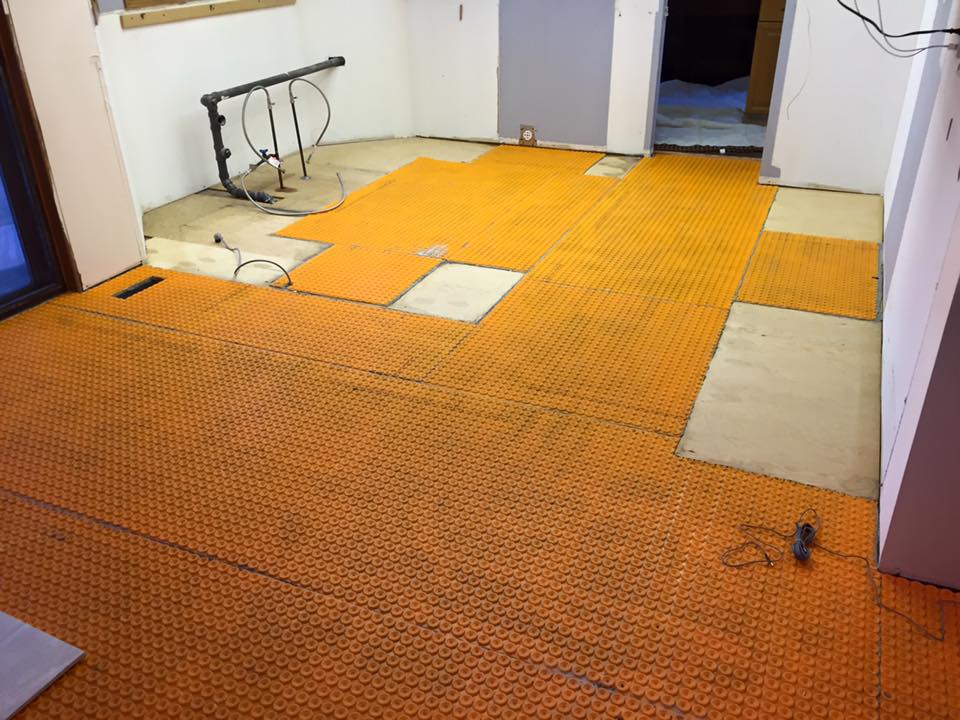

Why Ditra Heat Solves Two Problems at Once

A traditional electric in-floor heating install runs the heating element in a thinset bed below the tile, which adds an entire layer of thickness to the floor assembly and complicates the floor-to-doorway and floor-to-cabinet transitions. The Ditra Heat solution: the same molded polyethylene grid that uncouples Ditra from substrate movement is sized to accept the Ditra Heat heating element coiled directly through it, so the heat layer and the uncoupling layer become one assembly with no added thickness. Two problems, one assembly: the homeowner gets the seasonal-movement isolation a Ditra membrane provides plus the heated-floor comfort of electric in-floor warming, in the same installation height as a non-heated Ditra install. The bond coat pairing: Schluter Ditra Heat Membrane is bonded to the subfloor with 253 Gold Laticrete Mortar, which is the polymer-modified thinset chemistry the manufacturer specifies for the membrane-to-subfloor bond. Why this matters: getting the chemistry pairing right at the bottom of the assembly is what makes the heating element above it perform as designed across every seasonal cycle the floor lives through.

Coiling the Heating Element Through the Membrane

Once the Ditra Heat membrane was bonded and the bond coat had cured, the heating element was coiled through the membrane’s uncoupling matrix in the areas the homeowner specified for heating. Purpose: heating only the desired areas (rather than the entire floor footprint) lets the homeowner control comfort and energy consumption to the high-traffic and high-occupancy zones, while the unheated areas of the floor still get the uncoupling and substrate-protection benefits of the membrane. The wire-and-thermostat verification: before any tile went down on top of the heated assembly, the heating element was tested in conjunction with the thermostat to confirm that the wire was intact, the resistance reading was on spec, and the thermostat was triggering the element correctly. Why this verification step is non-negotiable: once the tile is set, any fault in the wire below is a tile-out demolition to access. The pre-tile verification is the discipline that prevents a thousand-dollar problem from becoming a ten-thousand-dollar problem.

Premium Plus Over the Heated Membrane

With the heating element verified and laid in the matrix, a layer of Premium Plus Mortar was spread across the membrane to encapsulate the wire and create a level bedding surface for the tile. Purpose: the Premium Plus layer fills the cavities of the Ditra Heat matrix around the wire, locks the heating element in position, and produces a flat reference surface for the 24 by 24 tile to land on. Property: Premium Plus is a polymer-modified professional-grade thinset specified by the membrane manufacturer for both the substrate-to-membrane bond and the membrane-to-tile bond, which is the chemistry consistency the system requires. Relationship: using one bond coat across both interfaces means the thermal expansion behaviour of the assembly is uniform from substrate to tile face, which matters on a heated floor where temperature cycling is part of normal operation. The wrong thinset on a heated assembly is a delamination risk every time the floor warms and cools.

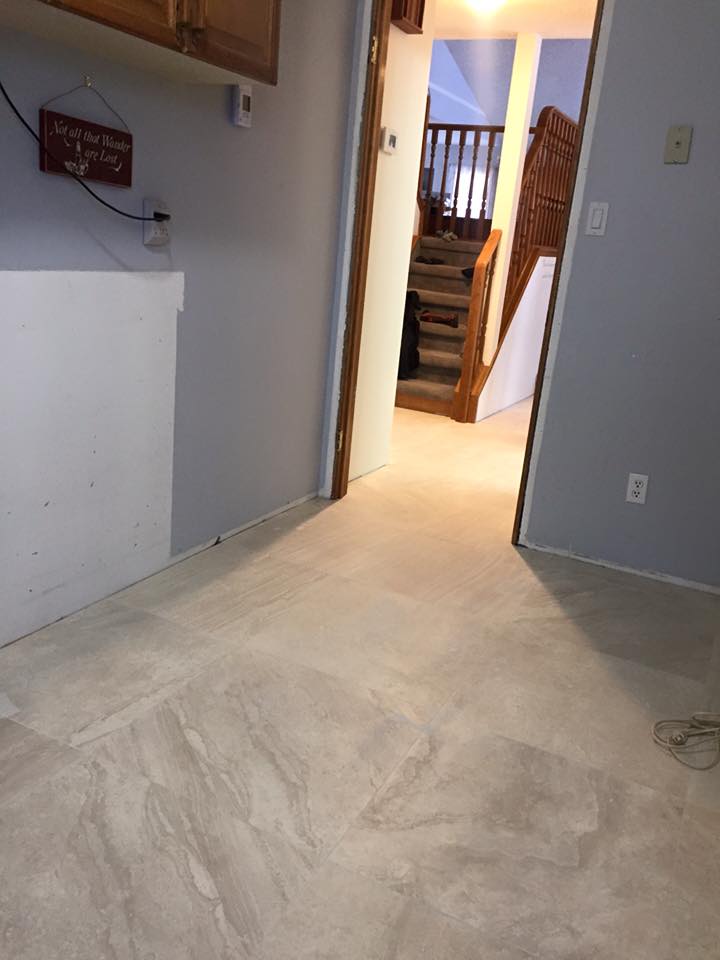

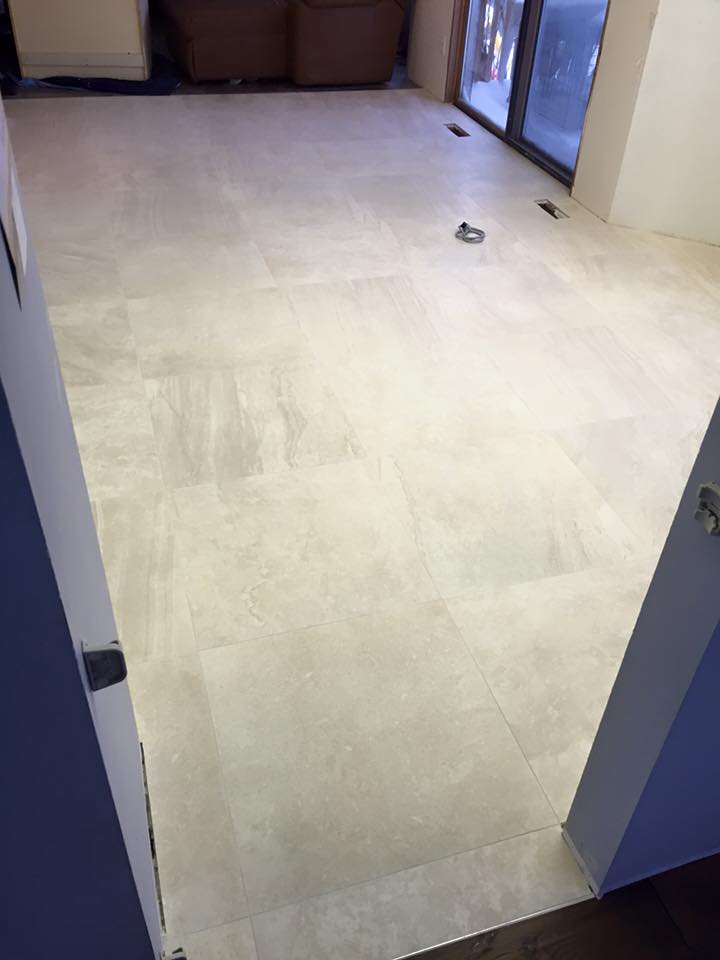

Why a 24×24 Large Format Reads Right on a Main Floor

The tile selected for this Big Bear Park renovation was a 24 by 24 large-format porcelain in a straight lay. Purpose of the format: a 24 by 24 reads as the most contemporary, architectural choice on a residential floor, with the large face making the room read as more open and the low joint count per square foot keeping the visual rhythm calm. On an open main-floor zone where the tile carries from the entry through the kitchen to the dining area, the 24 by 24 is the format that makes every room read as part of the same composition. Purpose of the straight lay: a straight lay (every joint aligned with the joint of the adjacent course) is the cleanest possible reading of a large-format tile, with the joint grid functioning as a deliberate architectural pattern across the floor. Property: a 24 by 24 in a straight lay demands the tightest possible tile flatness tolerances, because every joint becomes a continuous gridline across the room and any lippage is immediately visible.

Self-Leveling Clips: How a 24×24 Stays Flat

To deliver the lippage-free joint reading that the 24 by 24 straight lay demands, the entire main-floor install was run with a self-leveling clip system across every joint. The mechanism: the clips slot between adjacent tiles before the bond coat sets and physically pull the two tile faces to the same plane. When the clips snap off the next day, every joint in the floor is at the same elevation as its neighbours, with zero lippage. Why this matters more on a 24 by 24 than on smaller tiles: the longer the tile face, the more visible any lippage becomes, because a small height difference becomes a longer visible step across the joint. On a 24 inch face, lippage that would be acceptable on a 12 inch tile becomes immediately objectionable. The result on this Big Bear Park floor: a 24 by 24 in a straight lay across an entire main floor, with every joint reading as the same gridline and no detectable elevation change at any tile boundary. This is the level of execution discipline that separates a custom large-format install from a builder-grade one.

Planning a heated large-format main-floor tile install around Big Bear Park, Sherwood Park, or anywhere in Strathcona County? Call The Tile Experts at 587-333-9800 or request a quote.

Prism Grout Finishing the Whole Floor

Every joint across the main-floor install was finished with Prism Grout. Property: Prism is a high-performance, stain-resistant calcium-aluminate cement grout that cures harder than standard portland-cement grout and resists efflorescence across heated-floor temperature cycling. Why grout chemistry matters more on a heated floor: the joint network on a heated floor lives through a daily temperature cycle that standard portland grout will crack under within a few years. Prism’s calcium-aluminate chemistry holds its integrity across that cycle. Relationship: the grout colour was matched to the tile face so the joints recede and the eye reads the 24 by 24 grid as the only visible pattern across the floor.

Big Bear Park Heated Floor FAQ

How much does a heated main-floor tile install cost in Sherwood Park near Big Bear Park?
For a project of this scope (Ditra Heat membrane across the heated zones, electric heating element with thermostat, Premium Plus encapsulation, 24 by 24 large-format porcelain in a straight lay with self-leveling clips across every joint, full Prism grout finish), plan on 14,500 to 24,500 dollars in tile-scope labour and material, depending on heated square footage and tile selection.

Should you heat the whole floor or just the high-occupancy zones?
Heating only the desired areas (the kitchen working zone, the dining area, the entry, the bathroom floor) lets the homeowner direct comfort and energy consumption to where it is actually used, while the unheated zones still get the uncoupling and substrate-protection benefits of the membrane. This is usually the more efficient specification.

Why test the heating wire before installing tile?
Once the tile is set, any fault in the heating element below is a tile-out demolition to access and repair. Pre-tile verification of wire continuity, resistance reading, and thermostat triggering is the discipline that prevents a routine renovation from becoming an expensive emergency. See our heated tile surfaces service.

Tile Installation Around Big Bear Park and Sherwood Park

Big Bear Park sits on the west side of Sherwood Park in Strathcona County, with surrounding residential pockets running between Sherwood Drive, Wye Road, and Baseline Road. Heated main-floor installs, large-format 24 by 24 porcelain projects, Ditra Heat membrane work, and self-leveling-clip installations are some of the most common projects in this 1980s and 1990s housing stock. The Tile Experts install bathrooms, kitchens, floors, custom showers, fireplaces, heated surfaces, and feature walls across Sherwood Park, Strathcona County, and east Edmonton, plus the full capital region. Contact us or call 587-333-9800 for a free in-home walkthrough.
