Basement Renovation Edmonton: Mosaic Tile in Downtown

A Commercial Renovation in 12×24 Stacked With a 12-Inch Mosaic Insert and a Mosaic Counter Feature in Downtown Edmonton

Downtown Edmonton is the city’s central commercial and institutional core, running roughly between 95 Street and 109 Street and from the river valley north to 105 Avenue, with a building stock that mixes 1960s through 1980s office towers, mid-century retail blocks, and recent ground-up mixed-use developments. Commercial renovations downtown typically address washroom and reception-zone tile work as part of a tenant-improvement scope, where the existing tile has aged out of the current tenant’s brand language and the renovation has to deliver a contemporary commercial finish on a tenant-improvement budget and timeline. On this downtown commercial renovation The Tile Experts ran a coordinated scope: floors and part of the walls in 12 by 24 porcelain in a stacked pattern with a 12 inch mosaic insert on the walls and tile base, set with 253 Gold Laticrete Mortar, plus a mosaic wall feature over the counter set with ReliaBond Tile Adhesive, all grouted with Prism Grout.

Why a 12×24 Stacked Lay With a 12-Inch Mosaic Insert Is the Right Downtown Commercial Spec

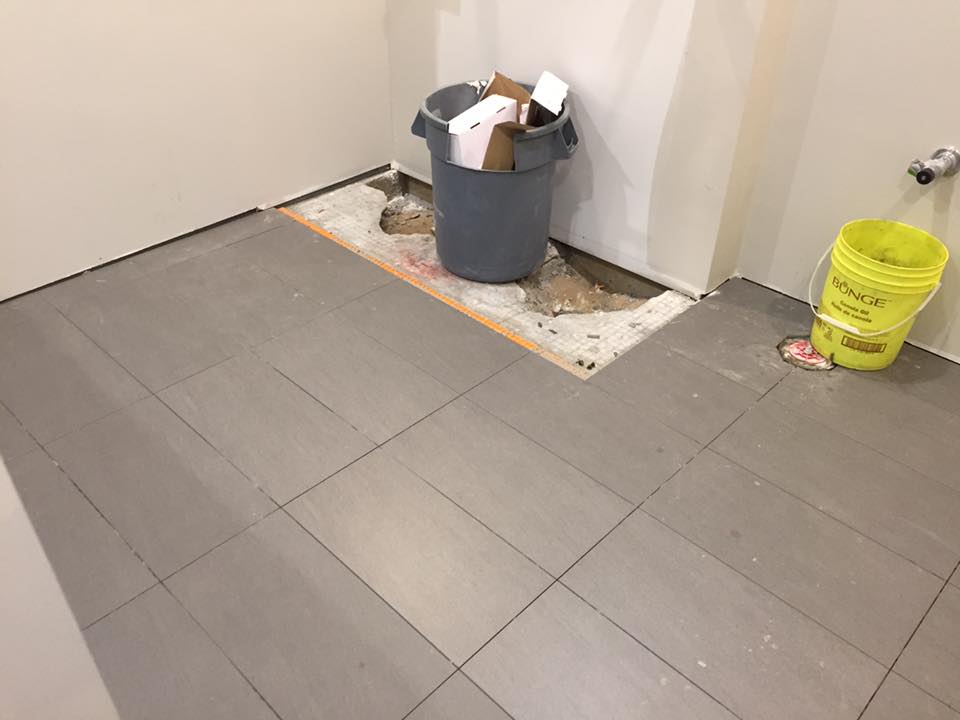

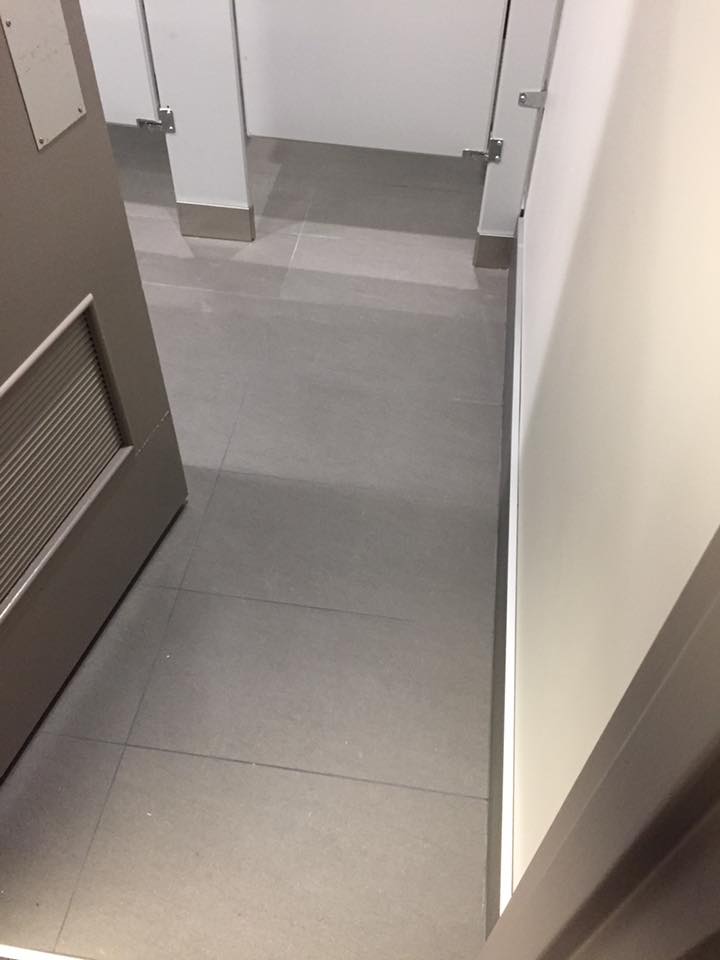

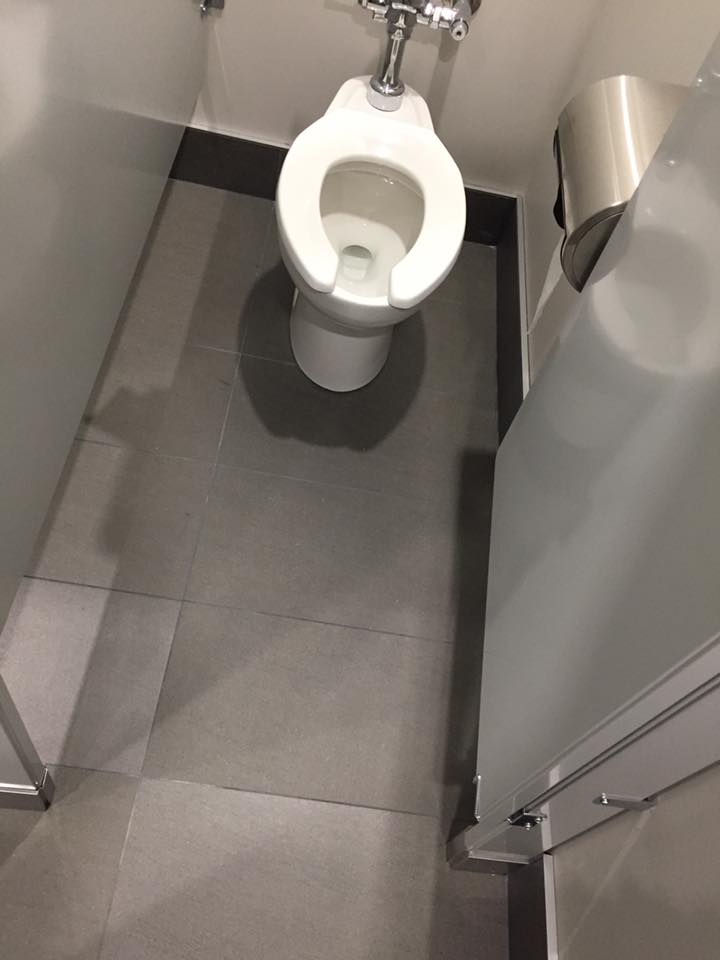

The main tile format on this commercial install is a 12 by 24 porcelain in a stacked lay across both the floor and part of the walls, with a 12 inch mosaic insert band running through the wall surface and continuing as a tile base at the floor-to-wall transition. Why the stacked lay on a commercial install: the stacked lay produces the most contemporary tile pattern available and reads as architectural rather than decorative, which matches the design language of a commercial tenant-improvement renovation where the goal is a clean, current finish that signals brand quality without committing to a specific decorative direction. The aligned joint grid also reads as more professional than a staggered or brick-lay pattern in a commercial context. Why the same format and pattern on both floor and walls: running the 12 by 24 stacked lay on both surfaces produces a continuous-material reading from horizontal to vertical that gives the commercial space a coordinated design feel without committing to a custom luxury budget. The floor joints align with the wall joints at the base, which is the layout discipline that separates a coordinated commercial install from a production-grade commercial install. What a 12 inch mosaic insert delivers: a substantial accent band running horizontally through the wall at a specific course height, wide enough to register as a deliberate design feature against the 12 by 24 stacked field. A narrower insert (3 to 6 inches) would have read as a thin stripe lost against the larger format, while the 12 inch insert holds proportion against the 12 by 24 and reads as a deliberate horizontal break. Why the mosaic continues as a tile base: running the mosaic down to the floor as a tile base produces a continuous protective surface at the wall-floor transition, where the mosaic absorbs the visual and physical impact of cleaning carts, mop buckets, and other commercial cleaning equipment that regularly contact the lower wall surface. The functional argument: the original portfolio note for this project specifies that the tile base is an excellent addition to the floor as it prevents water damage in the event of overflow or spillage. A tile base at the wall-floor transition extends the waterproof surface above the floor plane so that any standing water from a spill or overflow contacts tile rather than baseboard or drywall.

The Mosaic Wall Feature Over the Counter

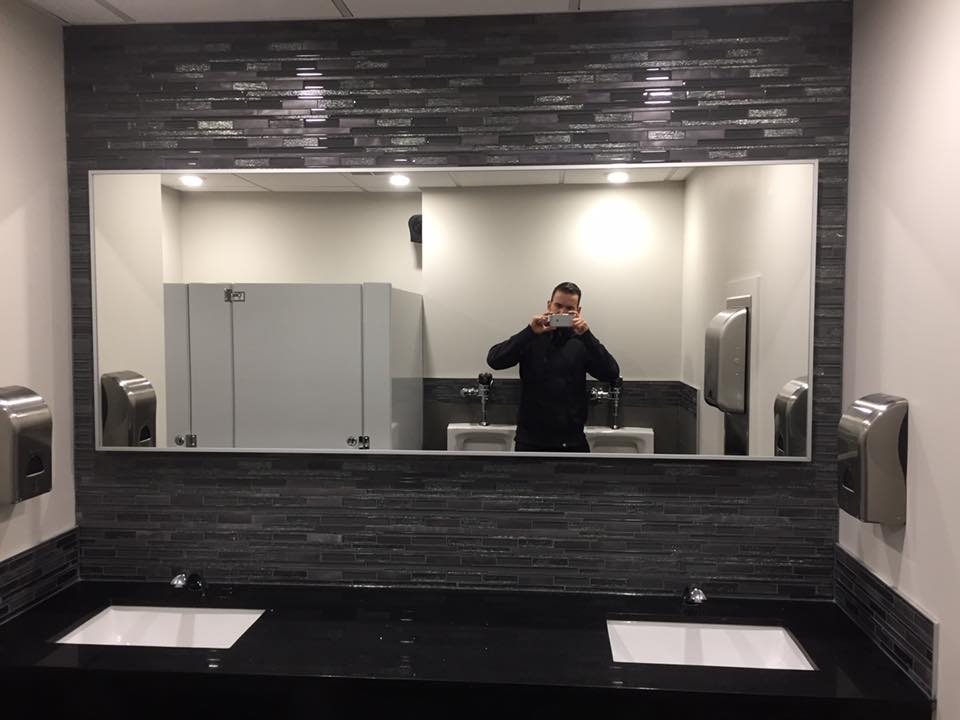

The design hook on this commercial install is a mosaic wall feature over the counter, a section of mosaic tile clad on the wall above the service counter as a focal-point surface. What a mosaic feature over the counter delivers: a textured wall surface that draws the eye toward the counter area, which in a commercial context is the primary customer-service touchpoint and the spatial moment where the customer forms an impression of the business. A mosaic feature in that location signals that the business invested in the finish beyond the minimum spec, which is the design signal that supports brand perception in a commercial leasing or customer-service environment. Why a mosaic rather than a feature tile or a paint accent: a mosaic produces a textured surface that catches light from multiple angles and reads as more substantial than a paint accent, while the small format means the install can wrap around fixtures, electrical, or architectural features in the wall without the layout compromises that a larger feature tile would require. The bond coat for the counter feature: the mosaic over the counter was set with ReliaBond rather than 253 Gold. ReliaBond is a Type 1 organic mastic with the immediate grab and generous open time that match the mosaic install workflow, where the small format means the bond coat sets across many tile edges per square foot. The mastic chemistry also handles the irregular back face of mesh-mounted mosaic sheets better than a portland-cement thinset would on this dry-zone vertical wall surface. Why ReliaBond on the feature and 253 Gold on the field: the two surfaces sit in the same renovation but have different bond-coat needs because of the format difference. The chemistry split is intentional, and the boundary between the field and the feature is grouted continuously with Prism so the joint reading is uniform across the format transition.

Why 253 Gold Laticrete on the Commercial Field

The bond coat for the 12 by 24 field across both floors and walls is Laticrete 253 Gold. What 253 Gold delivers on a commercial install: a polymer-modified portland-cement thinset specifically rated for medium-bed installations and large-format tile, with the bond strength and chemistry stability to carry warranty performance across the commercial cleaning cycles that downtown washroom and reception tile assemblies see daily. Why the medium-bed rating matters here: a 12 by 24 has a plan area of two square feet, and the bond coat under each tile has to support that full plan area without slumping. On a commercial floor that sees concentrated foot traffic, any centre voids under tiles will eventually produce tile rocking, popped tiles, or cracked grout joints under load. 253 Gold maintains its bond coat thickness across the 12 by 24 footprint and produces a fully load-rated commercial floor assembly. Why this matters on commercial walls too: on the vertical wall application, the medium-bed chemistry maintains bond coat thickness against gravity during cure, preventing slumping that would produce uneven tile faces or lippage at the joints. Commercial walls are inspected at close range during occupancy walkthroughs, brand reviews, and tenant-improvement signoffs, and any lippage reads as a defect. The grout: the joints across both the floor and the walls were grouted with Prism, the stain-resistant calcium-aluminate cement grout that handles the commercial cleaning chemistries (including periodic disinfectant cycles) without losing colour reading.

Planning a commercial tenant-improvement renovation with a 12 by 24 stacked-lay field, a 12 inch mosaic insert and tile base, and a mosaic wall feature over the service counter in downtown Edmonton? Call The Tile Experts at 587-333-9800 or request a quote.

Downtown Commercial Renovation FAQ

How much does a commercial renovation with 12×24 stacked-lay floors and walls, a 12 inch mosaic insert and tile base, and a mosaic counter feature cost in downtown Edmonton?
For a project of this scope (12 by 24 porcelain stacked lay across floors and part of the walls with 253 Gold Laticrete, 12 inch mosaic insert continuing as a tile base at the wall-floor transition, mosaic wall feature over the counter set with ReliaBond, full Prism grout finish), plan on 22 to 32 dollars per square foot in tile-scope labour and material, with total wall and floor square footage and the size of the counter feature as the primary cost drivers.

Why include a tile base at the wall-floor transition instead of a conventional baseboard?
A tile base extends the waterproof tile surface above the floor plane so that standing water from a spill or overflow contacts tile rather than baseboard or drywall. The tile base also resists impact damage from commercial cleaning equipment that regularly contacts the lower wall surface.

Why does the counter feature use ReliaBond while the field uses 253 Gold Laticrete?
The mosaic counter feature has a different bond-coat need than the 12 by 24 field because of the format difference. ReliaBond is a Type 1 organic mastic with the immediate grab and generous open time that match the mosaic install workflow. 253 Gold is the medium-bed thinset for the large-format tile field. See our feature walls service.

Commercial Tile Installation in Downtown Edmonton

Downtown Edmonton sits between 95 Street and 109 Street and runs from the river valley north to 105 Avenue, including the office towers along Jasper Avenue, the institutional buildings of the central government district, the ICE District and Rogers Place corridor, and the recent mixed-use developments in the warehouse and railtown areas. Commercial tenant-improvement renovations with 12 by 24 stacked-lay specifications, mosaic insert details, tile-base transitions, and counter-feature mosaic work are some of the most common projects in this central commercial and institutional core. The Tile Experts install commercial and residential bathrooms, kitchens, floors, custom showers, fireplaces, and feature walls across downtown Edmonton and the rest of the central commercial market, plus the full capital region. Contact us or call 587-333-9800 for a free walkthrough and quote.
