Bathroom Renovation Edmonton: Heated Floor in Elmwood

4×16 Subway, Stacked 12×24 Floors, and a Coordinated Tile Package in Elmwood

Elmwood is a mature east-Edmonton neighbourhood north of 118 Avenue, with a housing stock that runs from post-war bungalows to 1960s and 1970s infill. By the time an Elmwood home reaches its big renovation cycle, the original bath and kitchen tile is typically a generation past its design life and the homeowner is looking for one coordinated tile package rather than three separate room scopes. On this Elmwood project The Tile Experts delivered exactly that: a 4 by 16 subway on the kitchen backsplash and both bathroom vanities in a 50/50 brick lay, 12 by 24 porcelain on both bathroom floors in a stacked layout, and a 12 by 24 main-bath tub surround in a stacked pattern with a 24 inch mosaic insert as the focal accent.

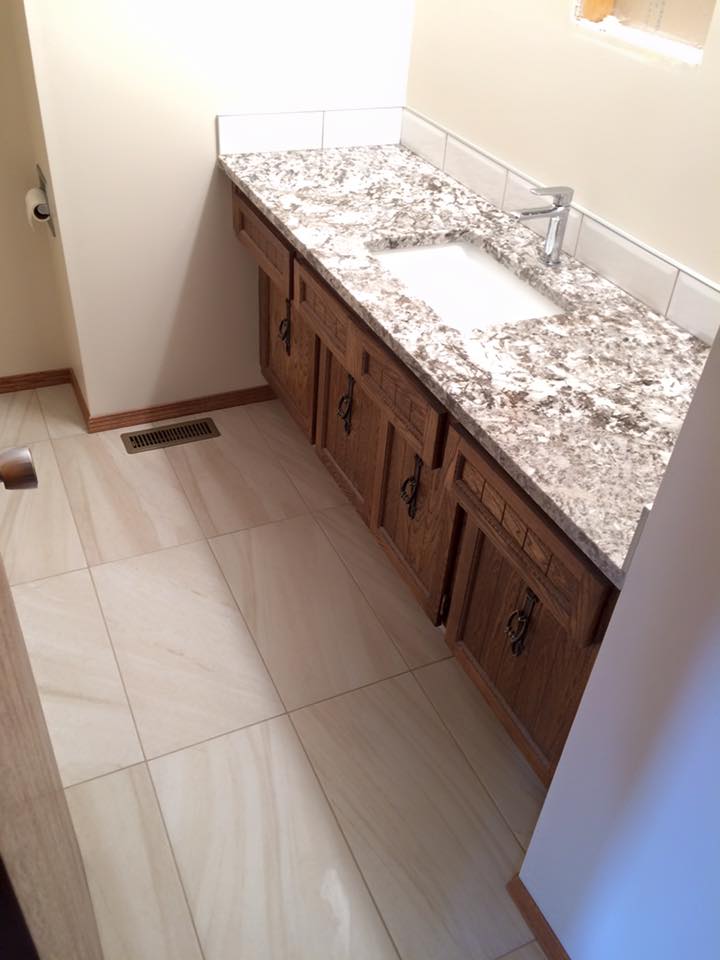

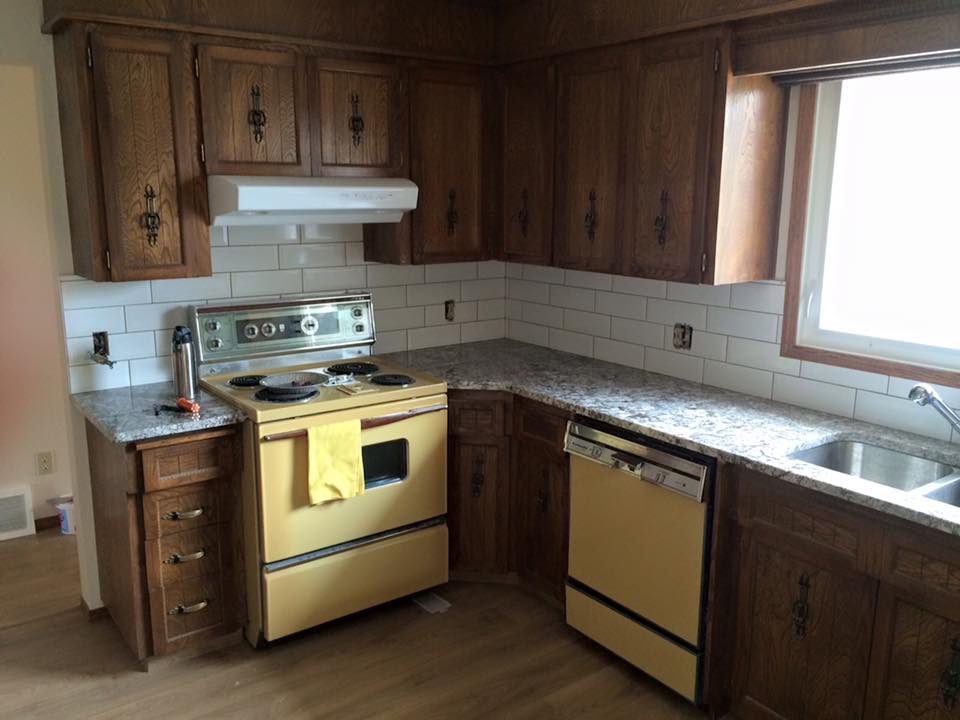

The 4×16 Subway on Backsplash and Vanities

The kitchen backsplash and both bathroom vanity splashes carry a 4 by 16 subway tile in a 50/50 brick lay, set with ReliaBond Tile Adhesive. Purpose: the 4 by 16 reads as a contemporary update of the classic 3 by 6 subway, with the elongated face giving the wall a stronger horizontal rhythm. Running the same tile across both vanities and the kitchen backsplash unifies the three rooms as one tile composition. Property: ReliaBond is a Type 1 organic mastic engineered for interior dry-wall vertical applications like backsplashes and vanity splashes, with the grab strength to hold the 4 by 16 face vertically without sag while the bond develops. Relationship: the 50/50 brick lay distributes any minor sizing variation across the wall so no two cut joints ever stack in a vertical line. The setter ran the kitchen and both vanities off a matching reference height so the subway course alignment reads consistently from room to room.

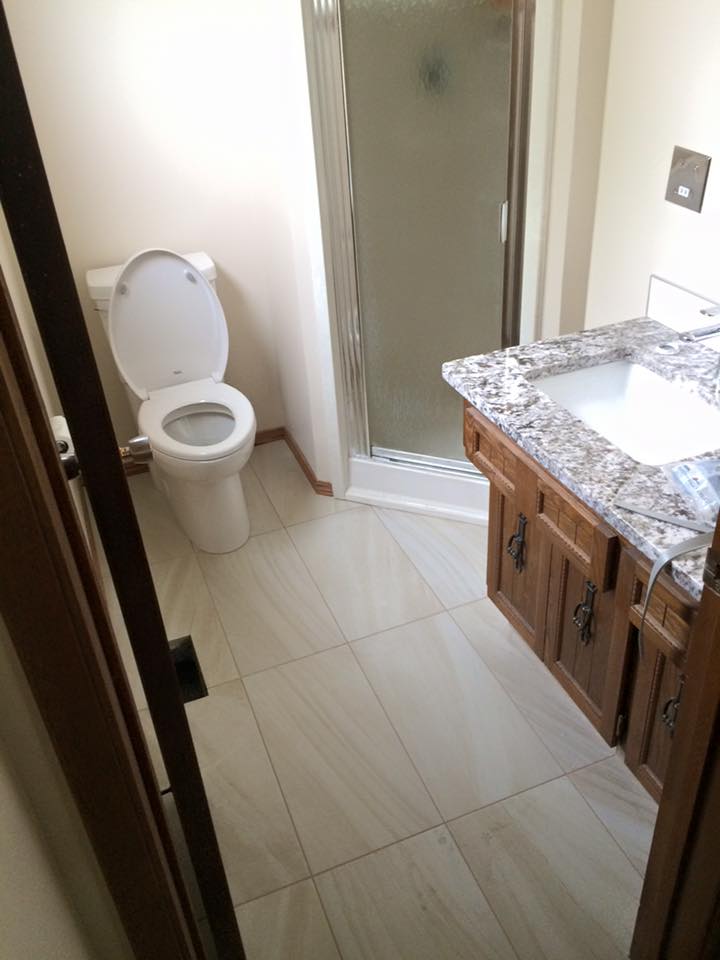

Why Stack a 12×24 on a Bathroom Floor

Both bathroom floors carry a 12 by 24 porcelain in a stacked layout (every course aligned with the course below rather than offset), set with 253 Gold Laticrete Mortar. Purpose: a stacked layout reads as the most modern, architectural choice on a large-format tile. Where a 70/30 stagger references the traditional running bond and a 50/50 references the classic subway, the stacked layout references the grid of contemporary architecture. On a renovation where the homeowner is replacing dated bath flooring, the stacked layout is the move that pulls the rooms out of their original decade. Property: a stacked layout demands tight tile tolerances because every joint reads as a continuous gridline across the room. The setter ran every course off a laser reference and pulled lippage to zero at every cross-joint. Relationship: 253 Gold Laticrete is a polymer-modified professional-grade thinset rated for porcelain on wood-framed subfloors, with the flexibility to absorb seasonal movement without breaking the bond.

The Main-Bath Tub Surround: 12×24 Stacked With a 24-Inch Mosaic Insert

The main bathroom tub surround was tiled with the same 12 by 24 porcelain as the floor, in the same stacked layout, set with VersaBond Mortar and centred on a 24 inch mosaic insert as the focal accent. Visual story: using the same tile and the same layout on the surround as on the floor creates a continuous architectural envelope that wraps the bathroom from the floor up the walls. The 24 inch mosaic insert then drops a single horizontal band of detail into the back wall of the surround, breaking the otherwise uniform 12 by 24 grid with one deliberate moment. Layout discipline: the mosaic was set to land between two full courses of 12 by 24 with no cut tiles immediately above or below, so the insert reads as a designed feature rather than a patched seam. The niche, the showerhead, and the mosaic band were all coordinated off a single elevation drawing before the install started. Property: VersaBond is a polymer-modified professional-grade thinset rated for ceramic and porcelain in wet-zone applications, which is the bond chemistry a tub surround demands.

Prism Grout Across the Whole Scope

Every joint in the renovation (the 4 by 16 backsplash and vanities, both 12 by 24 floors, and the tub surround) was finished with Prism Grout. Purpose: using one grout, one colour, and one chemistry across the entire scope keeps the joint tone consistent from room to room. Property: Prism is a high-performance, stain-resistant calcium-aluminate cement grout that cures harder than standard portland-cement grout and resists efflorescence across joints exposed to moisture, traffic, and seasonal humidity. Relationship: on a stacked 12 by 24 layout where every joint is a continuous gridline, the grout colour reads as part of the design rather than as an afterthought. Matching the grout tone to the tile face makes the floor read as one continuous surface, while a deliberate contrast tone would have made the grid more visible. The selection on this Elmwood project favoured the unified surface read.

Planning a coordinated kitchen and bath tile package in Elmwood or anywhere in north-east Edmonton? Call The Tile Experts at 587-333-9800 or request a quote.

Elmwood Multi-Room Tile FAQ

How much does a coordinated kitchen backsplash plus two bathroom rebuilds cost in Elmwood?
For a project of this scope (4 by 16 subway on the kitchen backsplash and both vanity splashes, 12 by 24 stacked porcelain on both bathroom floors, and a 12 by 24 stacked tub surround with a 24 inch mosaic insert), plan on 14,000 to 22,500 dollars in tile-scope labour and material, depending on tile selection.

Why pick a stacked layout over a 70/30 stagger on a 12×24 floor?
A stacked layout is the most architectural choice and reads as contemporary, while a 70/30 stagger reads as traditional running bond. The trade-off is that a stacked layout requires very tight tile flatness tolerances, because every joint becomes a continuous gridline across the room and any lippage is immediately visible. On a renovation where the homeowner is pulling the bath out of its original decade, the stacked layout is the design move that does it.

Is a 4×16 subway better than a 3×6 subway?
Better is the wrong frame. The 3 by 6 reads as classic and the 4 by 16 reads as contemporary. On an Elmwood renovation where the rest of the design moves contemporary (the stacked floors, the mosaic insert), the 4 by 16 is the consistent choice. See our kitchen backsplash service.

Tile Installation in Elmwood and East Edmonton

Elmwood sits north of 118 Avenue in east Edmonton, with neighbours in Beacon Heights, Rundle Heights, Bergman, and Beverly. Coordinated kitchen-and-bath tile packages, 4 by 16 subway installs, stacked 12 by 24 floors, and large-format tub surrounds with mosaic accents are some of the most common projects in this older housing stock. The Tile Experts install bathrooms, kitchens, floors, custom showers, fireplaces, and feature walls across Elmwood, Beverly, Rundle, and the rest of east Edmonton, plus the full capital region. Contact us or call 587-333-9800 for a free in-home walkthrough.
