Kerdi Tub Surround and Multi-Format Bathroom in Leduc
Leduc sits roughly 30 kilometres south of Edmonton along Highway 2, anchored by the airport corridor and a steady supply of mature 1980s and 1990s family homes that now line up for major bathroom rebuilds. On this Leduc renovation The Tile Experts handled the full tub surround and bathroom floor as a single coordinated scope: a Schluter Kerdi waterproofing membrane bedded against the wet substrate, a 12 by 24 porcelain bathroom floor, a 12 by 12 tile across the back wall and tub deck and skirt, and a 4 by 16 subway tile across the return walls, all laid in a single straight-lay pattern that ties the surfaces together as one calm composition.
Why a Kerdi Membrane on a Tub Surround
A tub surround sees less standing water than a walk-in shower, but the wall above the tub still gets soaked daily, every shower, year after year. Long-term, the wet-zone walls behind the tile need real waterproofing or they will fail. The Schluter Kerdi Membrane sheet membrane provides that protection: a fleece-laminated polyethylene sheet rolled into a polymer-modified mortar bed on the substrate, with seams sealed by Kerdi-Band and inside corners reinforced by preformed Kerdi-Kereck. The membrane wraps the back wall, the return walls, and the top of the tub deck into a continuous watertight envelope. Water that gets through the grout hits the membrane and runs back into the tub rather than soaking the wood framing behind the assembly.
The Three Tile Formats: 12×24 Floor, 12×12 Field, 4×16 Subway

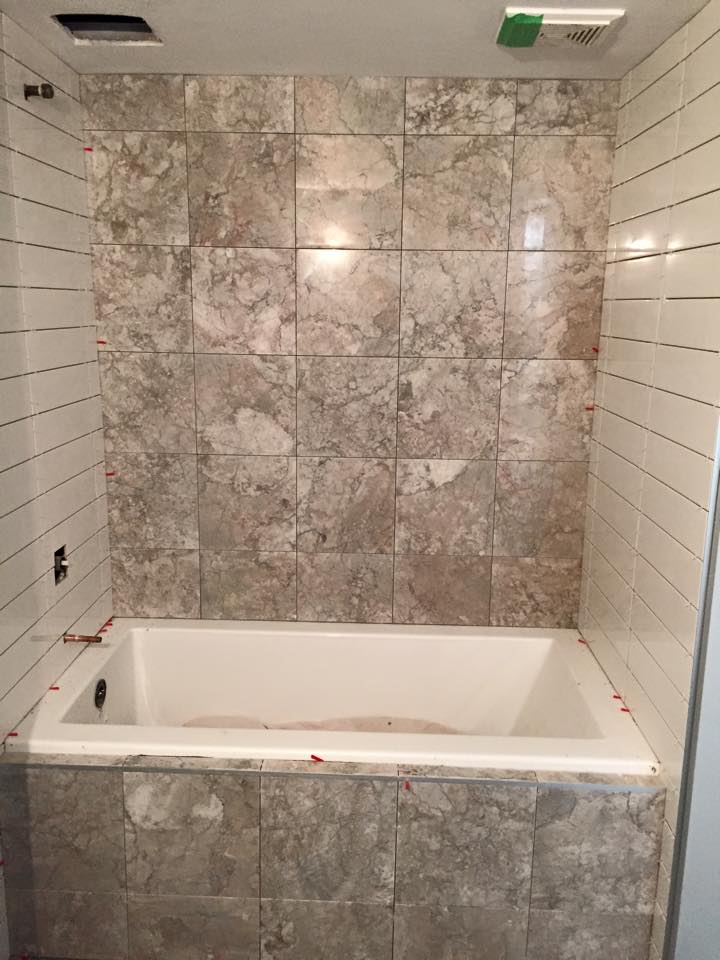

The Leduc bathroom uses three different tile sizes in a single coordinated design. The floor is a 12 by 24 porcelain laid in a straight lay, set with 253 Gold Laticrete Mortar. The back wall, tub deck, and tub skirt carry a 12 by 12 field in the same straight-lay pattern, set with Premium Plus Mortar. The return walls on either side of the back wall carry a 4 by 16 subway, also straight lay, set with the same Premium Plus. Running one pattern across three tile formats is what unifies the room. The eye reads the surfaces as one connected design instead of as three separate zones.
Premium Plus Mortar: Bond Coat for the Kerdi Assembly
The Kerdi membrane install and the 12 by 12 and 4 by 16 wall tile were all set with Premium Plus Mortar. Purpose: Premium Plus is a polymer-modified thinset that meets ANSI A118.11, which is the spec Schluter publishes for any Kerdi-system installation. Property: the mortar has the open time and body to roll a Kerdi sheet into the bond coat without trapping air, burnish the seams with a hand roller, then come back and set both the 12 by 12 field and the 4 by 16 subway over the membrane in the same product family. Relationship: using one polymer-modified bond coat across the membrane and the wall tile keeps the assembly chemically consistent above and below the waterproofing layer.
253 Gold Laticrete for the 12×24 Floor

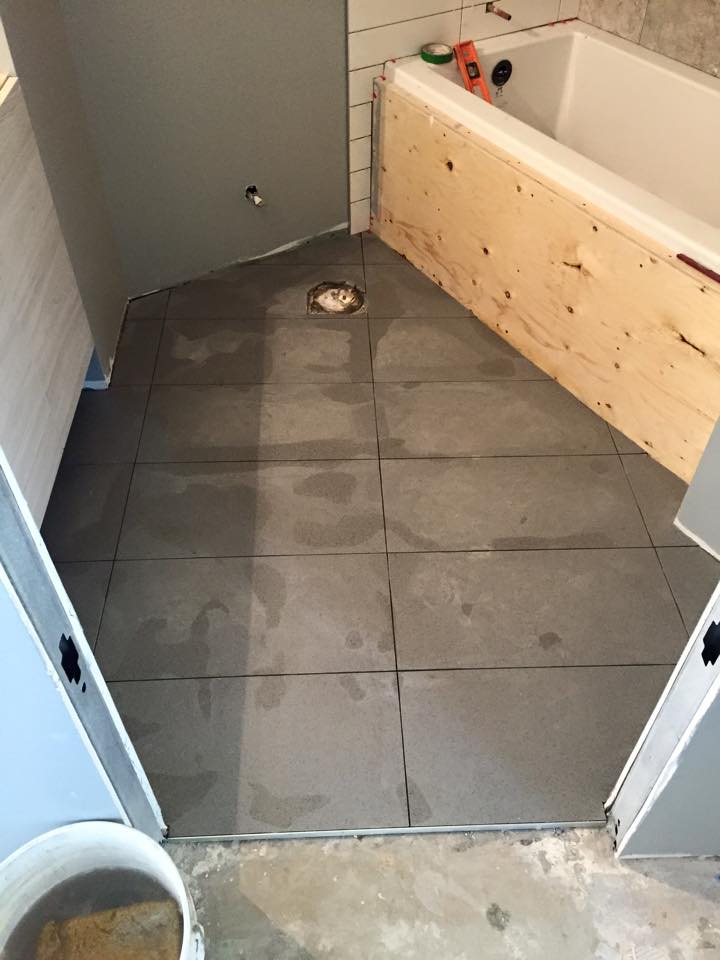

The 12 by 24 bathroom floor was set with 253 Gold Laticrete Mortar. Purpose: 253 Gold is a polymer-modified, large-format-rated mortar formulated for porcelain and natural stone on concrete and cement-board substrates. Property: the medium-bed capability tolerates minor variation in subfloor flatness so every 12 by 24 sits in a true plane against the substrate. Relationship: the LFT-rated formulation matters more on a 12 by 24 than on smaller floor tile because any drift in bond depth translates directly into visible lippage at the joint. The product is engineered specifically to prevent that on heavy and wide formats.
Planning a tub surround or full bathroom renovation in Leduc or anywhere south of Edmonton? Call The Tile Experts at 587-333-9800 or request a quote.
Layout: One Straight Lay Across Every Surface
The defining design choice on this Leduc bathroom is the single straight-lay pattern carried across all three tile formats. Every joint lines up vertically and horizontally on every surface. The 12 by 24 floor joints align with the 12 by 12 wall joints align with the 4 by 16 subway joints, because the layout starts from a common centerline and works outward from there. That kind of joint alignment is the most demanding layout discipline in residential tile because any drift in level, plumb, or tile dimension shows up immediately as a wandering joint. We snapped a laser reference at the floor-wall junction on every wall, verified the joint registration on every dry-fit, and committed each tile to the bond coat only after the registration was confirmed.
Grouting With Prism: One Colour Across Three Formats
The completed bathroom was grouted with Prism Grout. Purpose: one grout colour across the 12 by 24 floor, the 12 by 12 walls, and the 4 by 16 subway returns is what closes the design loop and makes the room read as one composition rather than three. Property: Prism is a calcium-aluminate grout that cures harder than standard portland-cement grout and resists efflorescence, which matters on any joint inside a wet-zone tub surround. Relationship: we matched the grout tone to the dominant porcelain face so the joint disappears into the tile and the straight-lay grid carries the visual story on its own.
Leduc Bathroom Renovation FAQ
How much does a Kerdi tub surround with multi-format tile cost in Leduc?
For a tub surround with full Kerdi waterproofing, a 12 by 24 floor, and a coordinated 12 by 12 plus 4 by 16 wall scope of roughly 80 to 130 square feet of tile, plan on 7,200 to 12,800 dollars in labour and material.
Why use three different tile sizes instead of one?
A multi-format design gives the room more visual rhythm than a single-tile room while staying restrained and contemporary. The straight-lay pattern is what keeps the three sizes reading as one design rather than as three competing zones.
How long does a full Kerdi tub surround renovation take?
For a project of this scope, plan on five to seven working days of tile work, plus a separate two to three days for plumbing rough-in and finish before and after the tile phase.
Tile Installation in Leduc and South of Edmonton
Leduc sits along the Highway 2 corridor south of Edmonton, anchored by mature housing in Linsford Park, Bridgeport, and West Haven plus newer growth on the south and east sides of the city. Bathroom rebuilds, tub surrounds, and Kerdi shower upgrades are some of the most common projects in this stock. The Tile Experts install bathrooms, kitchens, floors, custom showers, and feature walls across Leduc, Beaumont, Nisku, and the rest of south of Edmonton, plus the full capital region. Contact us or call 587-333-9800 for a free in-home walkthrough.
