Basement Bathroom Renovation in McConachie With a Fully Tiled Shower Ceiling
This McConachie basement bathroom is the kind of project where the homeowner asked the right question up front: “Can you tile the shower ceiling too, to stop steam damage?” The answer is yes, and the way we did it on this job shows the difference between a basement bathroom that holds up for 20 years and one that needs a redo in five. The build includes a 12 by 24 tile shower surround all the way up to the ceiling, a tiled shower ceiling backed by Schluter Kerdi waterproofing, a matching 12 by 24 bathroom floor, and a 3 by 6 subway tile vanity splash in a complementary tone.
Why Tile the Shower Ceiling in a Basement Bathroom?
Most contractors paint the shower ceiling with a moisture rated coating and call it done. That works for an upstairs bathroom with strong ventilation and a real exterior wall above. Basements are different. The space above the ceiling joists is usually unconditioned, sometimes unfinished, and any steam that escapes the shower cavity becomes a slow leak into the floor structure above. By tiling the ceiling over a waterproof membrane, you turn the shower into a fully sealed envelope. Steam condenses on the ceiling tile and runs back down into the shower instead of soaking into drywall. For a basement, that is the difference between a 20-year install and a callback.
Schluter Kerdi Membrane: The Waterproofing Layer Behind Every Surface

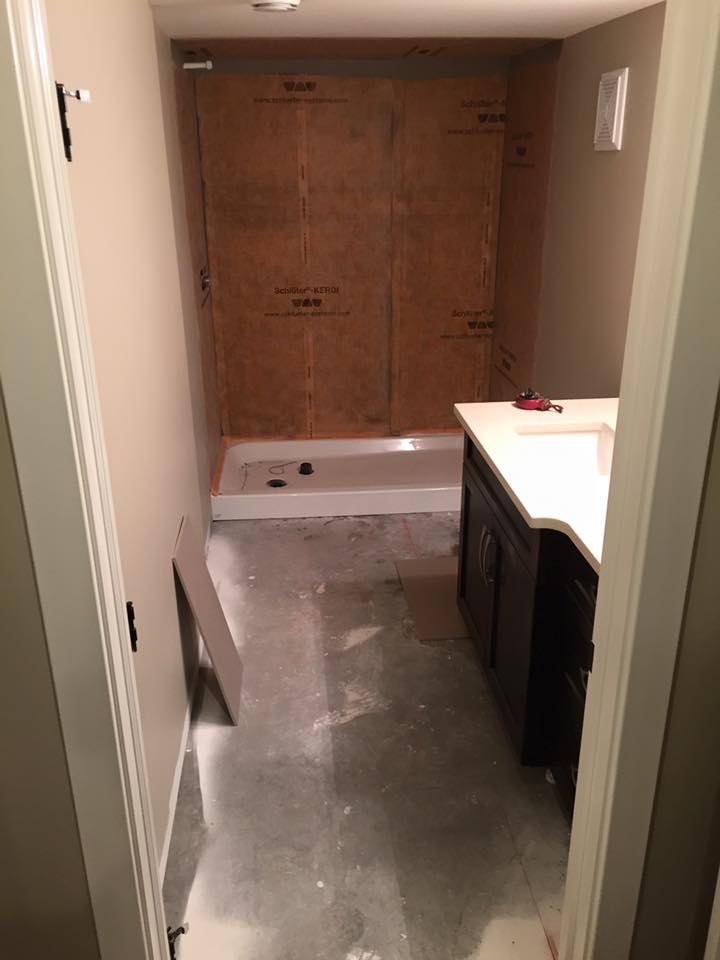

Before any tile went on the walls or ceiling, we installed Schluter Kerdi Membrane across the full shower envelope: floor, four walls, and ceiling. Purpose: Kerdi is a thin polyethylene sheet that creates a 100 percent vapor and water proof barrier behind the tile. Properties: it bonds to standard cement board or drywall with unmodified thinset, all seams are overlapped with Kerdi-Band, and corners get pre-formed pieces that eliminate site-cut weak spots. Relationship: the membrane integrates with the Schluter drain, the curb, and the corners as one continuous waterproof system. Skip any inch of it and you have created a failure point.
12 by 24 Shower Tile All the Way to the Ceiling (Plus the Ceiling)

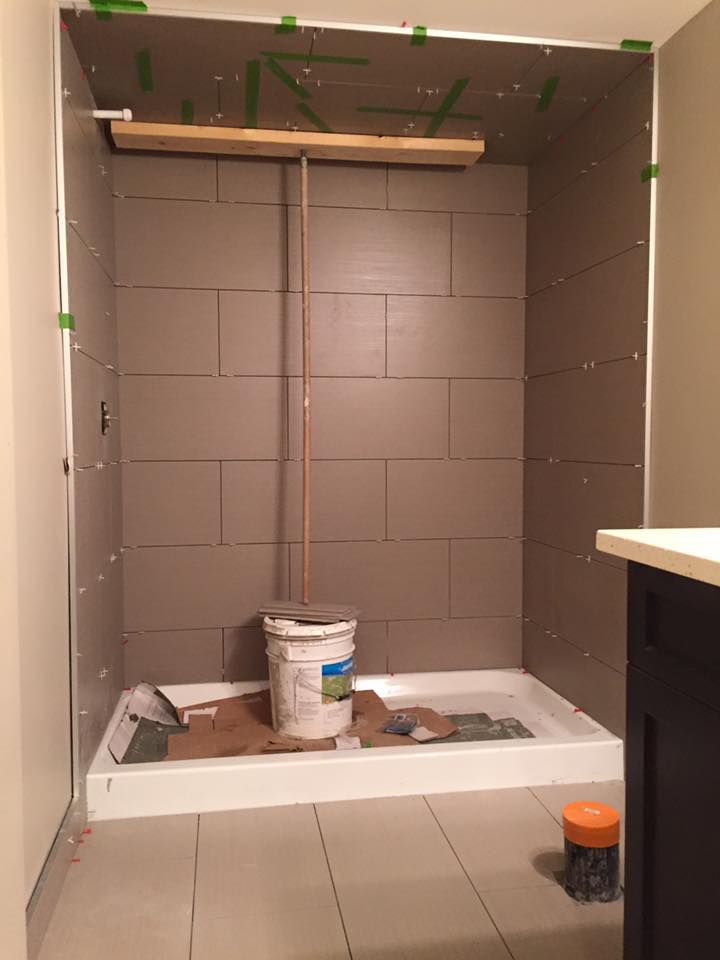

The shower tile is a 12 by 24 porcelain in a 50/50 brick lay pattern. Setting large format on a ceiling is harder than the wall by a factor of two. The tile wants to peel off under its own weight before the thinset cures. We worked from the back wall forward in roughly 4-foot sections, using Premium Plus Mortar as the bond coat, and propped each tile with a 2×4 brace until the thinset took. After about 90 minutes per section the brace came down and the next strip went up. That is the trick: never try to do the whole ceiling in one shot. See our bathroom tile installation page for more on shower assembly best practice.
Planning a basement bathroom in McConachie or anywhere in north Edmonton? Call The Tile Experts at 587-333-9800 or request a quote.
Bathroom Floor and Vanity Splash: Two Different Materials, One Coherent Design

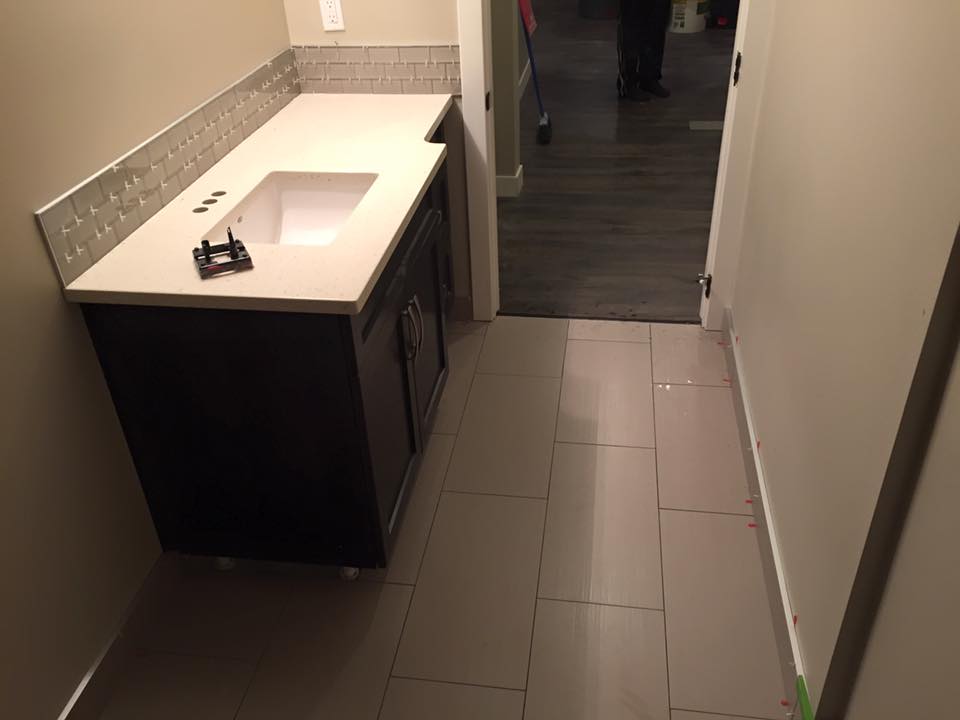

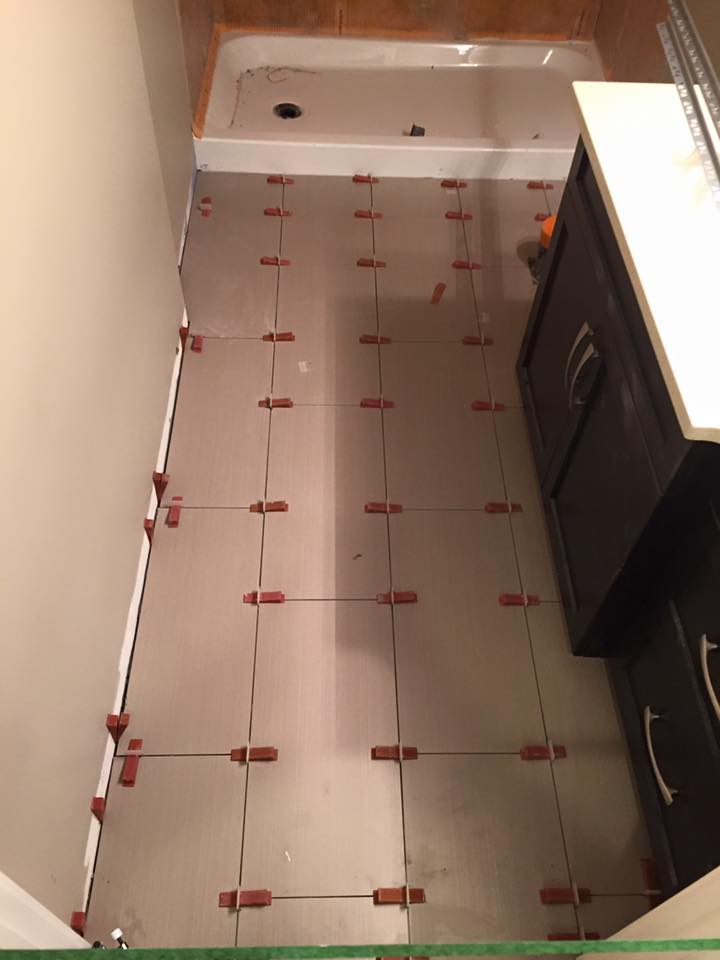

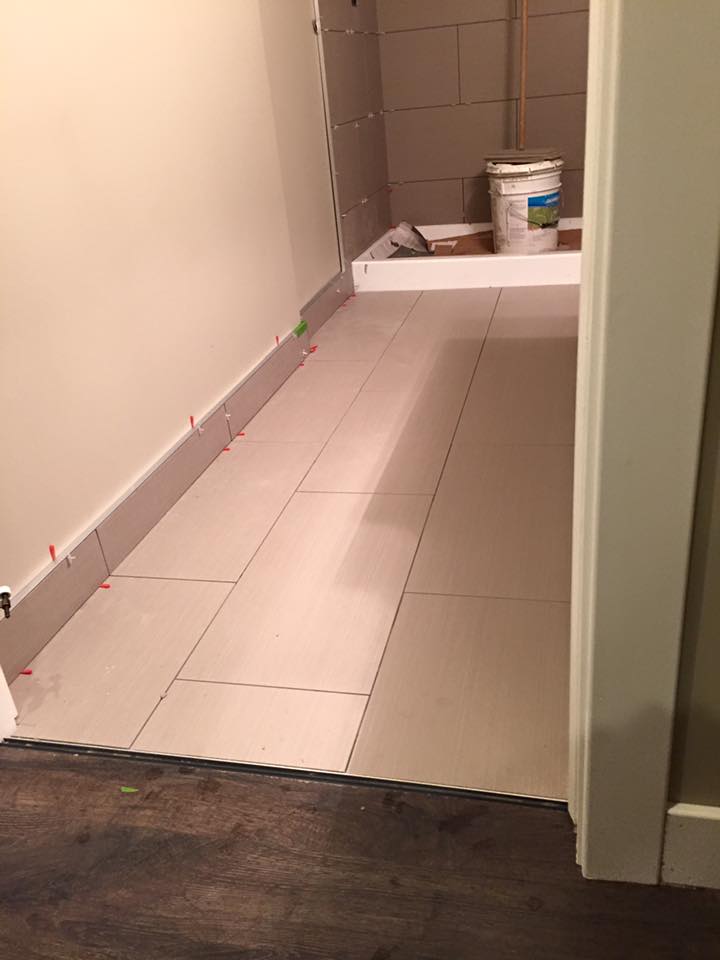

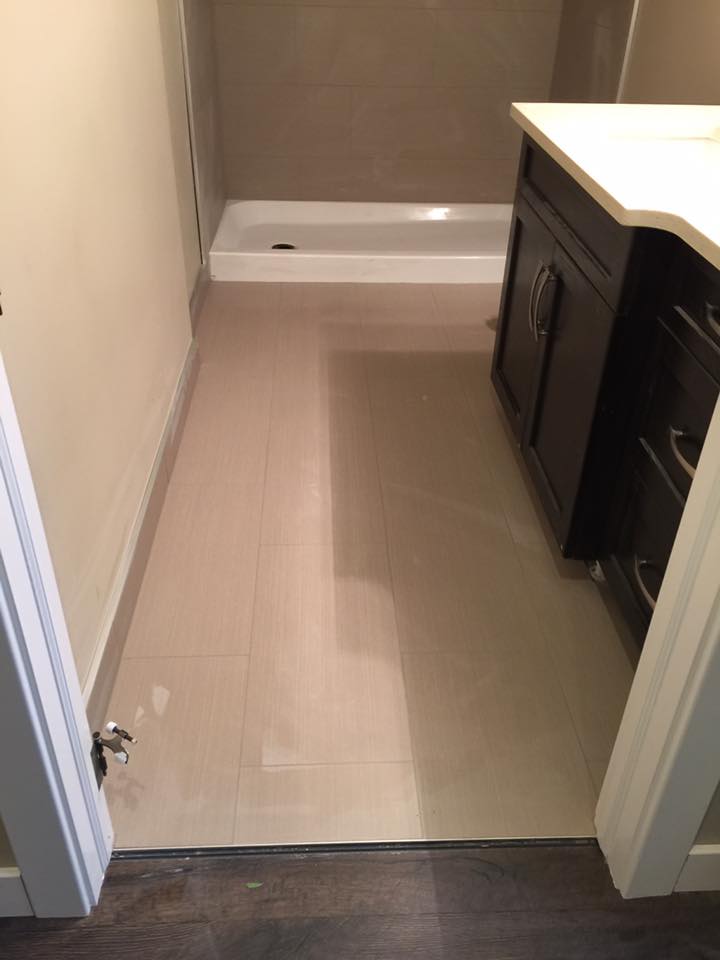

The bathroom floor used the same 12 by 24 porcelain that wraps the shower, but set in 253 Gold Laticrete Mortar with self-leveling tile clips at every corner. The clips are inexpensive plastic spacers that pull adjacent tiles into the same plane during cure, eliminating the millimetre or two of lippage that would otherwise catch a bare foot. The vanity backsplash is a 3 by 6 subway tile in a tonal complement, set with ReliaBond Tile Adhesive (a Type 1 mastic that is the right adhesive for a dry interior wall). The vanity splash was grouted with Mapei FlexColor Grout, an unsanded grout suited to the tight subway joint.
McConachie Bathroom Renovation FAQ
How long does a basement bathroom with a tiled ceiling take to install?
For a build of this size with Kerdi waterproofing, 12 by 24 walls including the ceiling, floor, and a vanity splash, plan on 8 to 12 working days. The ceiling tile slows the wall sequence by about a day and a half.
Will a basement bathroom shower leak through the slab if we use Kerdi?
Kerdi is a surface-applied waterproof membrane that performs in any orientation including basement applications. Combined with a Schluter drain and the proper curb detail, the assembly is rated for permanent wet exposure. The slab below stays dry.
Can we use the same tile on the floor as the shower walls?
Yes, as long as the slip resistance rating on the floor side is appropriate. A textured-finish porcelain rated for wet area floors works on both walls and the floor; a polished tile should stay on walls only.
Bathroom Renovation in McConachie and North Edmonton
McConachie is a fast growing northeast Edmonton community with a strong stock of 2010s and newer homes that are now reaching the age where basement build-outs are common. A finished basement bathroom can add real resale value, especially when the build is done with proper waterproofing instead of the painted-drywall shortcut. The Tile Experts install basement bathrooms, ensuites, and bathroom renovations across McConachie, Schonsee, Crystallina Nera, and the rest of north Edmonton, plus St Albert, Sherwood Park, and the surrounding capital region. Contact us or call 587-333-9800 for a free walkthrough.
