Heated Floor Tile and Kitchen Backsplash in Sherwood Park, Edmonton
This Sherwood Park kitchen got a heated porcelain floor and a custom subway tile backsplash over a Schluter Ditra-Heat assembly. The slab dipped around the island and rose unevenly toward the cabinets, so the project began with full tile demolition and surface preparation. The finished build: levelled subfloor, uncoupling membrane with electric heating cable, 12 by 12 porcelain field tile, and a 3 by 6 subway backsplash that mirrors the floor pattern.
What is a heated tile floor in Edmonton’s climate?
A heated tile floor is a radiant warming system installed under porcelain or ceramic tile, where an electric cable or hydronic loop sits inside an uncoupling membrane and warms the tile from below. Edmonton and Sherwood Park homes run through 130-plus freeze thaw cycles a year, which is the kind of substrate movement that breaks unheated installs without an uncoupling layer. Radiant tile flooring in Alberta is not just a comfort upgrade. It is the membrane that keeps porcelain from cracking when the slab moves.
Levelling the Subfloor With LevelQuik RS

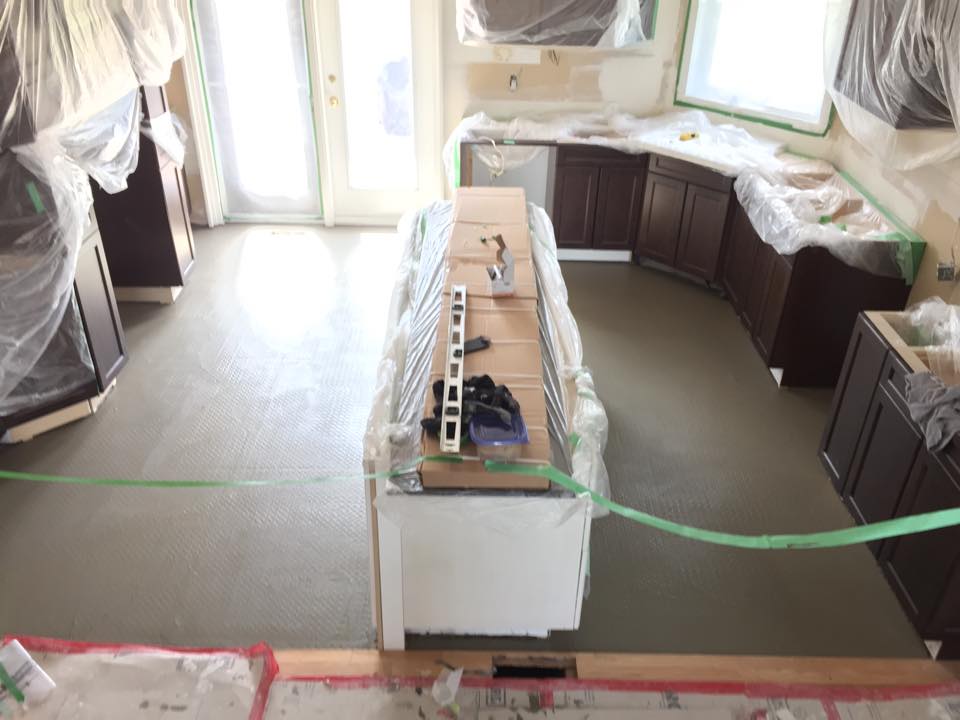

Step one was bringing the substrate back to a flat plane with LevelQuik RS Self-Leveling Underlayment. Purpose: it creates the uniform base that meets the deflection limit a tile assembly needs. Property: a polymer modified, fast curing, self smoothing underlayment that flows into low spots and walks-hard within 4 hours. Relationship: this base is what allows the uncoupling layer above to bond cleanly and what prevents hollow spots from forming under the porcelain years down the road.
Schluter Ditra-Heat Uncoupling and In-Floor Warming

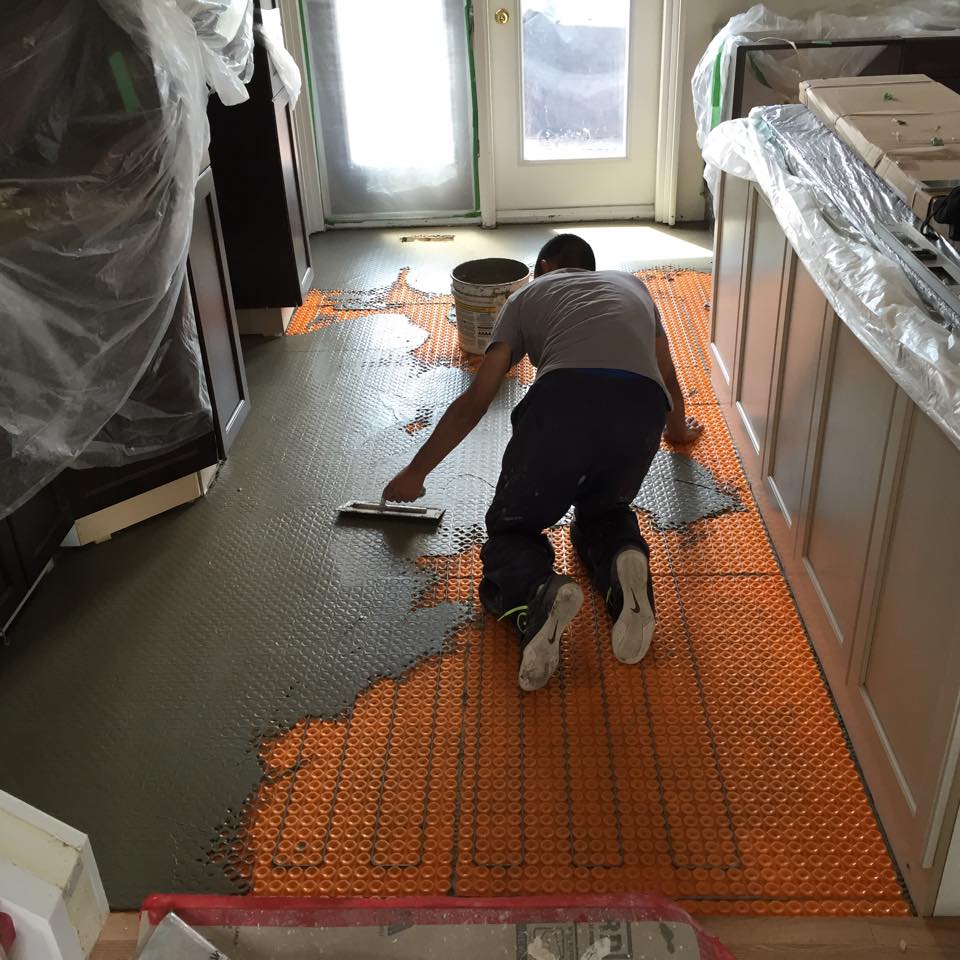

Next came Schluter Ditra-Heat Membrane, a polyethylene matrix that doubles as an uncoupling layer and a carrier for electric heating cable. Purpose: it isolates the porcelain from minor substrate movement while routing radiant heat upward. Property: square stud columns lock the heating element in a controlled mortar bed, and the geotextile fleece grips thinset for a strong bond. Relationship: the membrane ties the LevelQuik base to the porcelain above, which is why heated tile floors hold up to Alberta freeze thaw cycles. We energized the cable and verified continuity before any tile went down. That circuit test is the part of our process for heated tile surfaces that catches faults before they get buried under grout. After the test we top coated the membrane with a layer of Premium Plus Mortar.
Electric Cable vs Hydronic vs Mat Systems
Radiant floor heating comes in three forms. Hydronic loops pump heated water and need a boiler, which suits new construction. Pre-built electric mats are fast but locked to a fixed footprint. The cable system used here, fed through the Ditra-Heat membrane, is what we recommend for retrofits because the cable spacing is field adjustable around cabinets, islands, and toe kicks. That flexibility is why one Schluter assembly worked for both the open floor and the tight zone around the kitchen island.
Ready to plan your project? Call The Tile Experts at 587-333-9800 or request a quote online.
12 by 12 Porcelain Floor Tile in a 50 50 Brick Pattern

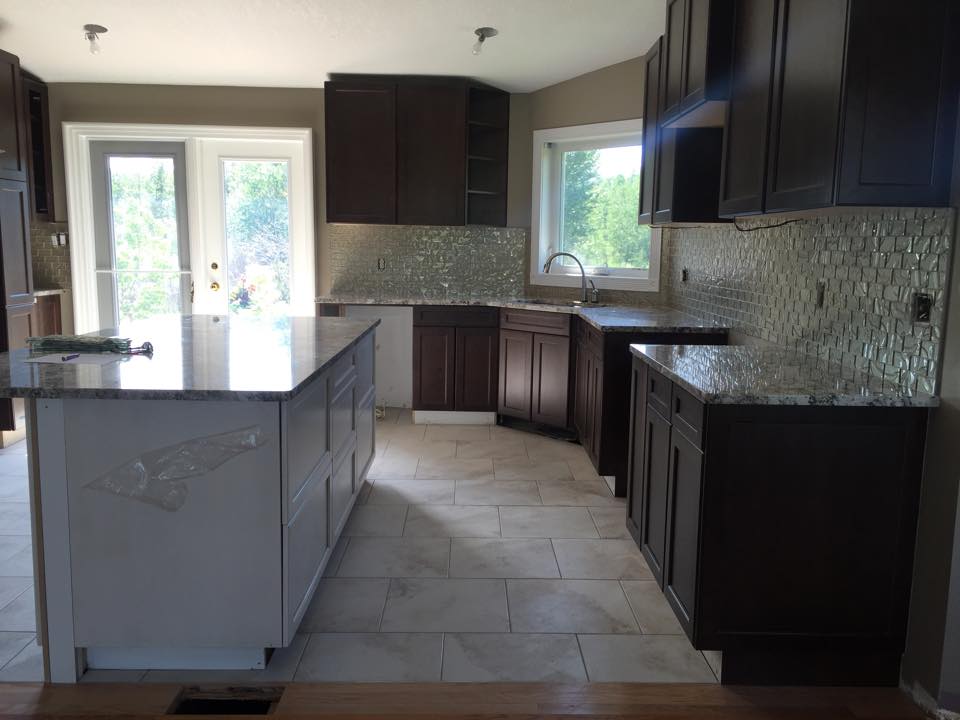

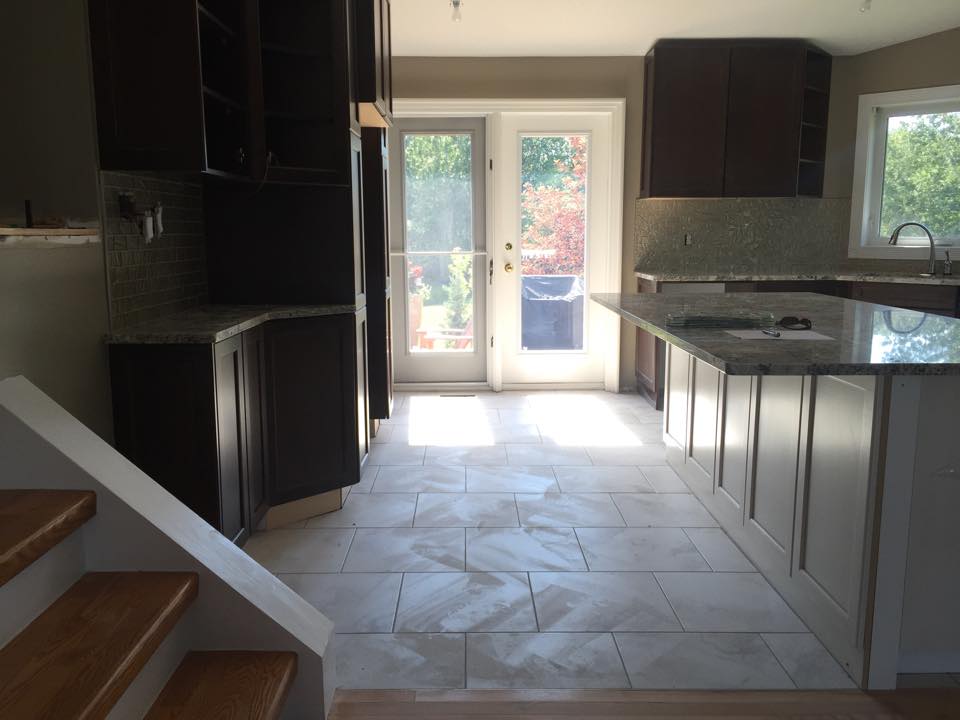

The floor tile was a 12 by 12 porcelain field tile in a 50 50 brick lay pattern. Purpose of the pattern: it breaks up sight lines and hides minor substrate variation. Property of the tile body: porcelain is dense, low porosity, and dimensionally stable, which is what you want over a heated assembly that expands and contracts through seasonal cycles. Relationship to the room: the larger format means fewer grout joints and a finished surface that complements the cabinetry and island. The bond coat was Premium Plus Mortar, troweled at the correct notch for full back coverage. See our floor tile installation services for similar work.
3 by 6 Subway Tile Kitchen Backsplash
The backsplash used a custom 3 by 6 subway tile in a 50 50 brick lay pattern that mirrors the floor geometry. Purpose: the smaller module wraps tightly around outlets and corners. Property: a glossy ceramic glaze that throws light back into the kitchen and wipes clean without sealing. Relationship: matching the brick offset between floor and backsplash ties the two tiled planes into one continuous design. We bonded the wall tile with ReliaBond Tile Adhesive. Visit our kitchen backsplash page for more examples.
High Performance Grout and Final Finish
Every joint on both the floor and the backsplash was filled with Prism Grout, a color consistent, stain resistant cement grout engineered for both floors and walls. Property: efflorescence free with a tight, dense cure that resists shading. Relationship: this is the visible thread that ties the porcelain field, the subway backsplash, and the heated floor performance into one finished surface.
Frequently Asked Questions
How long does a heated tile floor install take?
For a kitchen this size with Ditra-Heat, levelling, tile, and grout, plan on 5 to 7 working days. Cure times are the bottleneck, not the labour.
What does a heated kitchen floor cost in Edmonton?
The membrane and cable add roughly 12 to 20 dollars per square foot to a tile job, plus an electrical hookup. Total varies with tile selection and kitchen footprint.
Will a Ditra-Heat floor crack in Alberta winters?
The membrane is engineered for exactly the freeze thaw movement Alberta produces. Cracks trace back to substrate deflection or a skipped uncoupling layer, not the porcelain.
Tile Installation in Sherwood Park and Greater Edmonton
Sherwood Park sits in Strathcona County just east of Edmonton, with roughly 74,000 residents and the same climate zone 3a winters as the rest of the capital region. The Tile Experts install heated floors, backsplashes, bathrooms, and feature walls across Sherwood Park, Edmonton, St Albert, Beaumont, and Spruce Grove. Contact us or call 587-333-9800 for a free walkthrough and quote.
