Tile Installation Edmonton in South West Of Spruce Grove

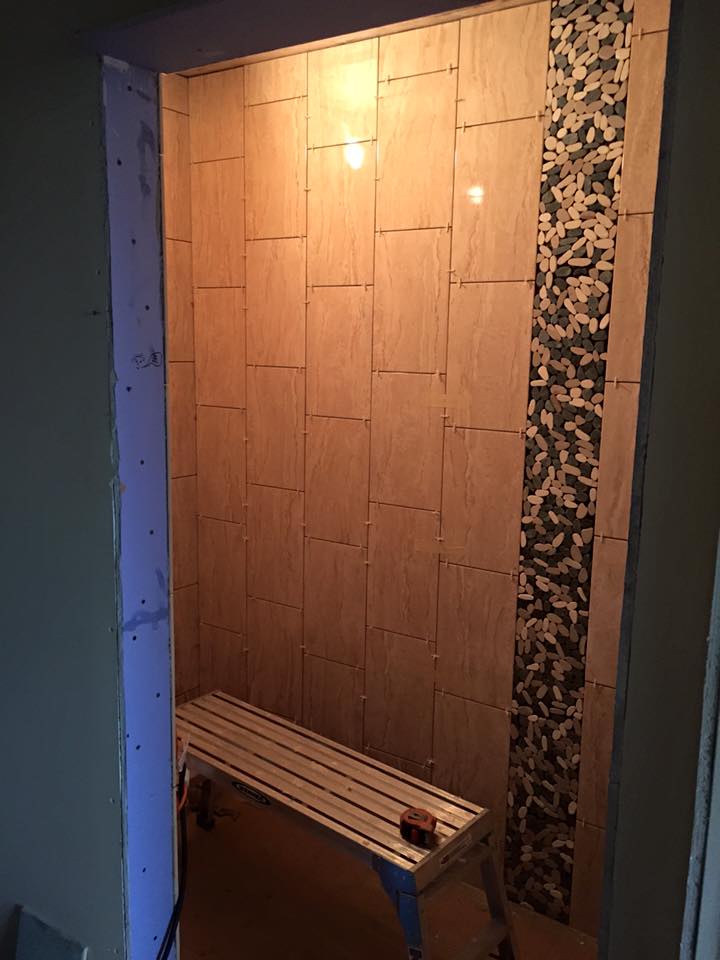

Large 12×24 Shower With Waterfall Mosaic in Spruce Grove

Spruce Grove sits west of Edmonton along the Yellowhead Highway corridor, and the southwest quadrant of the city is one of the area’s most active renovation markets. Homes here often started as 1990s family builds and are now hitting the major bathroom refresh phase. This renovation called for a large walk-in shower clad in 12 by 24 porcelain in a 70/30 staggered pattern, anchored by a 6-inch waterfall mosaic that runs vertically from the ceiling, cascades down the wall, and continues across the shower floor as a single uninterrupted feature. The Tile Experts handled the demolition, substrate prep, layout, and finish on a shower that has to function as a daily wet zone and as the visual centrepiece of the bathroom.

The Waterfall Mosaic: A Single Design Element That Earns Its Cost

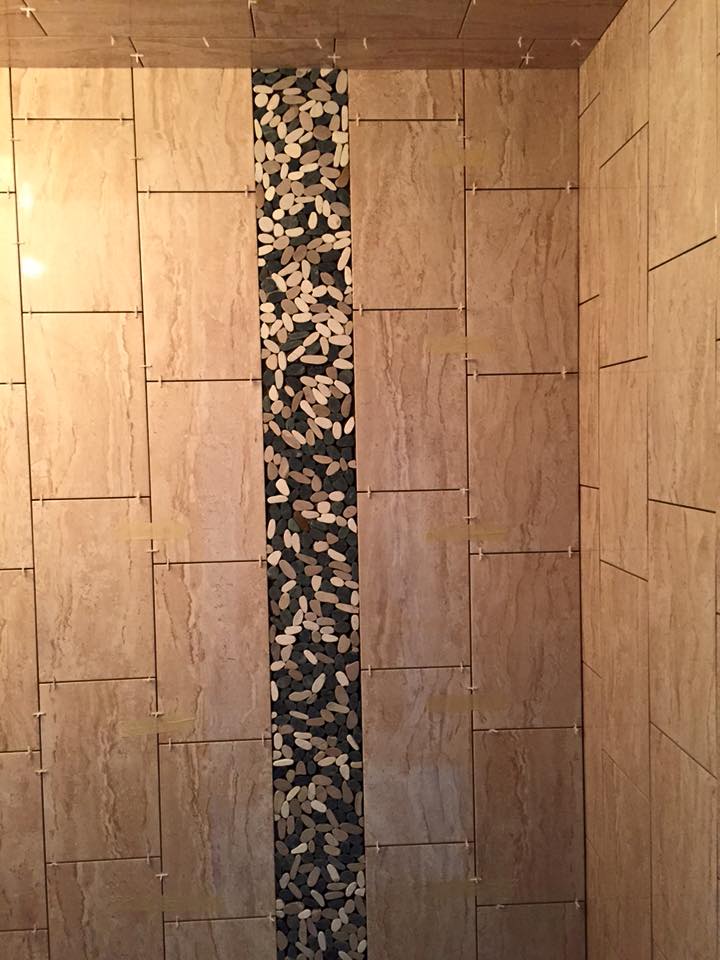

The waterfall mosaic is the kind of detail that turns a competent shower into a memorable one. A 6-inch-wide vertical band of mosaic runs from the ceiling line down the back wall and folds across the shower floor in a continuous strip, framed on both sides by the larger 12 by 24 field tile. The effect reads like water itself: a narrow ribbon of texture and movement set against a calm, flat field. Done well, it accomplishes three things. It gives the shower a focal axis so the eye reads the space as composed rather than just tiled. It hides the centerline drain in the visual continuation of the mosaic band, which is one of the cleanest ways to handle linear drain integration. It links wall and floor as one finished surface rather than as two adjacent zones meeting at a corner.

Why a 70/30 Stagger on 12×24 Porcelain

The 70/30 stagger on 12 by 24 large-format porcelain is the layout the Tile Council of North America recommends specifically because of the slight bow that porcelain tiles develop along their long axis during kiln cooling. A standard 50/50 brick lay puts the high point of each tile directly against the low point of its neighbour at every joint, which produces visible lippage on a wall that should read flat. A 70/30 offset breaks that alignment so the bow on one course never meets the bow on the next at the same point. The wall reads dramatically flatter. On a shower at eye level this difference is what separates a high-end install from a builder-grade one. We held the 70/30 with consistent spacers and verified the plane with a four-foot level on every third course.

VersaBond Mortar: Setting Both the 12×24 Field and the Mosaic Strip

The full assembly (12 by 24 field, waterfall mosaic, and floor mosaic) was set with VersaBond Mortar. Purpose: VersaBond is a polymer-modified professional-grade thinset rated for porcelain and natural stone on cement-board and waterproofing-membrane substrates, which is the correct substrate stack for a custom shower enclosure. Property: the polymer modification gives the bond coat the flex it needs to absorb the thermal cycling of daily hot showers without telegraphing as a hairline crack at the joint. Relationship: using a single setting material across the 12 by 24 field and the mosaic strip means the bond layer behind every tile cures to the same elevation, which keeps the mosaic band flush with the surrounding field rather than stepping forward or sinking back at the transition.

Planning a custom shower in Spruce Grove or anywhere west of Edmonton? Call The Tile Experts at 587-333-9800 or request a quote.

Grouting the Shower: One Color Across Field and Mosaic

The completed shower was grouted with Prism Grout. Purpose: running one grout colour across the 12 by 24 field and the mosaic band unifies the shower as one composition; switching colours at the band would have fragmented the design. Property: Prism is a high-performance, stain-resistant grout that cures harder than standard cement grout and holds its colour through the daily humidity cycling of an active shower. Relationship: we matched the grout tone to the dominant porcelain colour so the joint disappears into the field and the mosaic band carries the visual story on its own. Grouting a mosaic strip is slower than a field tile because every small mosaic piece has more linear joint per square foot, so the work was done in deliberate passes with frequent sponge rinses to keep haze off the tile face.

Spruce Grove Shower Renovation FAQ

How much does a 12×24 shower with a waterfall mosaic cost in Spruce Grove?
For a large walk-in shower of 60 to 100 square feet in 12 by 24 porcelain with a vertical and floor mosaic feature, plan on 7,500 to 13,000 dollars in labour and material, depending on tile selection, drain configuration, and any glass or hardware coordination.

How long does a large shower renovation take from demolition to finish?
For a full custom shower with new waterproofing, plan on five to eight working days of tile work, plus a separate two to three days for plumbing and glass coordination before and after the tile phase.

Can the same waterfall mosaic concept work in a smaller bathroom?
Yes. The mosaic band scales down well to a standard 36-inch alcove shower; the proportion of band-to-field stays similar, and the effect is just as strong in a smaller footprint. The cost adjusts proportionally to the tile area.

Tile Installation in Spruce Grove and West of Edmonton

Spruce Grove is one of the fastest-growing communities west of Edmonton, with a mix of mature 1990s neighbourhoods in the southwest and newer developments in McLaughlin, Hawthorne, and Spruce Village. Bathroom renovations are some of the most common projects in this housing stock, often paired with a kitchen update or basement finish. The Tile Experts install custom showers, bathrooms, kitchens, floors, and feature walls across Spruce Grove, Stony Plain, Parkland County, and the rest of the western capital region. Contact us or call 587-333-9800 for a free in-home walkthrough.
