Bathroom Renovation Edmonton in Beaumont: Kerdi Shower (#2)

A 6×48 Plank Main Floor With a Kerdi-Waterproofed 12×24 Ensuite and Mosaic Backsplashes in Beaumont

This Beaumont new build is a full multi-format whole-house tile package: a 6 by 48 plank porcelain in a long-format wood-look pattern across the entire main floor, a Schluter Kerdi waterproofed ensuite with a 12 by 24 staggered wet-zone and jacuzzi surround, mosaic accent surfaces on the kitchen backsplash, the laundry, and the bathroom vanity splashes, and a coordinated bond coat strategy across every surface. The Tile Experts laid the 6 by 48 plank with self-leveling clips to eliminate lippage, bonded a Schluter Kerdi Membrane with Premium Plus Mortar before any wet-zone tile, set the 12 by 24 in the shower with Premium Plus and the bathroom floor and jacuzzi with VersaBond Mortar, set the mosaic backsplash and vanity splashes with ReliaBond Tile Adhesive, and grouted the entire package with Prism Grout.

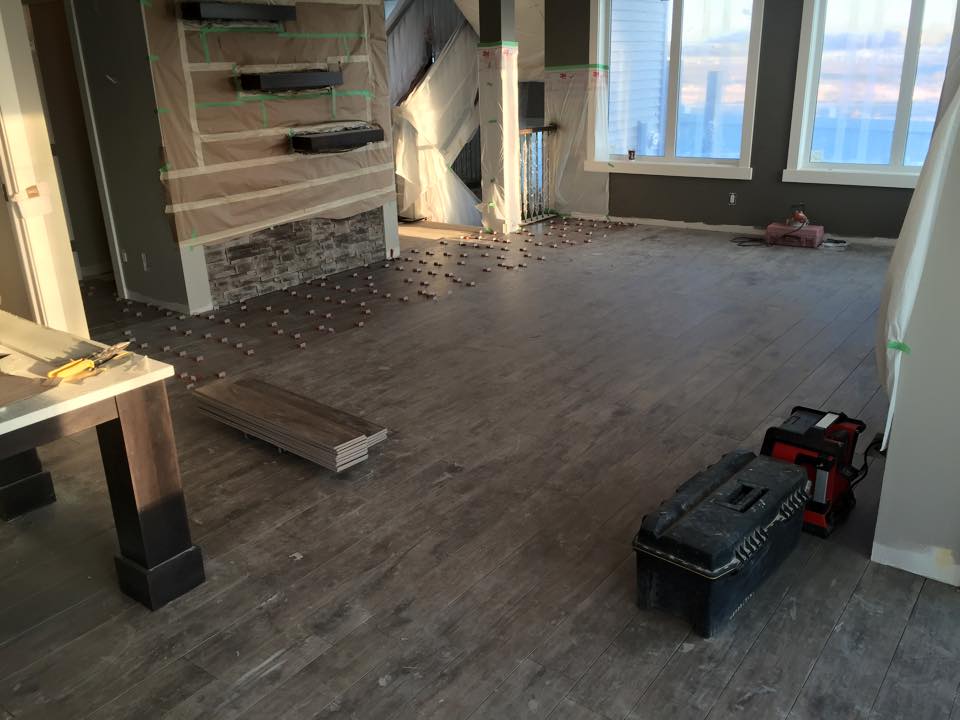

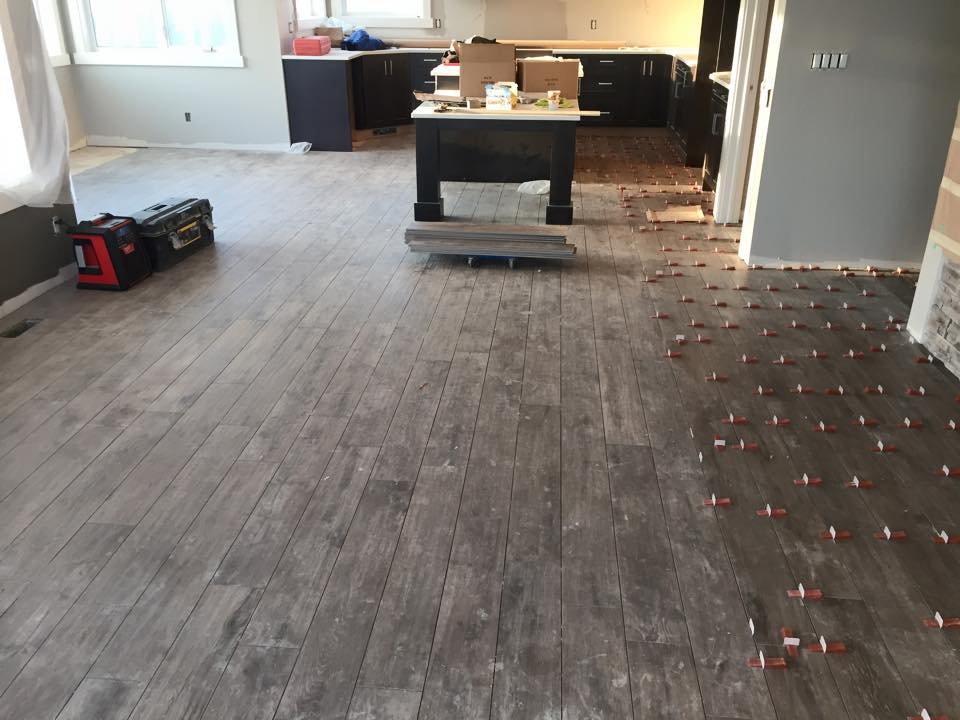

Why a 6×48 Plank With Self-Leveling Clips Is the Right Spec for an Open Main Floor

The largest tile in the package is a 6 by 48 porcelain plank running across the entire main floor in a hardwood-style plank pattern. What a 6×48 plank delivers at main-floor scale: a wood-plank proportion in a porcelain body, with the narrow 6 inch width and long 48 inch length producing a floor reading similar to wide-plank engineered hardwood, but with the moisture tolerance, dimensional stability, and traffic durability that hardwood cannot deliver at the entrance, the kitchen, or any room that sees water exposure. Why the 48 inch length is the critical dimension: a 48 inch tile is long enough that any warp or bow in the tile body (which every porcelain plank has to some degree, because it is a fired ceramic that comes out of the kiln with millimetres of variation across the length) produces visible lippage at the joint corners if not actively controlled during installation. Back-buttering the bond coat alone cannot guarantee that two adjacent planks finish flush at the joint, because each plank carries its own warp profile. What self-leveling clips do during installation: the clips physically lock the joint corners between two adjacent planks at the same elevation across the cure cycle of the bond coat, forcing the warp to flatten out across the joint rather than producing a lippage step. The clips stay in place until the bond coat has fully cured, then get snapped off and the joint reads flat. Why this is the standard for any plank format over 24 inches: the manufacturer warranty on a 6 by 48 plank typically requires a leveling system to be valid, and the failure mode without clips (joint corner lippage) is the single most common warranty claim on plank-format tile. The two-part discipline (LFT-rated bond coat plus self-leveling clips) is what produces a flat plank-tile main floor.

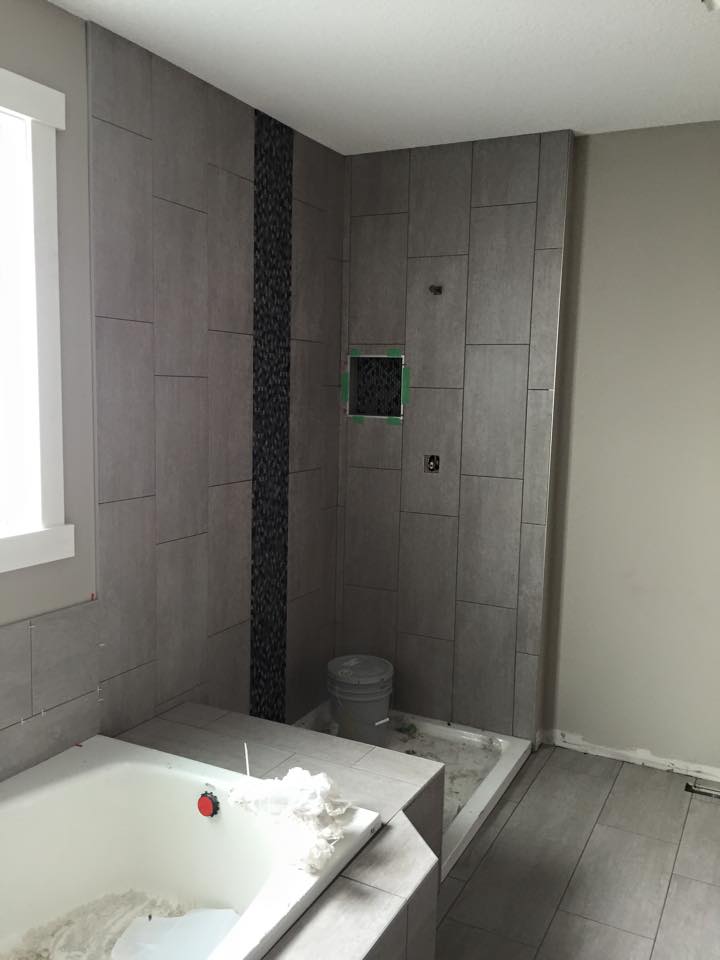

Why the Ensuite Switches to a 12×24 Inside a Kerdi-Waterproofed Wet-Zone

The ensuite tile spec moves to a 12 by 24 in a 70/30 staggered pattern, with the shower built over a Schluter Kerdi membrane bonded to the substrate with Premium Plus. Why the format changes between main floor and ensuite: the 6 by 48 plank reads as a hardwood floor reference, which is the right design language for the main living zones but the wrong one for a wet-zone ensuite where the design reference should be premium bathroom rather than living-room hardwood. The 12 by 24 in the ensuite holds proportion against the bathroom geometry while signalling that the ensuite is a separately specified design zone. What the Kerdi assembly does in the shower: bonds a polyethylene waterproofing sheet to the substrate with Premium Plus, with the seams sealed by Kerdi Band and the corners detailed with Schluter preformed pieces. The result is a continuous waterproof envelope behind the shower tile, where any future grout-joint aging stops at the membrane rather than migrating into framing. Why Premium Plus inside the shower and VersaBond outside: Premium Plus is the polymer-modified thinset Schluter rates for Kerdi installations, with chemistry coordinated for both the membrane bond and the tile bond on top of the membrane. VersaBond on the bathroom floor and the jacuzzi surround is the calibrated chemistry for splash-and-occasional-water surfaces outside the continuous wet-zone envelope. Why the 70/30 stagger on the 12×24: the 70/30 offset varies joint placement across the wall and floor, avoids the centre-bow lippage risk of a 50/50 brick lay on the 24 inch dimension, and reads as more contemporary than a 50/50 while staying more conservative than a stacked lay. The 70/30 is the middle-path pattern that holds proportion against the 12 by 24 format.

Why Mosaic Accent Surfaces Across Kitchen, Laundry, and Bathroom Vanities

The accent surfaces in the package (kitchen backsplash, laundry, bathroom vanity splashes) are all run in mosaic format and set with ReliaBond Tile Adhesive. What a mosaic accent delivers in a multi-format house: a small-format textural counterpoint to the large-format plank floor and the medium-format 12 by 24 wet-zone, giving the eye three distinct format scales (small, medium, large) coordinated across the house. The three-scale composition produces a more designed reading than a single-format package would deliver, because the format hierarchy itself becomes a design element. Why the same mosaic across kitchen, laundry, and vanities: running one mosaic specification across all three accent zones produces a material-continuous reading at the accent level of the house, mirroring the material-continuous reading of the 6 by 48 plank across the main floor. The accent surfaces are coordinated rather than improvised room-by-room. Why ReliaBond on mosaic accent surfaces: ReliaBond is the Type 1 organic mastic engineered for dry-zone vertical interior walls, with immediate grab that holds small-format mosaic in place without sliding during installation, and generous open time that matches the install workflow of cutting mosaic sheets to fit around switches, outlets, and edge transitions. ReliaBond also avoids the staining risk that some portland-cement thinsets can introduce on mosaic facets that have any porosity at the face. Why a separate bond coat for the accents rather than one chemistry house-wide: each surface in the package has its own chemistry-to-environment match. LFT-rated chemistry plus leveling clips on the plank floor, Premium Plus inside the Kerdi shower, VersaBond on the splash-zone bathroom surfaces, ReliaBond on the dry-zone vertical mosaic accents. Running one bond coat across all four environments would have to compromise somewhere.

Planning a multi-format whole-house tile package with a 6 by 48 plank main floor, a Kerdi-waterproofed 12 by 24 ensuite, and coordinated mosaic accent surfaces in Beaumont or anywhere south of Edmonton? Call The Tile Experts at 587-333-9800 or request a quote.

Beaumont Whole-House Multi-Format FAQ

How much does a multi-format whole-house tile package with a 6×48 plank main floor, a Kerdi-waterproofed 12×24 ensuite, and mosaic accents cost in Beaumont?
For a project of this scope (6 by 48 plank with LFT-rated bond coat and self-leveling clips across the full main floor, Schluter Kerdi membrane in the shower bonded with Premium Plus, 12 by 24 porcelain in a 70/30 staggered pattern across shower, jacuzzi, and bathroom floor with Premium Plus in the shower and VersaBond outside, mosaic accent surfaces in kitchen, laundry, and vanities set with ReliaBond, full Prism grout finish), plan on 22,000 to 38,000 dollars in tile-scope labour and material, with main floor square footage and the format-count overhead as the primary cost drivers.

Why are self-leveling clips required on a 6×48 plank?
A 48 inch porcelain plank carries warp variation across its length that back-buttering alone cannot flatten. Self-leveling clips physically lock adjacent joint corners flat across the cure cycle, eliminating the lippage step that would otherwise read at every plank joint.

Why use four different bond coats in one house?
Each surface has its own chemistry-to-environment match: LFT-rated chemistry on the plank floor, Premium Plus inside the Kerdi shower, VersaBond on splash-zone surfaces, ReliaBond on dry-zone vertical mosaic. Matching chemistry to environment delivers full warranty performance in every zone. See our floor tile installation service.

Tile Installation in Beaumont and South of Edmonton

Beaumont sits south of Edmonton in Leduc County along the Highway 814 corridor, with neighbours in Nisku, Devon, Leduc, Calmar, and the southside Edmonton communities of Walker Lakes, Summerside, and Tamarack across the boundary. Multi-format whole-house tile packages combining large-format plank flooring, Kerdi-waterproofed ensuites, large-format wet-zone walls, and mosaic accent surfaces are some of the most demanding projects in this 2010s and 2020s premium move-up family-build market. The Tile Experts install bathrooms, kitchens, floors, custom showers, fireplaces, and feature walls across Beaumont, Nisku, Devon, Leduc, Calmar, and the rest of the south capital region, plus all of Edmonton. Contact us or call 587-333-9800 for a free in-home walkthrough.
