Bathroom Renovation Edmonton: Mosaic Tile in Brentwood

A 12×24 Wet-Zone Spec Plus a 24×24 Large-Format Floor in Brentwood

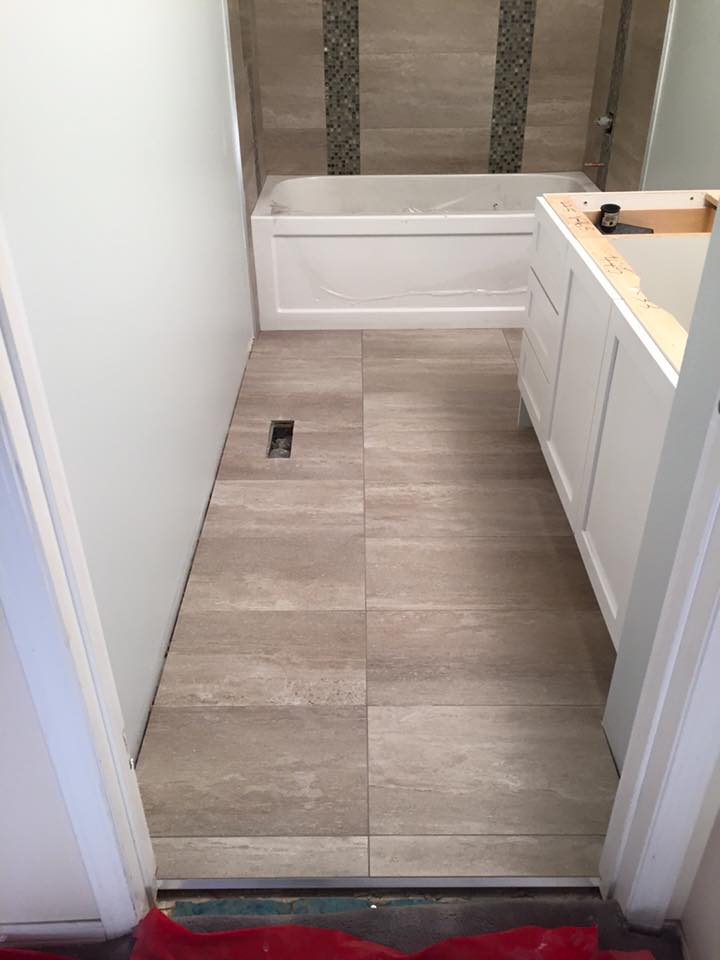

Brentwood is an established central Edmonton residential neighbourhood with a housing stock that runs from late-1950s post-war bungalows through 1970s and 1980s split-levels and infills, now well into its second and third renovation cycles. Bathroom renovations in Brentwood homes typically replace original 1970s and 1980s wall tile and floor tile that has aged out of every contemporary design language, and the homeowners want a renovation that resets the bathroom for the next 20 to 30 years rather than a refresh that will need to be redone in a decade. On this Brentwood renovation The Tile Experts ran a two-bathroom scope: the ensuite jacuzzi tub and stand-up shower plus the main bathroom tub surround in 12 by 24 tile with a 6 inch mosaic insert (set with VersaBond Mortar), and both bathroom floors in 24 by 24 large-format tile (set with VersaBond LFT Mortar), all in a straight lay and grouted with Prism Grout.

Why a 12×24 Wall Spec Plus a 24×24 Floor Spec Is the Right Brentwood Renovation Move

The renovation specifies a 12 by 24 tile on the walls and a 24 by 24 tile on the floors, with both formats installed in the same straight lay pattern. Why two formats rather than one across both surfaces: a 24 by 24 on a typical residential shower wall reads as oversized, because the wall surface area in a standard bathroom shower is small enough that a 24 by 24 produces only a few full tiles per wall, with the rest of the surface as edge cuts. A 12 by 24 on the wall reads at the right scale for a residential bathroom wall, with enough full tiles to register as a continuous tiled surface. On the floor, a 24 by 24 reads as architectural and contemporary, with fewer joints per square foot than a 12 by 24 (and dramatically fewer than a 12 by 12), which gives the floor a calm, expansive presence that matches a renovation budget aimed at resetting the bathroom for decades. Why the same straight lay across both: the joint grid on the walls visually connects to the joint grid on the floors at the transition point (typically the base of the shower or the perimeter of the tub surround), and a straight lay across both surfaces produces the cleanest connection. A brick lay or staggered lay would have introduced an additional design element at the transition that would compete with the format change. Why both formats use a straight lay rather than a 50/50 brick lay: on a 12 by 24 wall a 50 percent offset risks visible lippage at the joint corner, and on a 24 by 24 floor the same risk is even greater. The straight lay eliminates the lippage exposure and lets the format read on its own merits.

The 6-Inch Mosaic Insert Across the Wet-Zone Walls

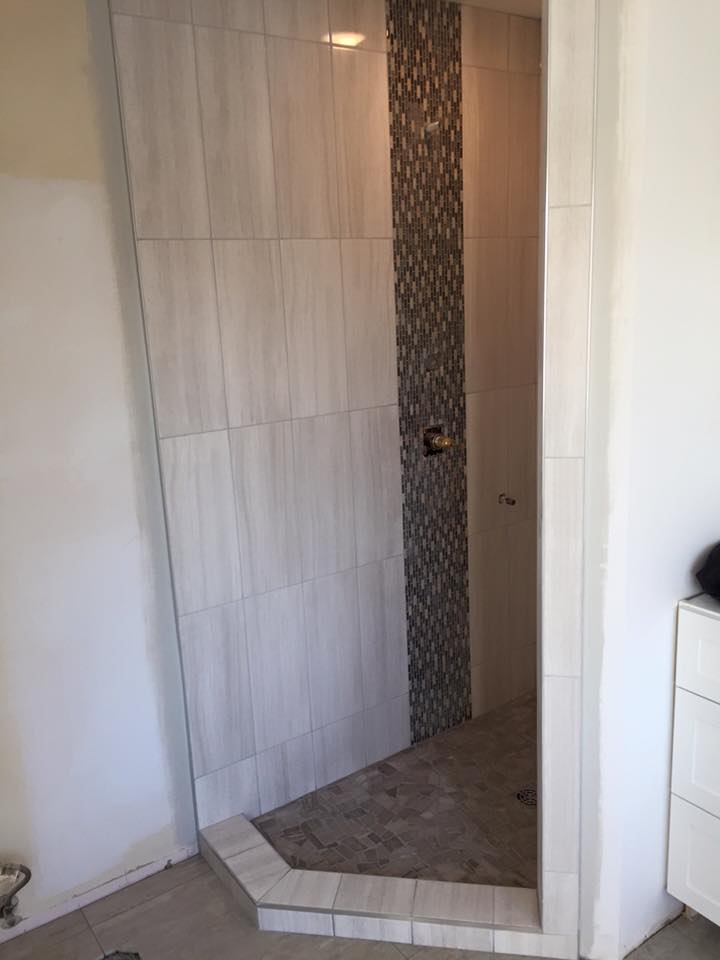

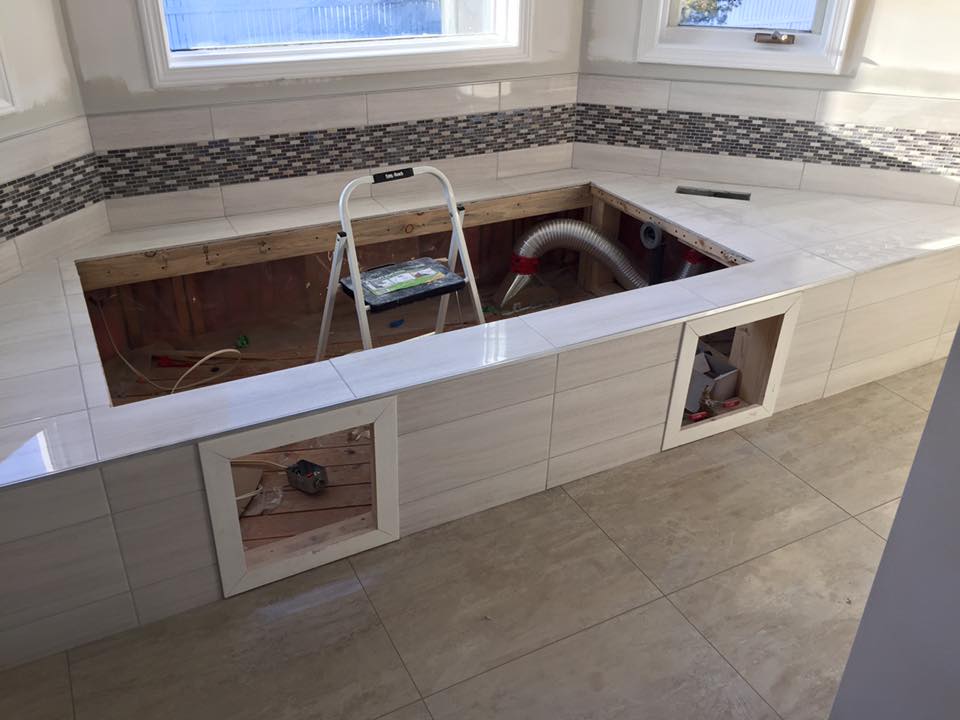

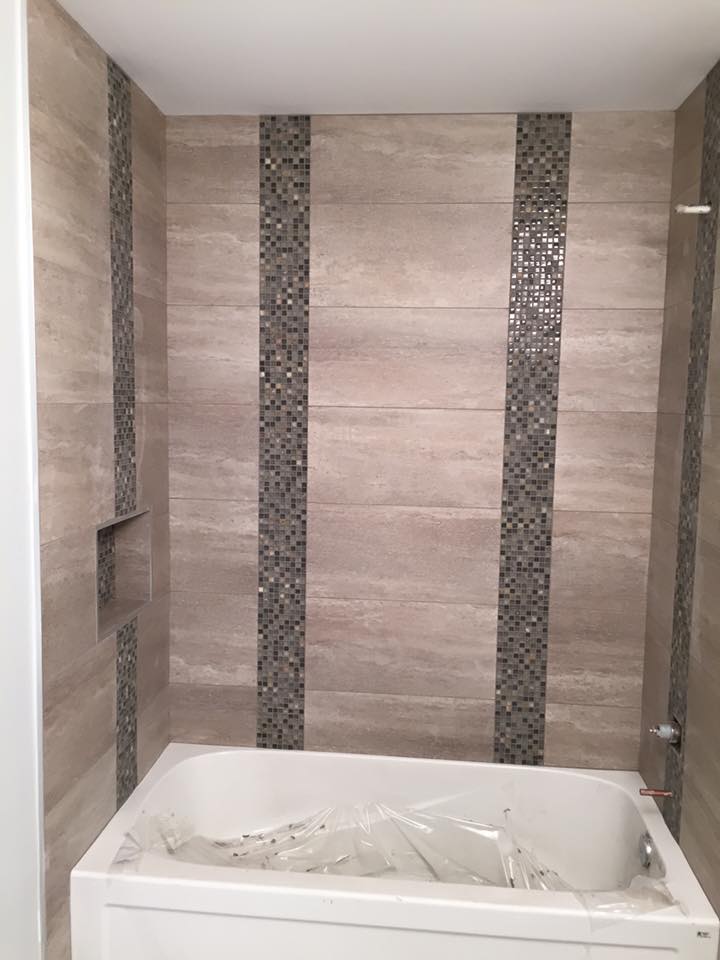

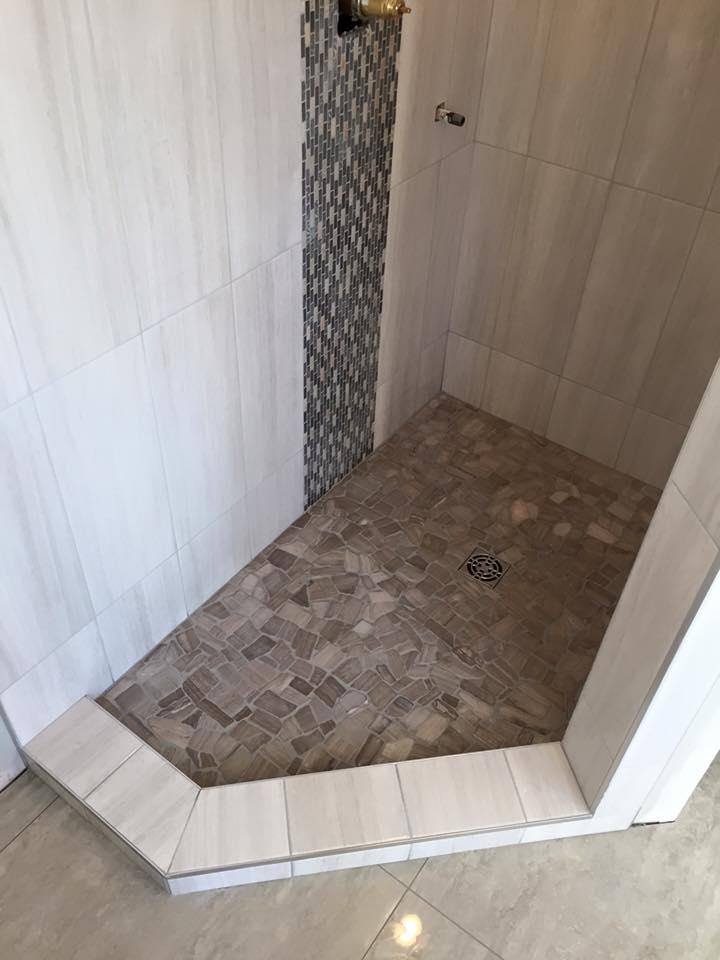

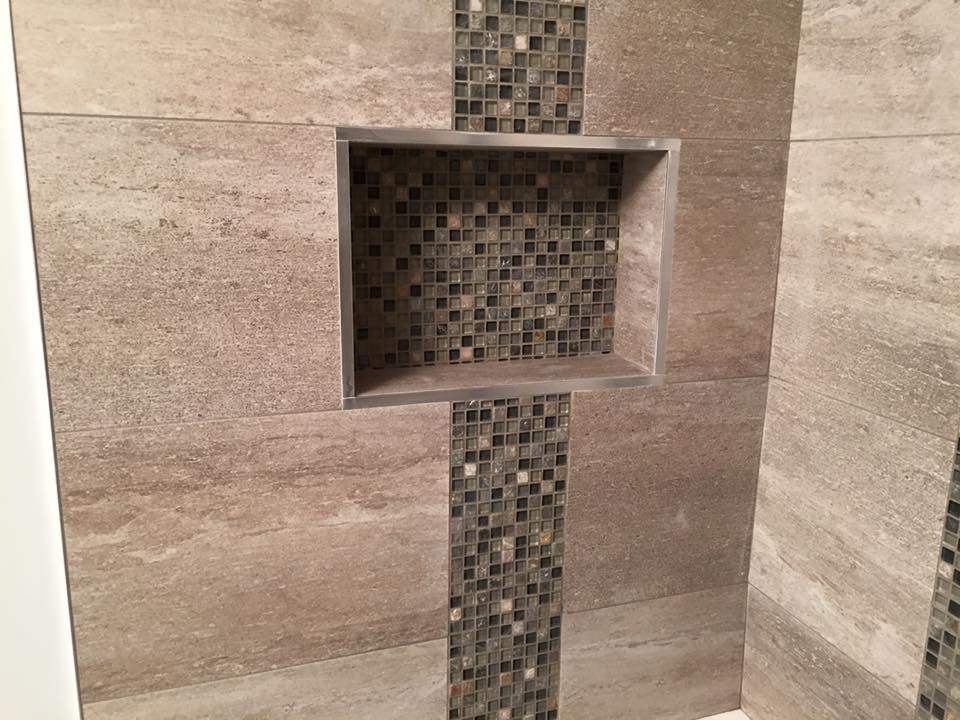

The design hook across the ensuite shower, ensuite jacuzzi tub, and main bathroom tub surround is a 6 inch mosaic insert band running horizontally through the wet-zone walls at a consistent elevation. What a 6 inch mosaic insert is: a 6 inch tall band of mosaic tile interrupting the 12 by 24 field at a specific course height, running the full length of the wet-zone wall at one consistent elevation. The 6 inch dimension is wider than the typical 3 to 4 inch insert and registers as a substantial accent band rather than a thin stripe. Why a 6 inch insert on a 12 by 24 field: the 12 by 24 has a tall course height (the 12 inch face dimension if installed horizontally, or the 24 inch face dimension if installed vertically), and the insert band has to be substantial enough to read against the larger tile format. A 3 inch insert on a 12 by 24 field would look like a forgotten line. A 6 inch insert holds proportion against the 12 by 24 and registers as a deliberate design move. Why one consistent insert across three wet-zone surfaces: running the same insert at the same elevation across the ensuite shower, ensuite jacuzzi, and main bathroom tub creates a horizontal line that connects the wet-zone work across both bathrooms. The result is a renovation that reads as one coordinated scope rather than two separate bathroom projects. The bond coat for the mosaic: the mosaic insert was set with the same VersaBond as the surrounding 12 by 24 field, because the bond coat selection is governed by the substrate environment (wet-zone wall) rather than by the tile format. The grout: the joints across the 12 by 24 field and the 6 inch mosaic insert were grouted continuously with Prism, which keeps the joint colour reading consistent across the format transition.

Why VersaBond LFT on the 24×24 Floor

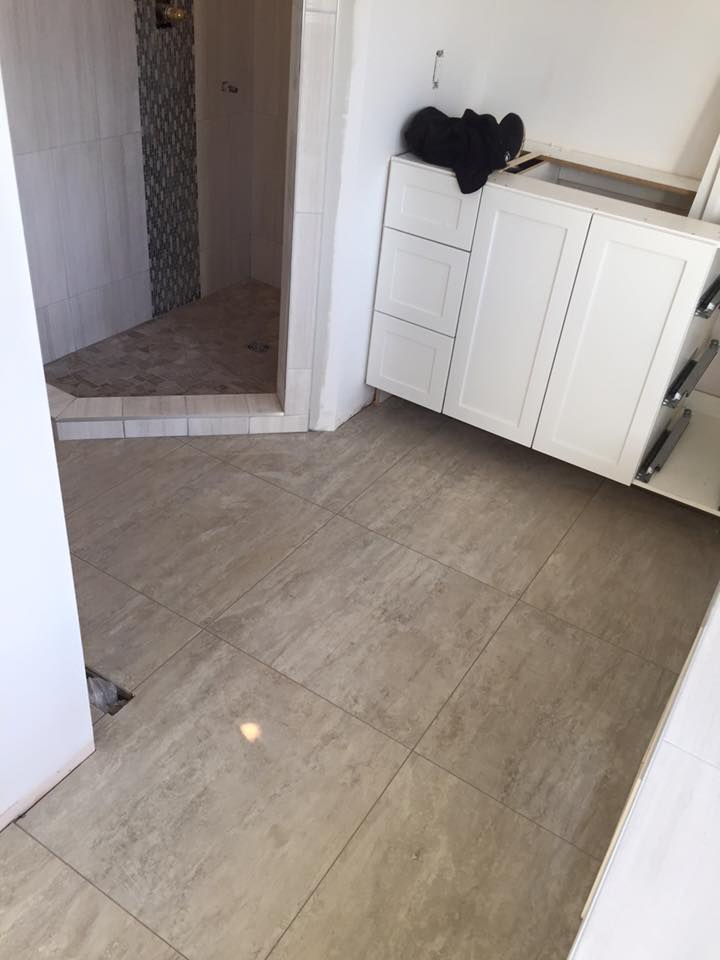

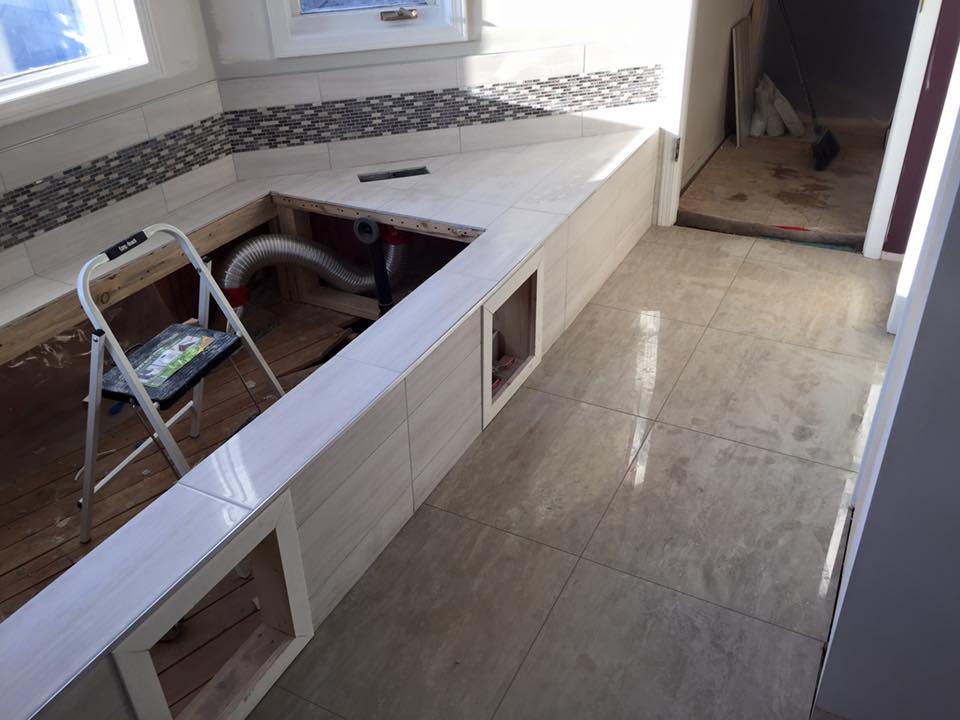

The bond coat for the 24 by 24 large-format floor is VersaBond LFT (Large Format Tile), the LFT-rated variant of the standard VersaBond chemistry. What VersaBond LFT delivers: VersaBond LFT is a polymer-modified portland-cement thinset specifically engineered for large-format tile applications, with a medium-bed chemistry that maintains its bond coat thickness under the larger tile footprint without slumping. The chemistry is otherwise compatible with the standard VersaBond that was used on the 12 by 24 walls, which means the boundary between wall and floor at the perimeter of the shower or tub surround is a clean chemistry transition rather than a mismatched one. Why the LFT variant on the floor: a 24 by 24 tile has a plan area of four square feet, which means the bond coat under each tile has to support that full plan area without producing voids. A standard thinset can slump under the 24 by 24 footprint and produce centre voids that show up over time as tile rocking, popped tiles, or cracked grout joints. The LFT chemistry maintains bond coat thickness across the full tile footprint and produces a fully load-rated floor assembly. Why this matters in Brentwood: Brentwood houses typically have subfloors that are now 50 plus years old, with some joist deflection and seasonal cycling that a contemporary new build would not have. The LFT bond coat plus a properly screwed-down subfloor produces an assembly that handles the older substrate without transmitting the substrate movement into the tile face above. The grout: the 24 by 24 floor was grouted with the same Prism as the wall tile, with the colour stability that holds the joint reading across the years of kitchen and bathroom traffic.

Planning a two-bathroom renovation with a 12 by 24 wet-zone spec, a 6 inch mosaic insert, and a 24 by 24 large-format floor in Brentwood or anywhere in central Edmonton? Call The Tile Experts at 587-333-9800 or request a quote.

Brentwood Renovation FAQ

How much does a two-bathroom renovation with 12×24 walls and 24×24 large-format floors cost in Brentwood?
For a project of this scope (ensuite jacuzzi tub plus stand-up shower walls in 12 by 24, main bathroom tub surround in 12 by 24, 6 inch mosaic insert band across all wet-zone walls, both bathroom floors in 24 by 24 large-format tile, VersaBond on the walls and VersaBond LFT on the floors, full Prism grout finish), plan on 22,000 to 38,000 dollars in tile-scope labour and material, with total wet-zone wall and floor square footage as the primary cost drivers.

Why use a 12×24 on the walls and a 24×24 on the floors instead of one format across both?
A 24 by 24 on a typical residential shower wall reads as oversized because the wall surface area is small enough that a 24 by 24 produces only a few full tiles per wall. A 12 by 24 on the wall reads at the right residential proportion. On the floor, the 24 by 24 has fewer joints per square foot and gives the floor a calm, expansive presence.

Why does the 24×24 floor require VersaBond LFT instead of standard VersaBond?
A 24 by 24 has a plan area of four square feet, and the bond coat under each tile has to support that full plan area without slumping. VersaBond LFT is the medium-bed chemistry that maintains bond coat thickness across the larger footprint and produces a fully load-rated assembly. Standard thinset can slump and produce voids. See our floor tile installation service.

Tile Installation in Brentwood and Central Edmonton

Brentwood is an established central Edmonton neighbourhood with neighbours in Westmount, Inglewood, Sherbrooke, Athlone, and the broader north-central residential market. Two-bathroom renovations with coordinated wall and floor specifications, large-format floor work, and mosaic insert detailing are some of the most common projects in this mature housing market that is now in its second and third renovation cycles. The Tile Experts install bathrooms, kitchens, floors, custom showers, fireplaces, and feature walls across Brentwood, Westmount, Inglewood, Sherbrooke, Athlone, and the rest of central Edmonton, plus the full capital region. Contact us or call 587-333-9800 for a free in-home walkthrough.
