Tile Installation Edmonton: Large Format in Jasper Place

Large-Format 24×24 Floor Across an Entire Renovation in Jasper Place

Jasper Place is a mature west Edmonton district, anchored by post-war housing through the West Jasper Place core and a long arc of mid-century commercial along Stony Plain Road and 156 Street. Renovations in this stock are typically driven by older substrates that need a complete tear-out and a fresh tile program rather than a partial refresh. On this Jasper Place project The Tile Experts handled exactly that scope: a full-area floor renovation in 24 by 24 large-format porcelain laid in a clean straight-lay pattern, set with a large-and-heavy-tile mortar, levelled across every joint with self-leveling clips, and finished with a randomized placement of darker brown tiles to give the field a natural variation.

What Large-Format Means and Why It Demands a Different Approach

A 24 by 24 porcelain is classified as a large-format tile, and the install discipline is fundamentally different from a standard 12 by 12 or 13 by 13 ceramic. Surface area per tile: a 24 by 24 covers four square feet of floor in a single piece, so every tile has to sit in a true plane against the substrate or lippage shows up immediately at the joint where the tile face on one side does not match the tile face on the other. Bond coat demand: at this format the mortar has to fill any minor variation in subfloor flatness, which is exactly the function a medium-bed thinset is engineered for. Aesthetic payoff: the 24 by 24 puts fewer joints into the floor, which makes the room read larger and more architectural than a typical small-format install. On this Jasper Place renovation the entire floor area runs in a single 24 by 24 field.

The Bond Coat: VersaBond LFT Mortar

Every tile on this floor was set with VersaBond LFT Mortar. Purpose: VersaBond LFT is a polymer-modified, large-and-heavy-tile rated thinset specifically engineered for oversized formats like a 24 by 24 porcelain. Property: the medium-bed capability lets the bond coat fill minor variation in subfloor flatness so every tile sits in a true plane against the substrate, which is exactly the discipline a 24 by 24 demands. A standard non-medium-bed thinset is not engineered to hold this format flat across its full footprint, which is the most common failure mode on a large-format install. Relationship: using one large-format-rated mortar across the entire renovation keeps the bond chemistry consistent from one room to the next, and the joints stay flush at every doorway.

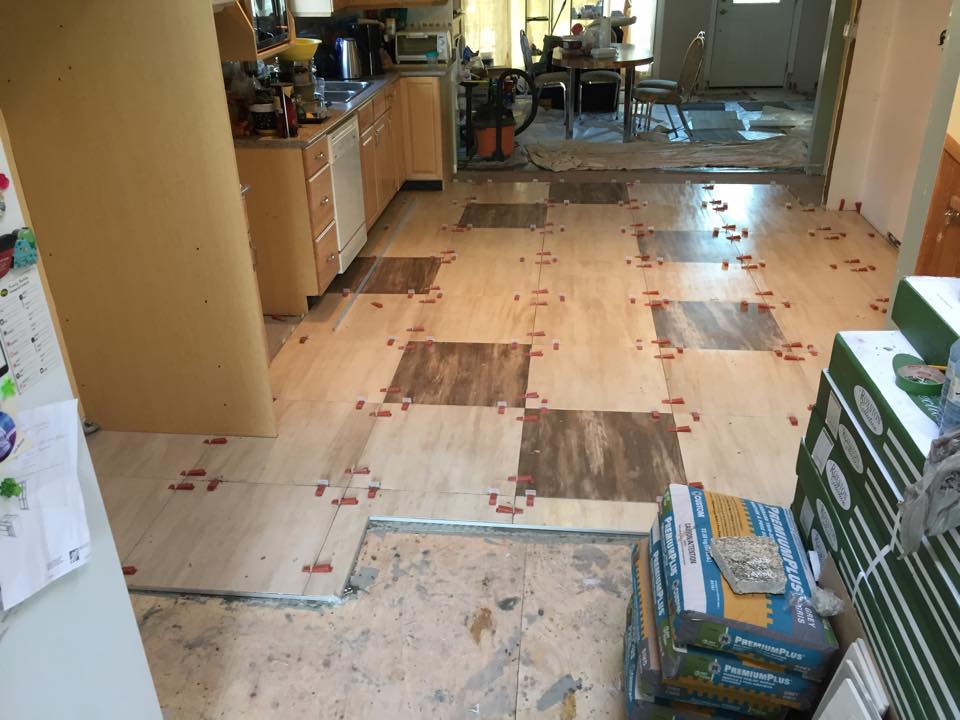

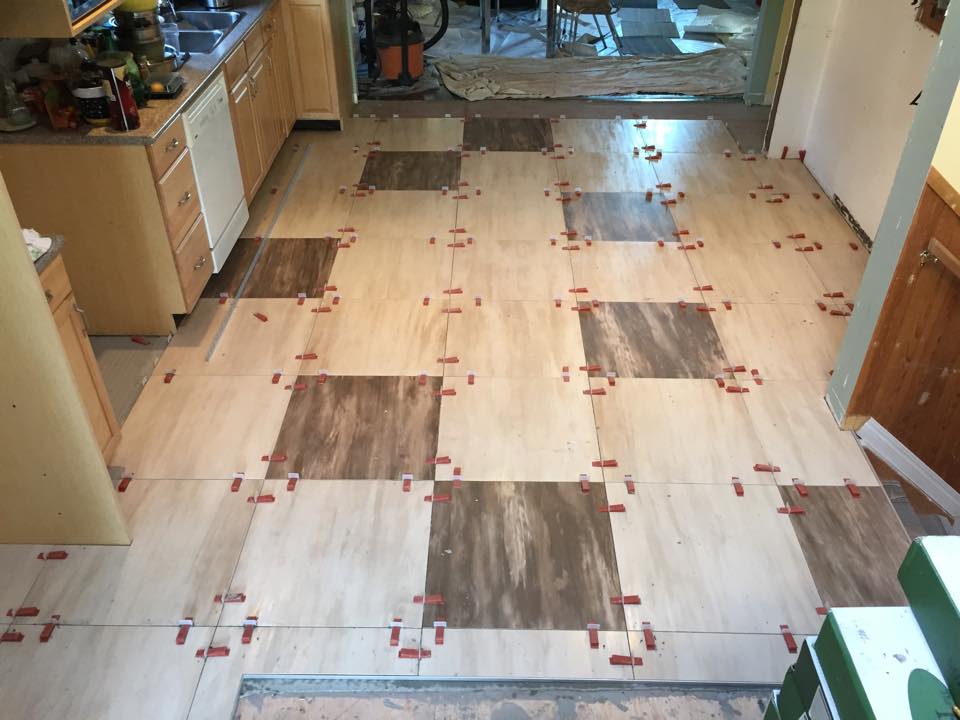

Self-Leveling Clips: The Discipline That Eliminates Lippage

Lippage is the technical term for the tiny height difference at a joint where one tile face sits proud of the next. On a small-format ceramic the eye does not really catch a 0.5 millimetre lippage, but on a 24 by 24 porcelain that same 0.5 millimetres is amplified by the larger tile face and the eye catches it immediately. To eliminate lippage on this Jasper Place install, the setter used self-leveling clip systems throughout the entire area. Mechanism: a clip is inserted at each joint, a wedge is driven through the clip to mechanically force adjacent tiles into the same plane while the bond coat cures, and the clip body is broken off flush once the mortar has set. Result: every joint sits at exactly the same elevation, the floor reads as one continuous plane, and there is no lippage anywhere across the renovation. This is what separates a professional large-format install from a generic one.

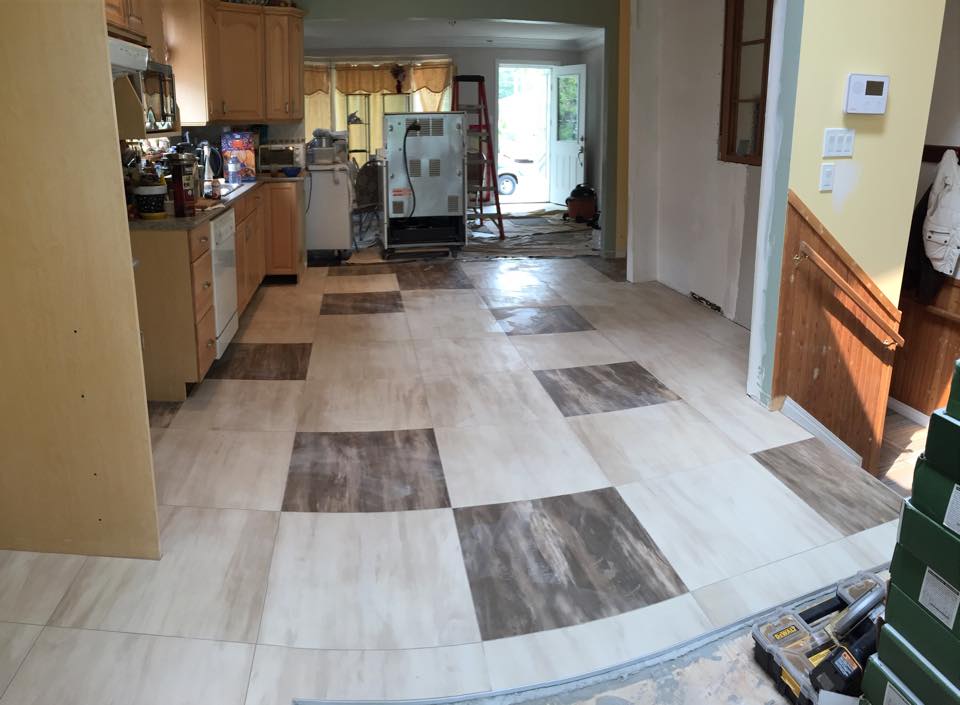

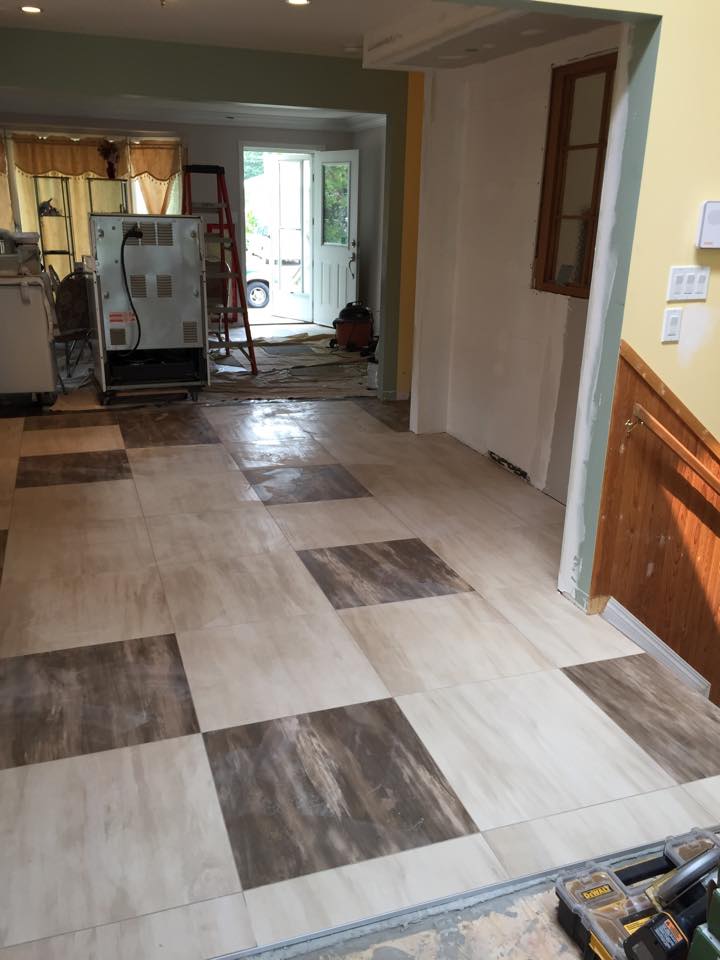

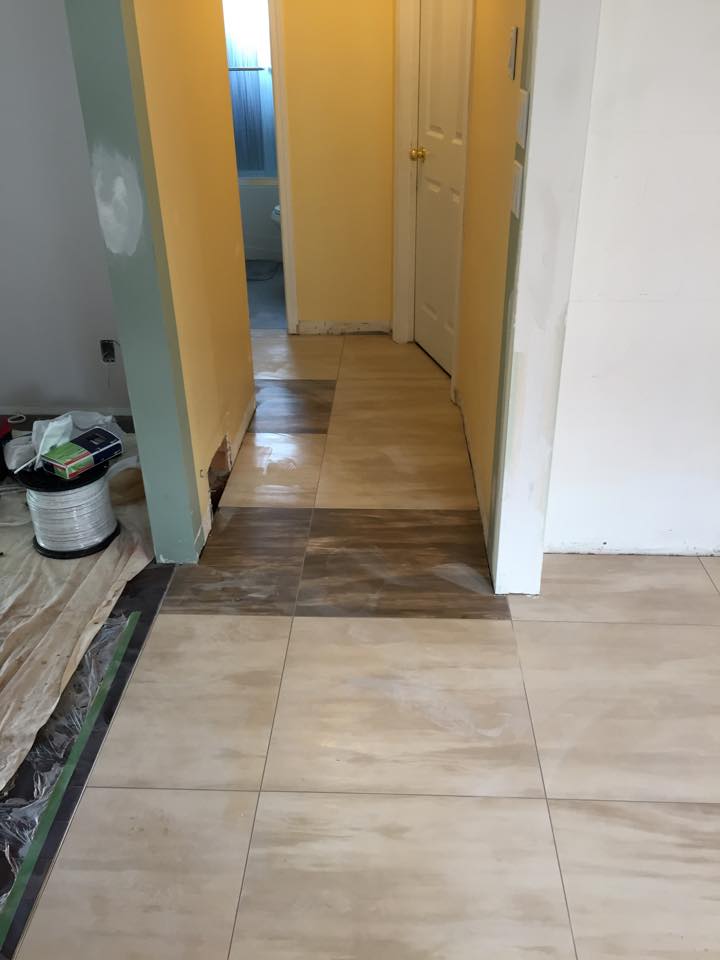

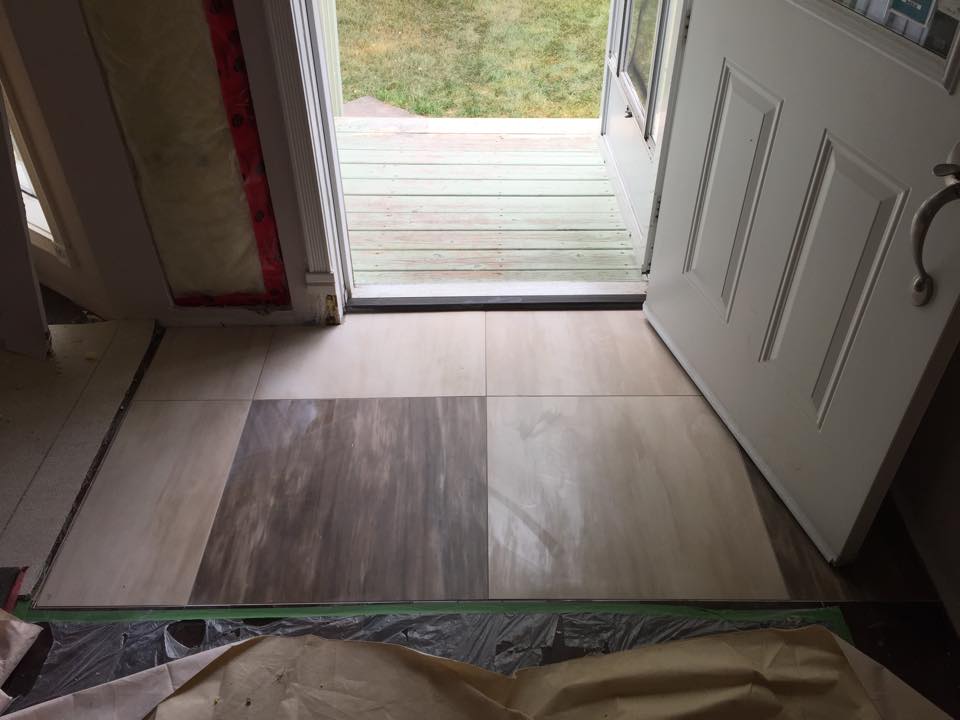

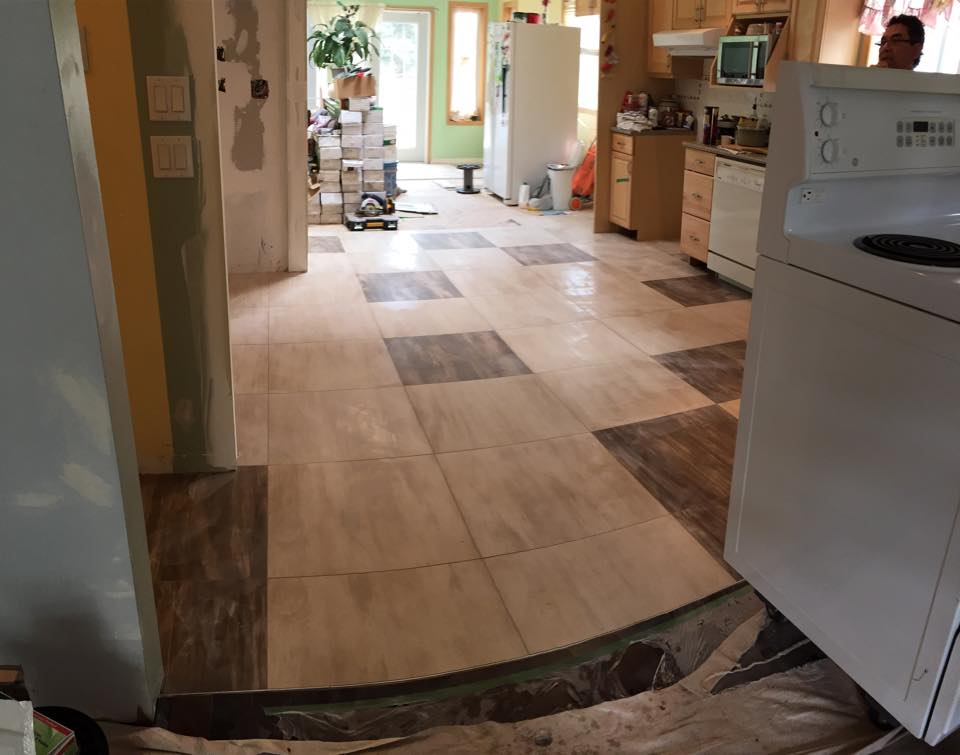

Randomized Placement of the Darker Brown Tiles

This project’s tile selection included a field tile with a lighter base tone and a smaller proportion of darker brown tiles distributed through the run. The factory packing is essentially random, but random does not always read as natural when it lands on a floor: clusters of dark tiles in one corner and stretches of pure light field in another corner look like a packing accident rather than a design choice. The tile setter was given responsibility for randomizing the darker brown tile placement across the floor by hand. Purpose: visual balance across the entire floor area, so the eye reads the darker tiles as natural variation rather than as a patch. Method: the setter spread the floor’s worth of tile across the staging area, identified every darker brown piece, and dealt them into the layout so no two darks landed adjacent and no zone went without a dark for more than four or five tiles. Result: a floor that reads as deliberately specified rather than as randomly packed.

Planning a large-format floor renovation in Jasper Place or anywhere in west Edmonton? Call The Tile Experts at 587-333-9800 or request a quote.

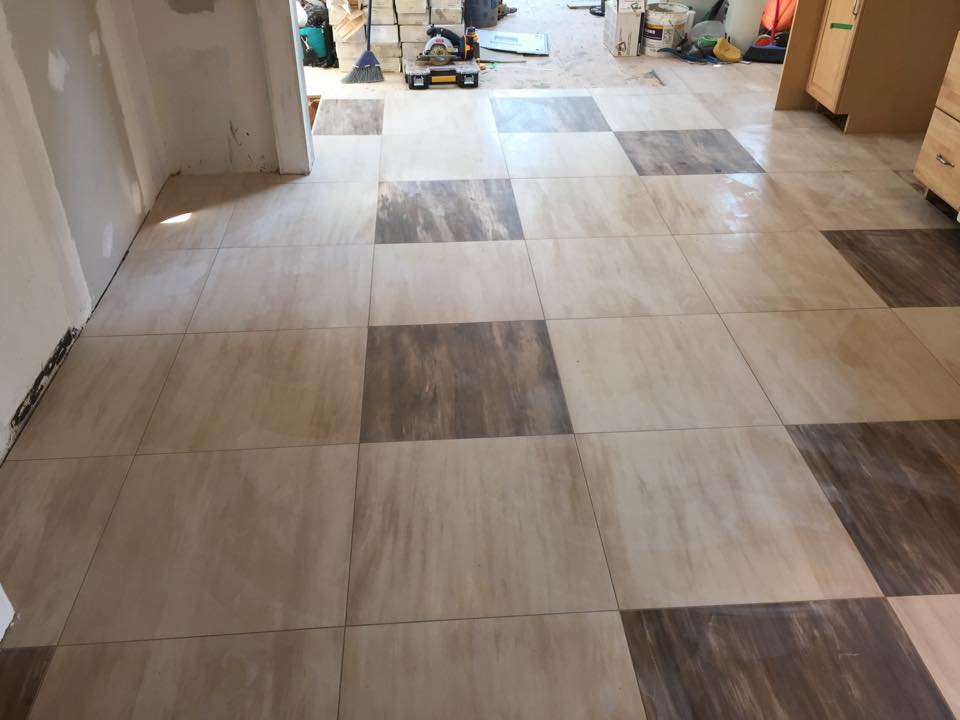

Grouting With Prism Across the Entire Floor

The completed renovation was grouted with Prism Grout once the setting work had cured and the self-leveling clips were broken off. Purpose: running one grout colour across the entire 24 by 24 field ties the renovation together as one continuous design composition. Property: Prism is a high-performance, stain-resistant calcium-aluminate cement grout that cures harder than standard portland-cement grout and resists efflorescence on any floor joint exposed to traffic and moisture. Relationship: we matched the grout tone against the dominant lighter tile face so the joint disappears into the field, and the randomized darker brown tiles read as the natural variation across the floor rather than as competing accents against a contrasting grout line.

Jasper Place Large-Format Floor FAQ

How much does a 24×24 large-format floor renovation cost in Jasper Place?
For a project of this scope (full-area 24 by 24 porcelain, VersaBond LFT mortar, self-leveling clip discipline throughout, randomized tile placement, and full Prism grout), plan on 12 to 22 dollars per square foot in tile-scope labour and material, depending on tile selection and total square footage.

Why use self-leveling clips on a 24×24 install?
At this tile format any lippage is amplified by the larger tile face and the eye catches it immediately. Clips mechanically force adjacent tiles into the same plane while the mortar cures, so the floor reads as one continuous surface with zero lippage anywhere across the install. It is the discipline that separates a professional large-format job from a generic one.

How long does a large-format floor renovation of this size take in Jasper Place?
For a full-area 24 by 24 install with self-leveling clip discipline, plan on five to nine working days of tile work depending on total square footage, plus a separate window for floor demolition and substrate prep before the tile phase starts.

Tile Installation in Jasper Place and West Edmonton

Jasper Place sits in mature west Edmonton along Stony Plain Road and 156 Street, with neighbours in West Jasper Place, High Park, Britannia Youngstown, and Glenwood. Large-format floor renovations, full-house flooring rebuilds, and main-floor tile programs are some of the most common projects in this post-war and mid-century housing stock. The Tile Experts install floors, bathrooms, kitchens, custom showers, fireplaces, and feature walls across Jasper Place, West Jasper Place, Britannia Youngstown, and the rest of west Edmonton, plus the full capital region. Contact us or call 587-333-9800 for a free in-home walkthrough.
