Fireplace Surround Tile Installation in Windermere, Edmonton

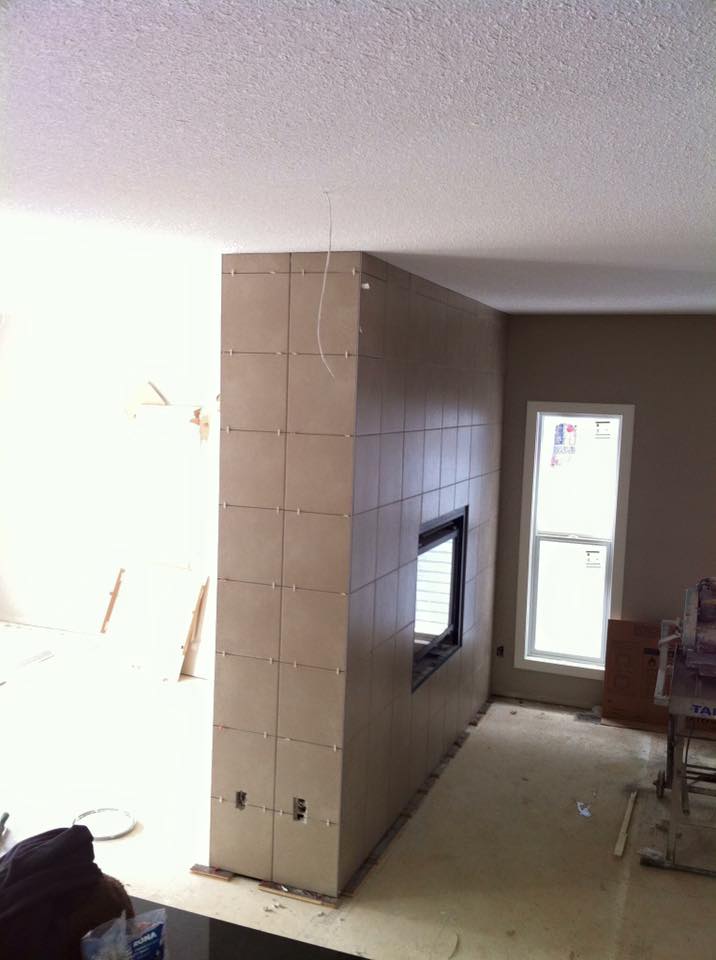

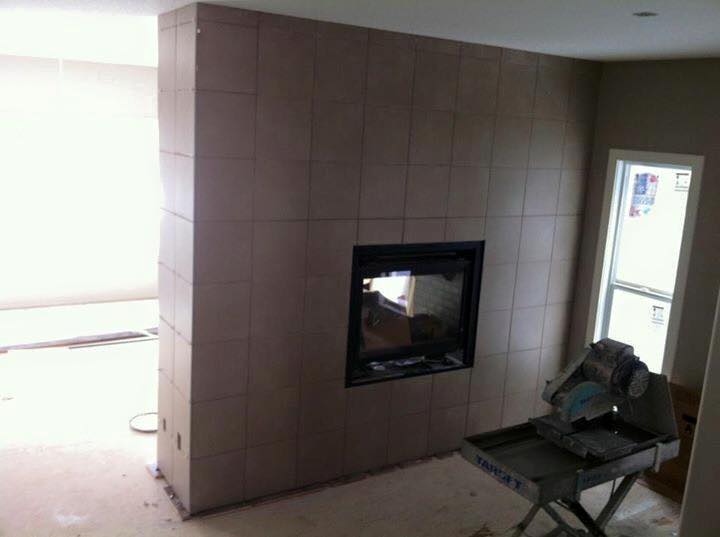

This Windermere project was a fireplace makeover at the heart of a large family room. The Tile Experts wrapped the existing gas fireplace box in a 12 by 12 porcelain tile set in a straight lay pattern, running the surround from the hearth line up to the mantel and across the full face wall. The new field replaced an older, dated stone-veneer surround that no longer matched the rest of the room’s finish. The owners wanted a calm, contemporary backdrop for the television and a surface that could take the radiant heat from a high-output gas insert without ever needing repair.
Why a Fireplace Surround Needs Tile, Not Drywall or Veneer
A fireplace face does three jobs that drywall and adhered stone veneer struggle with over time. It absorbs and re-radiates heat from the firebox. It has to take repeated thermal cycling without cracking the finish. And it is one of the most visible vertical surfaces in any living room, so any imperfection is on display every day. A 12 by 12 porcelain field solves all three. Porcelain is fired at over 1,200 degrees Celsius, so the radiant heat from a residential gas insert does nothing to it. The straight lay pattern reads as architectural rather than rustic, which matches the modern Windermere build style. And porcelain wipes clean with a damp cloth, where stone veneer collects dust in every cleft.
VersaBond Mortar: The Setting Material for a Heat Cycled Wall
The 12 by 12 field was set with VersaBond Mortar. Purpose: VersaBond is a polymer modified, professional grade thinset rated for porcelain on cement board, which is the correct substrate for any tile assembly adjacent to a firebox. Property: the polymer modification gives the bond coat flex tolerance so the tile assembly handles the thermal expansion and contraction of a gas insert that runs hot in the evening and cools through the night. A standard non-modified thinset will eventually crack at the hot zone above the firebox; VersaBond will not. Relationship: the thinset is the layer that ties the ceramic body to the cement board behind it, and the cement board is itself non-combustible. The full stack is rated for the heat envelope a fireplace produces.
Layout: Why a Straight Lay 12 by 12 Reads Right on a Fireplace
Pattern selection on a fireplace surround is a design decision more than a structural one, but the wrong choice can make the whole room feel off. We chose a straight lay (grid) pattern for three reasons. Symmetry: the gas insert is centered on the wall, and a straight lay tile pattern lines up cleanly with the firebox opening so cut tiles around the edges are even left and right. Scale: the 12 by 12 module is big enough to read modern but small enough to leave the wall surface visually broken into a comfortable grid; an 18 by 18 or 24 by 24 tile would have created only a few visible joints, which can feel sparse on a fireplace. Joint discipline: a straight grid is the easiest pattern to keep dead-square. Any drift in the layout is immediately obvious next to the rectangular firebox, so we shot a laser line at the start of the install and snapped to it for the entire field. See our fireplace and feature wall service page for more.
Planning a fireplace or feature wall in Windermere or anywhere in west Edmonton? Call The Tile Experts at 587-333-9800 or request a quote.
Grouting With Prism: A Color Consistent Grout That Holds Its Tone
The completed surround was grouted with Prism Grout, a high-performance, stain-resistant cement grout. Purpose: Prism is a calcium aluminate cement grout that bonds harder than a standard portland-cement grout and resists efflorescence (the chalky white bloom that ruins fresh grout on a wall a few months in). Property: the color-consistent formula means the grout cures to the exact shade on the bucket, regardless of how much water the installer adds within the spec range, and it does not shift tone over the next year of heat cycling. Relationship: the grout line is the visual frame around each tile; pick the wrong color or the wrong product and the field tile reads dirty within two seasons. A correctly chosen Prism color disappears into the tile and lets the porcelain do the visual work.
Windermere Fireplace Tile Renovation FAQ
How long does a fireplace surround tile install take?
For a standard floor-to-mantel surround of about 25 to 50 square feet, the install takes two to three working days from prep to final grout cure. Larger feature walls that run floor to ceiling stretch the timeline to four or five days.
Can you tile over an existing brick or stone fireplace?
Sometimes, depending on the condition of the existing surface. More often we strip the old veneer back to the substrate, install fresh cement board, and tile over a clean, flat, fire-rated layer. This gives the new tile a long service life rather than chasing the bumps of the previous install.
What clearance does the firebox need from combustible materials?
The clearance is set by the fireplace manufacturer and the building code, not by the tile. We work to the printed clearances on the insert, which usually allow non-combustible tile and cement board directly to the edge of the firebox opening. Combustible mantels stay at the required vertical distance above the opening.
Tile Installation in Windermere and West Edmonton
Windermere is one of southwest Edmonton’s premier new-build communities, anchored by the Currents shopping district and a stock of large, modern single family homes built mostly since the early 2010s. Many of these homes were finished with builder-grade fireplace surrounds that homeowners now want to upgrade to porcelain or stone tile. The Tile Experts install fireplaces, feature walls, kitchens, and bathrooms across Windermere, Ambleside, Keswick, and the rest of west and southwest Edmonton, plus Spruce Grove, Stony Plain, and the surrounding capital region. Contact us or call 587-333-9800 for a free in-home walkthrough.
