Stacked 12×24 Walls, 70/30 Floor, and Twin Mosaic Inserts in a Rio Terrace Ensuite

Rio Terrace is one of west Edmonton’s quieter residential pockets, sitting between 156 Street and the river valley south of Stony Plain Road, with a housing stock built largely through the 1960s and 1970s. Ensuite bathrooms in this stock arrive at renovation age with original tile that is a generation past its design life and a footprint that has not changed in 50 years. The homeowners’ design opportunity on a Rio Terrace ensuite is to use one tile in two different layouts to give the room both a vertical architecture (on the walls) and a horizontal rhythm (on the floor) while keeping the visual language unified. On this Rio Terrace project The Tile Experts ran exactly that play: a 12 by 24 porcelain on both the ensuite walls and the shower walls in a stacked pattern, the same 12 by 24 on the floor in a 70/30 stagger, and a mosaic insert featured on both the shower wall and the floor.

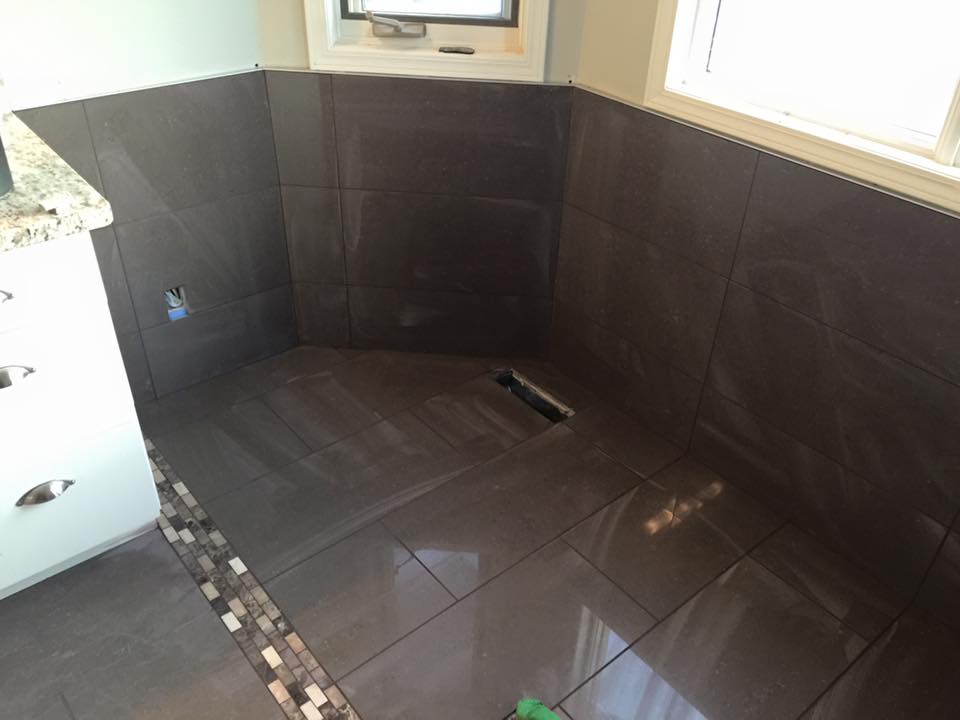

The Stacked Layout on Ensuite and Shower Walls

The walls of the ensuite, and the walls of the shower, were tiled with a 12 by 24 porcelain in a stacked layout (every course aligned with the course below rather than offset), set with VersaBond Mortar. Purpose: a stacked layout on a vertical surface reads as architectural in a way that no offset pattern does. Each joint becomes a continuous vertical line and a continuous horizontal line, producing a clean grid that frames the room rather than competing with it. On an ensuite where the homeowner wants the walls to read as contemporary architecture rather than as a traditional tile pattern, the stacked layout is the move. Property: a stacked 12 by 24 demands the tightest tile bow tolerances of any common layout, because every joint becomes a continuous gridline and any sizing variation between adjacent tiles is immediately visible. The installer pre-sorted the tile lot by edge profile so adjacent tiles came up as matched pairs. Relationship: VersaBond is a polymer-modified professional-grade thinset rated for ceramic and porcelain in wet-zone applications, with the bond chemistry the wet-zone shower walls require.

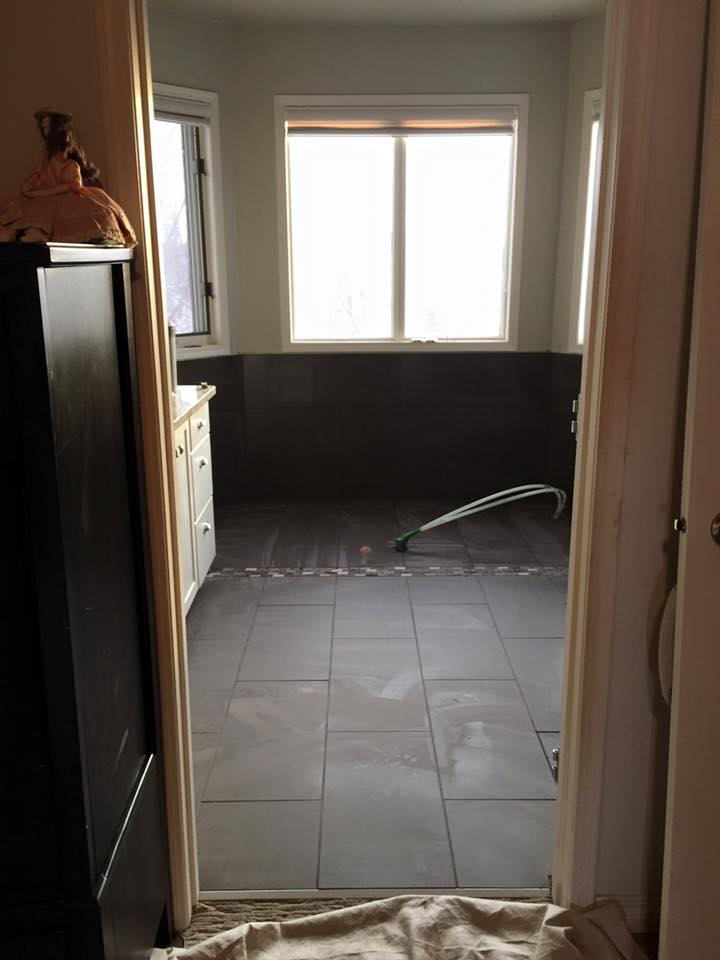

The 70/30 Stagger on the Floor

The same 12 by 24 porcelain that ran stacked on the walls was installed on the ensuite floor in a 70/30 staggered pattern (every course offset from the previous by 30 percent of the tile face), set with 253 Gold Laticrete Mortar. Purpose: using the same tile on the walls and the floor unifies the visual language of the room into one tile family. Changing the layout (stacked on walls, 70/30 on floor) gives each plane its own architectural identity within that unified family: the walls read as vertical architecture, the floor reads as a horizontal rhythm. Property: the 70/30 stagger is the manufacturer-recommended layout for any rectified tile longer than 15 inches because it pairs adjacent tiles closer in bow profile and prevents the centre-of-tile lippage that a 50/50 brick lay would introduce on a 24 inch face. Relationship: 253 Gold Laticrete is a polymer-modified professional-grade thinset rated for porcelain over wood-framed subfloors with the flexibility to absorb seasonal movement, which is the bond chemistry a 1960s or 1970s Rio Terrace ensuite floor requires.

One Tile, Two Bond Coats: Why the Specification Splits

The same 12 by 24 tile carries two different bond coats on this renovation: VersaBond on the walls and 253 Gold Laticrete on the floor. The question this raises: why not use one chemistry across the whole job? The answer: the two surfaces are solving different engineering problems. The walls (VersaBond): the walls are a vertical wet-zone surface where the bond coat needs grab strength to hold the 12 by 24 face on the wall while the bond develops, plus wet-zone moisture resistance. VersaBond is engineered for exactly that scope. The floor (253 Gold Laticrete): the floor is a horizontal surface bonded to a wood-framed subfloor that lives through Edmonton’s seasonal cycling, where the bond coat needs flexibility to absorb subfloor movement without breaking the bond. 253 Gold is engineered for that scope. Why specifying both is the right call: using one chemistry across both surfaces would compromise one or the other; the right discipline is to match each layer to the problem it actually solves. This is how a manufacturer-correct specification reads in practice.

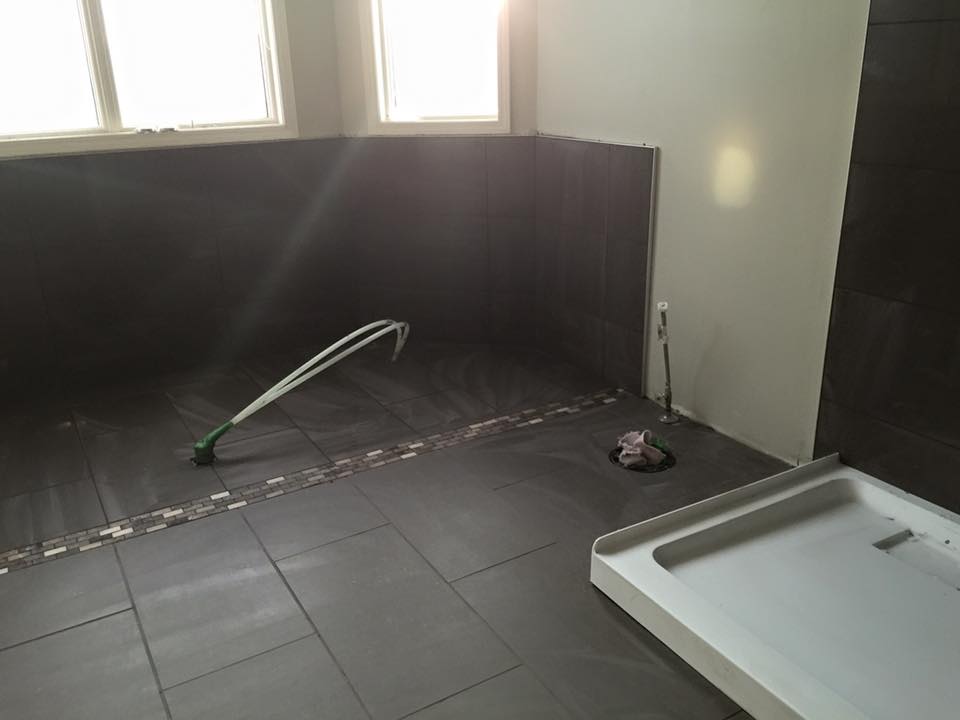

The Twin Mosaic Inserts: Shower Wall and Floor

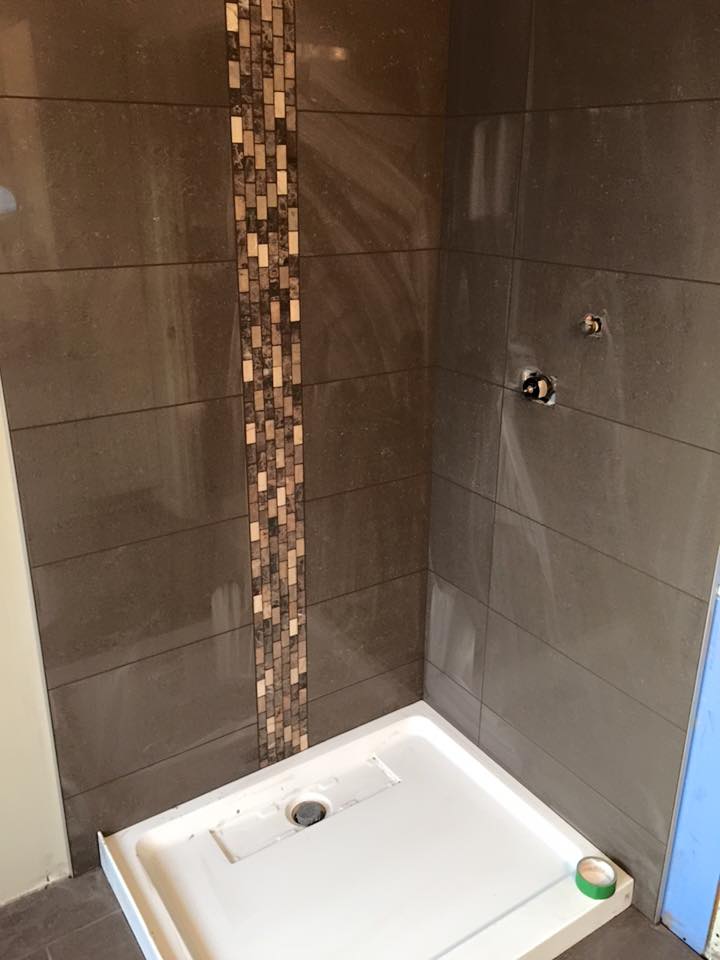

The defining design features of this Rio Terrace ensuite are the mosaic inserts that land in both the shower wall and the ensuite floor. The shower-wall insert: a band of decorative mosaic is set into the back wall of the shower at a coordinated height, breaking the otherwise uniform 12 by 24 stacked field with a single horizontal line of detail. The insert is the focal accent of the shower. The floor insert: a corresponding mosaic insert is set into the ensuite floor, giving the floor its own focal moment that visually echoes the shower wall above it. Why twin inserts work: on an ensuite where the same tile carries every plane, the two mosaic inserts give the eye two anchor points (one on the vertical, one on the horizontal) and tie the room together as a coordinated composition rather than as a uniform field. Layout discipline: both inserts were set so the surrounding 12 by 24 courses land full above and below, with no cut tile immediately adjacent to the mosaic. This is the layout planning that makes the inserts read as deliberate features rather than as patched seams.

Planning an ensuite with coordinated stacked-and-staggered layouts and mosaic accent inserts in Rio Terrace or anywhere in west Edmonton? Call The Tile Experts at 587-333-9800 or request a quote.

Why Pair a Stacked Wall With a Staggered Floor

The combination is intentional. Stacked walls bring grid-architecture energy: the continuous vertical and horizontal joint lines frame the room and emphasize its geometry. This is the right move on walls because vertical surfaces are read as architectural in nature. Staggered floors bring horizontal rhythm: the offset joint pattern keeps the floor visually quieter than a stacked floor would be, which lets the walls remain the architectural focus while the floor functions as the calm horizontal ground plane. What this avoids: running stacked layouts on both walls and floor would create competing grid patterns that fight for the eye; running staggered layouts on both would produce a softer, less architectural room. The split (stacked on walls, staggered on floor) is the layout discipline that lets each plane do its own job while keeping the tile language unified.

Rio Terrace Ensuite FAQ

How much does a coordinated 12×24 ensuite renovation with twin mosaic inserts cost in Rio Terrace?
For a project of this scope (12 by 24 porcelain in a stacked layout across both ensuite walls and shower walls, 12 by 24 in a 70/30 stagger on the ensuite floor, plus mosaic accent inserts on both the shower wall and the floor), plan on 9,500 to 16,500 dollars in tile-scope labour and material, depending on tile selection and the size of the ensuite footprint.

Can the same tile be used on walls and floor?
Yes, and on an ensuite where the design intent is a unified tile language across every plane, it is often the right call. The tile rating must support both wall and floor use (most modern porcelains do), and the layouts can vary between planes to give each surface its own architectural character. See our bathroom tile installation service.

Why use two different bond coats on the same tile?
Walls and floors are different engineering problems. Wall bond coats prioritize grab strength and wet-zone moisture resistance (VersaBond is engineered for that), and floor bond coats prioritize flexibility to absorb substrate movement on wood-framed subfloors (253 Gold Laticrete is engineered for that). Matching the chemistry to the problem is the right specification discipline.
