A 1-Inch Plywood Underlay and a 12×24 Stacked-Pattern Entrance in South Edmonton
South Edmonton runs south of Whyte Avenue and covers a broad band of established residential neighbourhoods with a housing stock that ranges from 1950s post-war bungalows through 1990s split-levels into the early 2000s infill builds. Entrance-floor tile renovations in this established stock often start with substrate prep work that a newer home would not require, because the existing subfloor at an entry point has accumulated cycling damage from decades of seasonal moisture transfer, dropped boots, and the constant traffic load that an entry room sees. On this south Edmonton renovation the prep stage was the headline scope: a full 1 inch plywood underlay laid down over the existing subfloor, then a 12 by 24 porcelain in a stacked pattern set with 253 Gold Laticrete Mortar and finished with Prism Grout.
Why a 1-Inch Plywood Underlay Is the Prep Move on an Entrance Floor Renovation

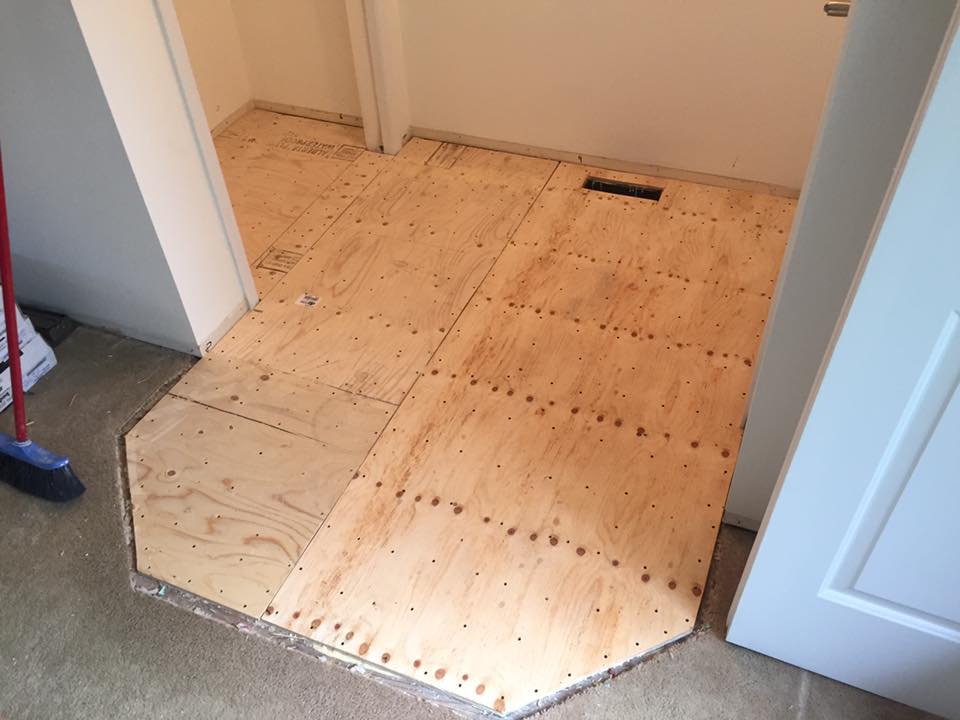

The first stage of this renovation was laying down a fresh sheet of 1 inch plywood underlay across the entire entrance-floor zone, bonded and fastened to the existing subfloor below. Why this matters on a renovation: the existing subfloor in an entrance zone has typically been compromised across decades by seasonal moisture cycling (winter melt water carried in on boots, summer humidity migration through the door threshold), and the original fasteners holding the subfloor to the joists have backed off enough that the subfloor cycles under foot traffic. Both conditions transmit movement directly into the bond coat above, and over time that movement reads as popped tiles (tile that has lost adhesion and lifts off the bond coat) and as cracked grout joints. What the 1 inch underlay does: the new plywood sheet adds rigidity to the entire floor assembly, screws through the underlay and into the joists below lock the assembly tight at the joist line, and the underlay surface gives the bond coat a fresh substrate to bond to rather than a moisture-stressed and partially delaminated existing subfloor. Why specifically 1 inch: a 1 inch underlay is thick enough to add meaningful rigidity to a residential floor assembly without raising the floor height beyond the threshold compatibility of the adjacent rooms. A thinner underlay (3/8 or 1/2 inch) might not deliver the rigidity gain needed to prevent tile movement on a high-traffic entry, while a thicker underlay would push the entrance floor height above the adjacent flooring transitions. What this prevents: the most expensive failure mode in residential floor tile is a popped-tile field requiring removal and replacement, and on an entrance floor where the traffic load is concentrated through a narrow corridor of tile, popped tiles tend to spread rapidly across the affected zone. A one-day plywood underlay prep stage at the front of the project prevents a multi-day tile-replacement scope a few years later.

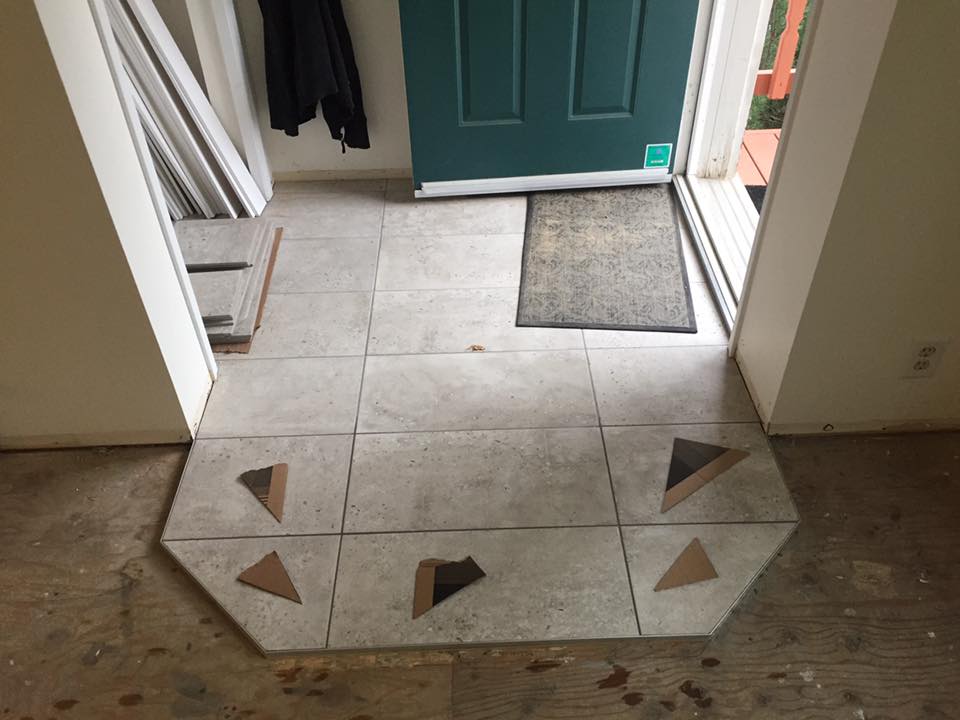

The 12×24 in a Stacked Pattern
The homeowner on this renovation specified a 12 by 24 porcelain laid in a stacked pattern. What a stacked pattern means: the 12 by 24 tiles are laid with every joint perfectly aligned with the joint of the adjacent course, both horizontally and vertically. The result is a continuous grid where the joint lines form unbroken lines across the floor in both directions, rather than the offset pattern of a brick lay or the diagonal pattern of a diamond. Why a stacked pattern: a stacked lay reads as architectural and contemporary, with a strong geometric presence that works particularly well in an entrance where the floor is the first thing a visitor sees and a strong design statement reads as deliberate. The format: a 12 by 24 is a rectangular plank-adjacent tile, and the stacked pattern emphasizes the format by letting the long horizontal joint lines run unbroken across the field. In an entrance zone where the long axis of the floor typically aligns with the path of travel, the long joints reinforce that directional reading. The install discipline: a stacked pattern is unforgiving of layout drift because any cumulative measurement error shows up as a misalignment of the joint lines, and any tile that sits proud or recessed will read as a visible step in the grid. The setter has to keep every joint perfectly aligned with its neighbours in both axes, which demands a centred layout reference, a careful dry-lay, and a tile-by-tile check against the level. The bond coat: the field was set with 253 Gold Laticrete Mortar, a polymer-modified multi-purpose thinset rated for large-format tile on a residential floor application. The bond strength carries the 12 by 24 across the high-traffic entry load, and the polymer modification handles the substrate cycling that even a properly prepped entrance floor sees seasonally.
Why 253 Gold Laticrete on a 12×24 Floor
The bond coat selection for a 12 by 24 large-format tile is governed by the size of the tile and the substrate environment. What 253 Gold delivers: Laticrete 253 Gold is a polymer-modified portland-cement thinset specifically rated for medium-bed installations and large-format tile up to 16 by 16 and beyond. The chemistry maintains its bond coat thickness under the larger tile footprint without the slumping that can occur with a standard thinset, which matters on a 12 by 24 because the bond coat under each tile has to support the larger plan area without producing voids. Why this is the right call for an entrance floor: the entrance sees concentrated foot traffic through a narrow corridor, and the bond coat is what carries the load from the tile into the underlay and the joists below. A properly bonded 12 by 24 over 253 Gold over a 1 inch plywood underlay over the joists is a fully load-rated assembly that handles decades of traffic without movement. The grout: the joints were finished with Prism Grout, the stain-resistant calcium-aluminate cement grout that holds its colour reading across years of cleaning. Why grout matters on a stacked floor: the stacked pattern emphasizes the grid lines because the eye follows them across the floor in both axes. Grout that loses colour or discolours unevenly reads as a defect on a stacked floor faster than it would on a brick lay, because the continuous grout lines are the visual structure of the room. Prism’s colour stability across years of cleaning is the property that protects the stacked layout from looking tired before the tile itself shows wear.
Planning an entrance-floor tile renovation with full underlay prep and a large-format stacked-pattern layout in south Edmonton? Call The Tile Experts at 587-333-9800 or request a quote.
South Edmonton Renovation FAQ
How much does a 12×24 stacked-pattern entrance floor with full plywood underlay prep cost in south Edmonton?
For a project of this scope (1 inch plywood underlay over the existing subfloor with full screw-down to the joists, 12 by 24 porcelain in a stacked pattern with centred layout reference, 253 Gold Laticrete bond coat, full Prism grout finish), plan on 11 to 16 dollars per square foot in tile-scope labour and material, with the underlay prep adding a fixed prep-day cost regardless of total floor square footage.
Why install a 1-inch plywood underlay on a renovation entrance floor?
The existing subfloor in an entrance zone has typically accumulated decades of moisture cycling damage and fastener loosening from the constant traffic load. A fresh 1 inch underlay adds rigidity to the floor assembly, locks tight to the joists below, and gives the bond coat a clean substrate. It prevents the most expensive residential floor failure mode, which is popped tiles spreading across a high-traffic zone.
Why use 253 Gold Laticrete Mortar on a 12×24 tile?
253 Gold is a polymer-modified portland-cement thinset rated for medium-bed installations and large-format tile, with the chemistry to maintain bond coat thickness under the larger tile footprint without slumping. Standard thinset can produce voids under a 12 by 24 because the bond coat under each tile has to support the larger plan area. See our floor tile installation service.
Tile Installation in South Edmonton
South Edmonton runs south of Whyte Avenue and covers a band of established residential neighbourhoods including Strathcona, Garneau, Ritchie, Hazeldean, Bonnie Doon, King Edward Park, and continues south through the older bungalow stock toward Ellerslie. Entrance-floor tile renovations with full underlay prep, large-format stacked layouts, and bond-coat specifications matched to large-format tile are some of the most common projects in this established housing market that is well into its second and third renovation cycles. The Tile Experts install bathrooms, kitchens, floors, custom showers, fireplaces, and feature walls across south Edmonton and the rest of the established residential core, plus the full capital region. Contact us or call 587-333-9800 for a free in-home walkthrough.
